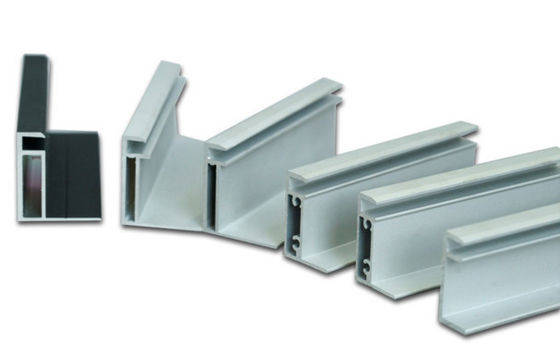

Silvery / Black Anodized Aluminum Frame With Screw Joint / Corner Key Joint

China Silvery / Black Anodized Aluminum Frame With Screw Joint / Corner Key Joint supplier

Large Image :  Silvery / Black Anodized Aluminum Frame With Screw Joint / Corner Key Joint

Product Details:

Place of Origin: China
Brand Name: HT
Certification: CA ,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 ton
Packaging Details: Packed with EP ,Carton ,Pallet or wooden case
Delivery Time: 20days
Payment Terms: T/T ,L/C
Supply Ability: 3000tons each month
Contact Now
Detailed Product Description
Product Name: Aluminum Solar Panel Frame Alloy: 6063,6061,6005
Material: Aluminum Suface Treatment: Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated
Deep Process: Milling, Drilling, Bending,Cutting Temper: T4, T5, T6 ,T66

Silvery / Black Anodized Aluminum Solar Panel Frame With Screw Joint / Corner Key Joint



Hentec Industry is the leading solar solution provider for solar mounting systems .



We design, manufacture solar mounting systems for solar energy projects. As a specialist in ground mount, roof mount, and custom designed specialty solar structures, we focus on providing best-in-class solar racking systems and project management capabilities to serve owners and integrators.


Leveraging more than 15 years of experience in the commercial design-build specialty structures market,Hentec Industry works with its clients to identify the most economical, durable, and robust solar structures. Our services include complete design, signed and sealed engineering drawings, high-tech manufacturing, and end-to-end technical support to help you solve the toughest challenges in the industry.



Material:Aluminum
Alloy :6063,6061,6060,6005
Temper: T3, T4, T5, T6
Deep process:  Milling, Drilling, Bending,Cutting



Description:



Aluminum Extrusion Solar Panel Frame

Aluminum solar frame is widely used as the frame of solar panel, and then it is also called as aluminum solar panel frame. Our aluminum solar frames adopt L connector or screw joint, resulting in well fixed structure with durability. They are of high quality and at low price.



Silvery / Black Anodized Aluminum Frame With Screw Joint / Corner Key Joint
Features:


1) 30*25 suitable for 30-120W solar modules
2) 35*35 suitable for 80-180W solar modules
3) 50*35 suitable for 160-220W solar modules
4) Many other custom made sizes available, such as: 45*35mm, 60*35mm, 46*40mm, 46*50mm, etc.






Specifications :



Product Details

Item Aluminum Frame Extrusion Profile for PV Solar Module
Material Aluminium 6000 series alloy: such as 6063 6005 6061
Temper T5 T6
length 3-6 Meter per piece, or as your inquire
Shape Round,square,flat,hollow,oval,triangle,U-profile,L-profile,T-profile,customized avaiable
Thickness General profile Thickness: 0.7 - 5.0mm
Deep process CNC ,drilling ,milling ,cutting ,bending ,tapping ,welding ,assembling ,punching
Frame Section Size 30mm*35mm ,35mm*35mm ,35mm*40mm ,30mm*46mm ,35mm*45mm ,35mm*50mm etc


Common Specification

Maxpower(W) Cells Type Size ( L * W * H )
140W 156*156P/M 4*9PCS 1476*680*35MM
150W 156*156P/M 4*9PCS 1476*680*35MM
180W 156*156P/M 6*8PCS 1650*836*50MM
195W 125*125P/M 8*10PCS 1340*1050*40MM
200W 156*156P/M 6*9PCS 1476*992*45MM
220W 156*156P/M 6*10PCS 1650*992*50MM
240W 156*156P/M 6*10PCS 1650*992*50MM
245W 125*125P/M 8*12PCS 1600*1050*40MM
250W 125*125P/M 8*12PCS 1600*1050*40MM
260W 156*156P/M 6*12PCS 1956*992*50MM
280W 156*156P/M 6*12PCS 1956*992*50MM


Solar Frame Type
(1) 90°-Angle : fix with screws
(2) 45° -Angle : fix with Corner

Anodizing Quality
Anodizing Quality
Grade Corrosion Resistance Abrasive Resistance
CASS Test Alkaline Sandtrial Abrasion
Hours Grade Dropping coefficientf,g/um
AA10 16 >=9 >=50 >=300
AA15 32 >=9 >=75 >=300
AA20 56 >=9 >=100 >=300
AA25 72 >=9 >=125 >=300

Silvery / Black Anodized Aluminum Frame With Screw Joint / Corner Key Joint



Silvery / Black Anodized Aluminum Frame With Screw Joint / Corner Key Joint



Silvery / Black Anodized Aluminum Frame With Screw Joint / Corner Key Joint



Silvery / Black Anodized Aluminum Frame With Screw Joint / Corner Key Joint



Silvery / Black Anodized Aluminum Frame With Screw Joint / Corner Key Joint



Silvery / Black Anodized Aluminum Frame With Screw Joint / Corner Key Joint





Applications:





Competitive Advantage:



In addition to high quality ,we at Hentec office offer customer complete service .Our aluminum solar frame comes with a 15 year warranty .Maintenance service is also available .
