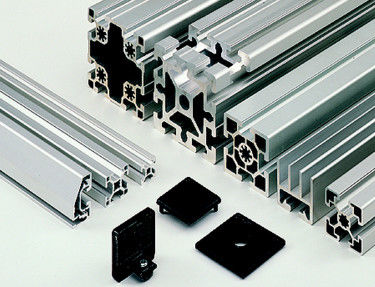

40*40MM Extruded Aluminium Profiles For Industry Assembly Line

China Hentec Industry Co.,Ltd certification
China Hentec Industry Co.,Ltd certification
Thanks a lot for your support for more than 8 years ,we are really appreciate for the good quality of the products and the quality service .

—— James Scott

We have received the goods , they look perfect ,thanks for the help of Team Hentc .

—— Ane Unamuno

Le succès de ce nouveau projet dépend du support de l’équipe HENTEC en termes de technologie de traitement. Merci à HENTEC de nous aider à contrôler les coûts de manière efficace et à répondre à nos exigences en termes de haute qualité. Nous nous réjouissons de notre future collaboration!

—— Yann Pauwels

I'm Online Chat Now

40*40MM Extruded Aluminium Profiles For Industry Assembly Line

40*40MM Extruded Aluminium Profiles For Industry Assembly Line
40*40MM Extruded Aluminium Profiles For Industry Assembly Line

Large Image :  40*40MM Extruded Aluminium Profiles For Industry Assembly Line

Product Details:
Place of Origin: China
Brand Name: HT
Certification: CA ,CE ,ISO14001:2004, ISO9001:2000
Model Number: HTL003
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Packaging Details: Ep paper ,kraft ,pallet
Delivery Time: 20days
Payment Terms: T/T ,L/C
Supply Ability: 100 000ton each month
Detailed Product Description
Product Name: Assembly Line Alloy: 6063,6061
Material: Aluminum Suface Treatment: Powder Spray Coated
Deep Process: Milling, Drilling, Bending,Cutting Temper: T4, T5, T6
High Light:

modular aluminium profile system

,

custom aluminum extrusions

40*40MM Anodized Industrial Aluminium Profile Assembly Line For Office Partition / Machinery



Aluminum Features:


1 ) Industrial aluminum surface after oxidation , the appearance is very beautiful, and dirt

2 ) oil is easy to clean once painted , assembled into products , depending on the load-bearing profiles of different specifications , and aluminum parts using the companion

3 ) does not require welding, more environmentally friendly , and the installation , removal, carry, move very convenient.





Description:



1. Material Aluminium alloy; 6063, 6061, 6082, 6005, T5, T6,
2. Section Shapes I, U, T, C, Z, L, H, square, round, flat, hollow, t-slot and other complicated shapes by custom design.
3. Surface treating Mill/Anodized(oxidation)/Sand blast/Powder coating/Electrophoresis/Wood grain
4. Application 1) - for Window and door frames
3) - for Building curtain glass walls
4) - for Solar panel frames, Solar mounting / roofing brackets
5) - for Industry assembly lines equipment.
6) - for Heatsinks
7) - for LED lighting
8)- other by custom design size and dimension
5. Production lines 1) 5 melting and casting production lines
2) 25 extruding production lines(from 500tons to 4500tons and meet different customer's demands)
3) 6 anodizing and electrophresis production lines
4) 2 powder coating production lines
5) 4 wooden grain production lines
6) 2 heat insulation broken bridge production lines
7) 2 wiredrawing and polishing production lines
6. Characteristic Services 1). OEM Service.
2). Design according to the customers' requirements.
3). More years' professional experience in research, manufacturing
4). Our modern deep processing center can provide machining such as Cutting, punching, drilling, etc.
7. Quality Control We operate the most strict quality control system, the detection is from the material, production process,
To final product, and ensure the product quality and traceability.
8. Process Die design→Die making→Smelting&alloying→QC→Extruding→Cutting→Heat Treatment→
QC→Surface treatment→QC→Welding→Packing→QC→Shipping→After Sale Service
9. Standard GB5237-2008 equal to EN12020-1.2(2001)
10. Payment T/T: 30% for deposit, the balance will be paid before or after shipment
11. Packaging Detail: Inside: Packed with plastic film to protect each piece
Outside: Wrap to be bundles by waterproof craft paper or EPE film. Customized request available




1. Alloy :6063,6061,6005 or according to customer’ s choice
2. Material:Aluminum
3. Suface Treatment: Mill Finished,Anodized ,Electrophoretic coated,Powder spray coated,Fluorocarbon powder spray coated /PVDF Paint, Drawbench,Steel polished,Wood grain coated /Wooden transfer .
4. Deep process:  Milling, Drilling, Bending,Cutting.
5. Application:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.

6. Color:clear, satin, bronze, black, golden, silver, other multicolor
7. Temper: T4, T5, T6 ,T66





Applications:



Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.





Specifications:



1. Primary Technical Data



1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest



2) Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%





40*40MM Extruded Aluminium Profiles For Industry Assembly Line 0





Competitive Advantage:



1) Engineering design and support.

2) Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.

3) High Quality system, strictly inspection during production and whole inspection before package.

4) Good performance, product warranty for 15 years.

40*40MM Extruded Aluminium Profiles For Industry Assembly Line 1
