Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum | Usage: | Electrical Products |
|---|---|---|---|
| Surface: | Anodizing ,Powder Painting | Logo: | Silk Screen |
| Water Proof: | Water Proof | Warranty: | 15years |
| High Light: | aluminum electrical enclosures,extruded aluminum housing |
||
6063 Aluminum Electrical Enclosures / Aluminium Extrusion Heat Sink Enclosure
We are professional in comtomizing different types of aluminum profiles with 15 years experience which are widely used in Industry ,Constrution,Decoration, Furnitures, Windows and doors,.etc. .
We have more than 30000 moulds so far , and your samples or drawings are warmly welcomed to provided to us for customizing !
Description:
| Item | Aluminum Extrusion Channel |
| Material | Alloy 6063, 6061 or according to customer's choice |
| Temper | T4, T5, T6,T66 |
| Surface | Anodize (clear, satin, bronze, black, golden, silver, other multicolor) , electrophoresis, powder coating, PVDF coating, wood grain painting, etc. |
| MOQ | 1 ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container. |
| Profile type | Industry Aluminum profile used in cars, trains machinery ,trailers ,electronics, medical and other industrial filed . |
| Machining | 1. milling; 2. Drilling; 3. Bending; 4. Cutting ... |
| Moulding | 1. Using our moulds, free; 2. Using customer’ s drawing, opening mould fee need to be paid . |
| Certificate | ISO14001:2004, ISO9001:2000 |
| FOB Port | Shanghai, etc. |
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1. Primary Technical Data
1) Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
| 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
| 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
2)Mechanical property
| Alloy | Temper | Tensile strength | Yield strength | Elongation |
| 6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
| T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% | |
| 6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
2. Specifications:
1. Alloy :6063,6061,6005 or according to customer’ s choice
2. Material:Aluminum
3. Suface Treatment: Mill Finished,Anodized ,Electrophoretic coated,Powder spray coated,Fluorocarbon powder spray coated /PVDF Paint, Drawbench,Steel polished,Wood grain coated /Wooden transfer .
4. Deep process: Milling, Drilling, Bending,Cutting.
5. Application:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
6. Color:clear, satin, bronze, black, golden, silver, other multicolor
7. Temper: T4, T5, T6 ,T66
Competitive Advantage:
1) Engineering design and support.
2) Aluminium profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3) High Quality system, strictly inspection during production and whole inspection before package.
4) Good performance, product warranty for 15 years.

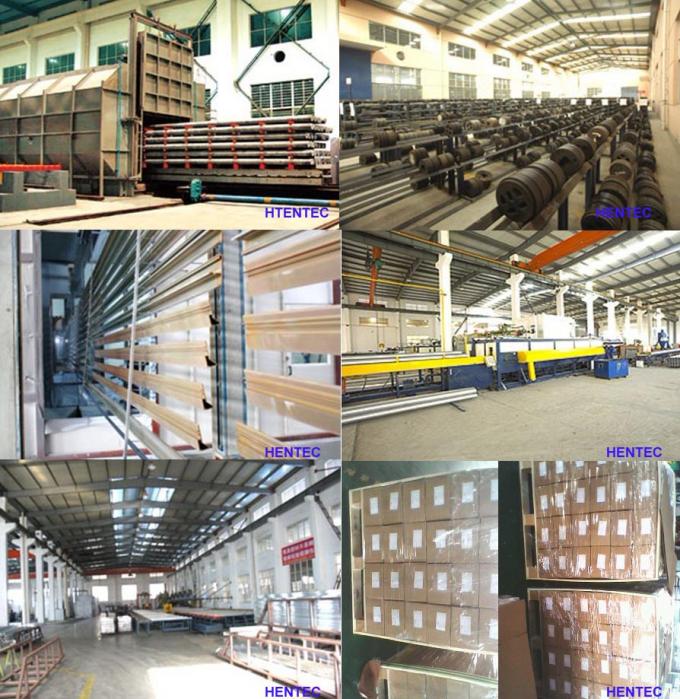

Our facilities:
| Extruder | 600 tons to 4500 tons) |
| Milling Machine | 2 |
| Multifunctional Drilling Machine | 1 |
| Drilling Machine | 5 |
| Auto Saw Machine | 2 |
| Cutting Machine | 10 |
| Punch Press | 12 |
| Surface Oxidation Treatment Line | 1 |
| Metal Lathe | 2 |
| Polish Machine | 6 |
| Heat Treater | 1 |
| Natural Gas Heating | 2 |
| Air Compressor | 1 |
