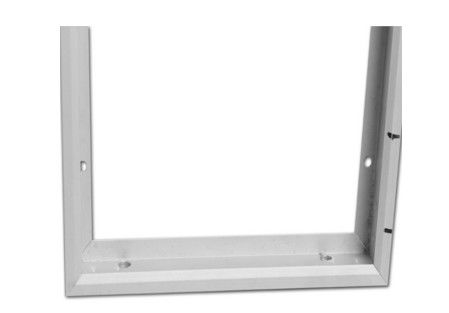

Silvery Anodized Aluminum Solar Panel Frame , 6063 / 6061 , With Finished Machining
----------Ground Solar Mounting System
|Designation:||6 or other series by your demand|
|Description||aluminum profile, aluminum extrusion, aluminum tube, bar, aluminum alloy, aluminum products, aluminum doors and windows, building material|
|Surface Treatment||mill finish(without treatment), polished, anodizing, power coating, sand blasting, electrophoresis etc.|
|Packing||Kraft paper, carton box, protection foam heat contracted plastic film, poly-bag, etc by your demand.|
|Certificates||ISO 9001.CE, SGS,|
|Color||Silver , black ,silver, bronze .champagne, wood grain and so on|
|Shape||Various shapes, parameters and colors available|
|Usuage || industrial etc.,|
|Delivery Detail||10-20days / depend on quantity and drawings|
|Quality||Quality complies with international standard.|
|Design||OEM or ODM is available, pls send us your drawing|
|Feature||High corrosion-resistance, weather-resistance, heat-resistance, alkali-resistance|
1. Easy To Install
2. The simple design and pre-assembled components ensure a quick and easy installation
3. All structure components are comprised of high quality galvanised steel and anodized aluminum alloy, they are designed for a 25 year service life and are backed by 10 year warranty.----------Roof Solar Mounting System1. Unmatched Durability---10 year warranty.
2. Easy To Install---The simple design and pre-assembled components ensure a quick and easy installation.
3. All Weather
Solar panels (photovoltaic modules) aluminum frame

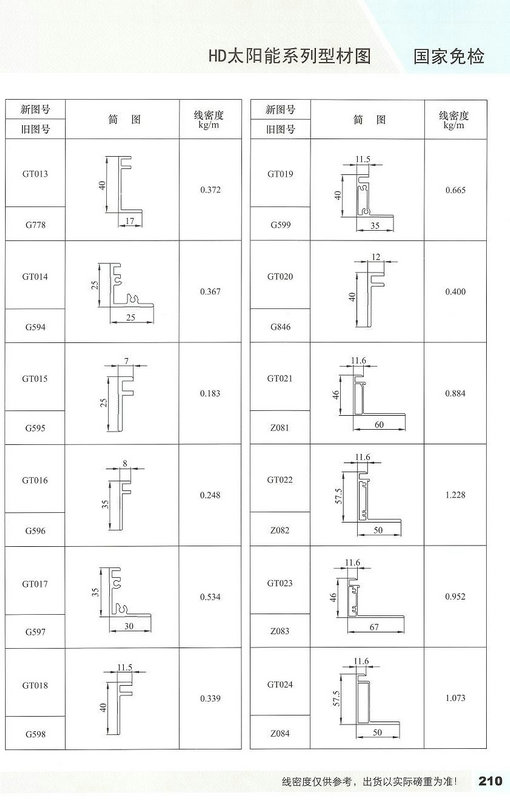

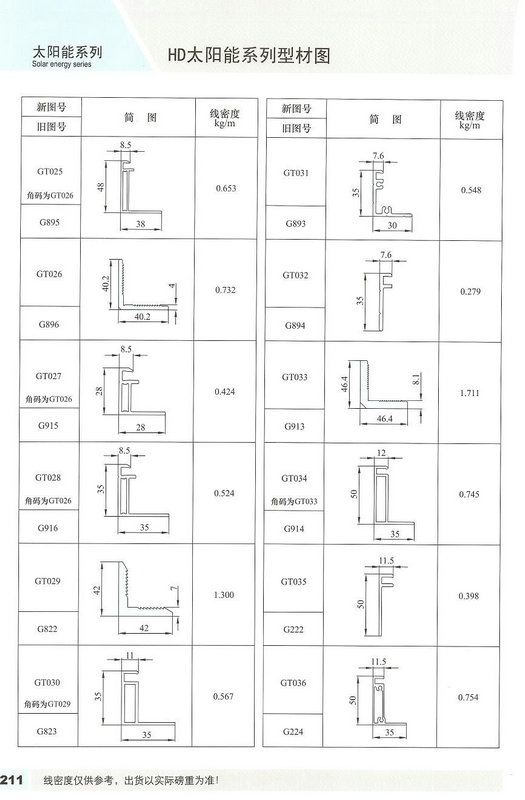

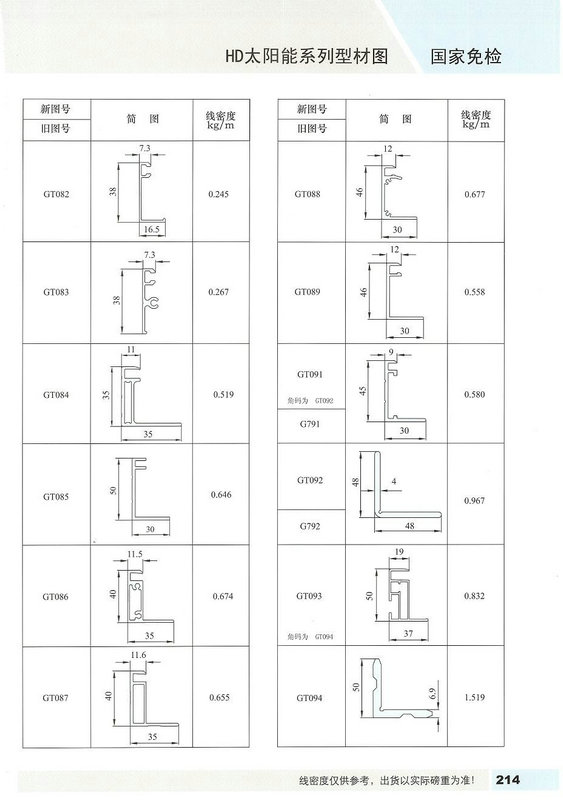

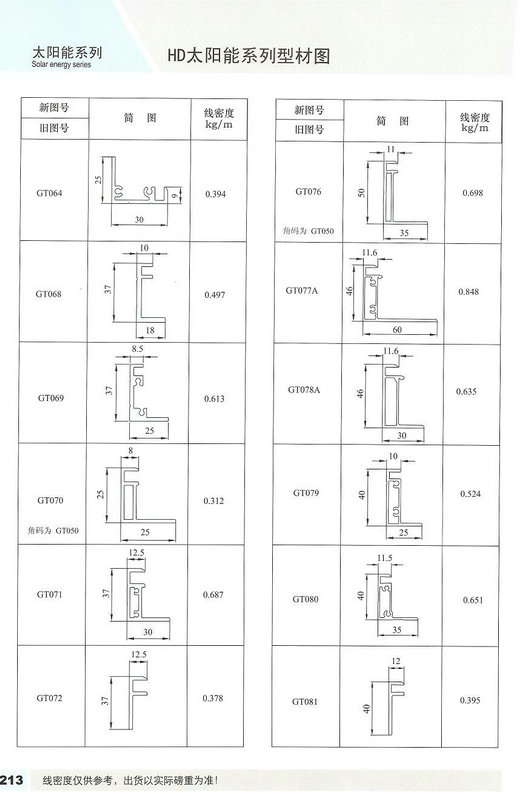

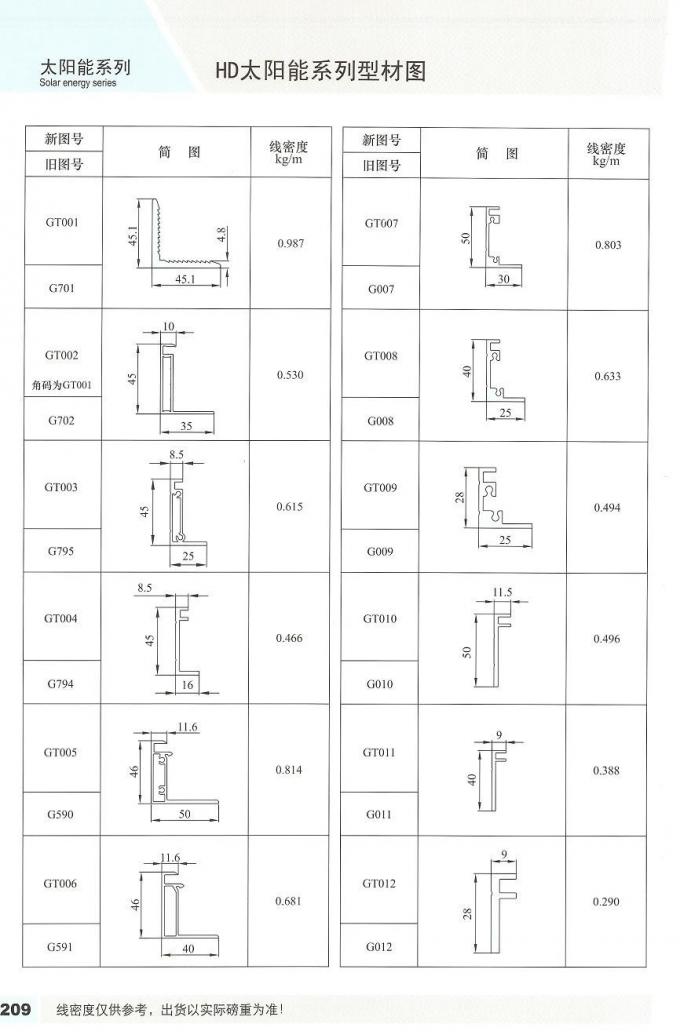

A. Solar module aluminum frame Size Description:
1) 17 * 17, 20 * 20, 23 * 17, 25 * 25, 28 * 25mm, etc., suitable for solar street lamps and other small solar power generation equipment;
2) 30 * 25, 35 * 30mm, suitable for 30-100W solar modules;
3) 35 * 35mm, suitable for 80-180W solar modules, length is generally 1580 * 808mm (the most common frame size);
4) 40 * 35mm, suitable for 120-200W solar modules, length is generally 1580 * 808mm;
5) 45 * 35mm, suitable for 180-250W solar modules, length is generally 1580 * 808 and 1650 * 992mm;
6) 50 * 35mm, suitable for 200-300W solar modules, length is generally 1650 * 992 and 1960 * 992mm;
7) Many other customized according to customer's special sizes, such as 40 * 28mm, 40 * 30mm, 42 * 35mm, 46 * 30mm, 46 * 35mm, 46 * 40mm, 46 * 48mm, 46 * 50mm, 46 * 60mm, 60 * 35mm and so on.
B. Two types:
1) 90 Angle (screw border)
2) 45 corner (Corner Borders)
C. Surface treatment:
1) Anodized (silver, bronze, black, gold, silver, other colors)
3) powder coating, PVDF, polishing, sand blasting
Standard: GB/T5237 - 2004, Q/320281PDW01-2008
Size: According to your design drawings, model
Note: 1. Various sizes for our existing solar frame, without open new mold.
2 aluminum frame is very popular in Europe.
3. We can follow your design drawings requirements.

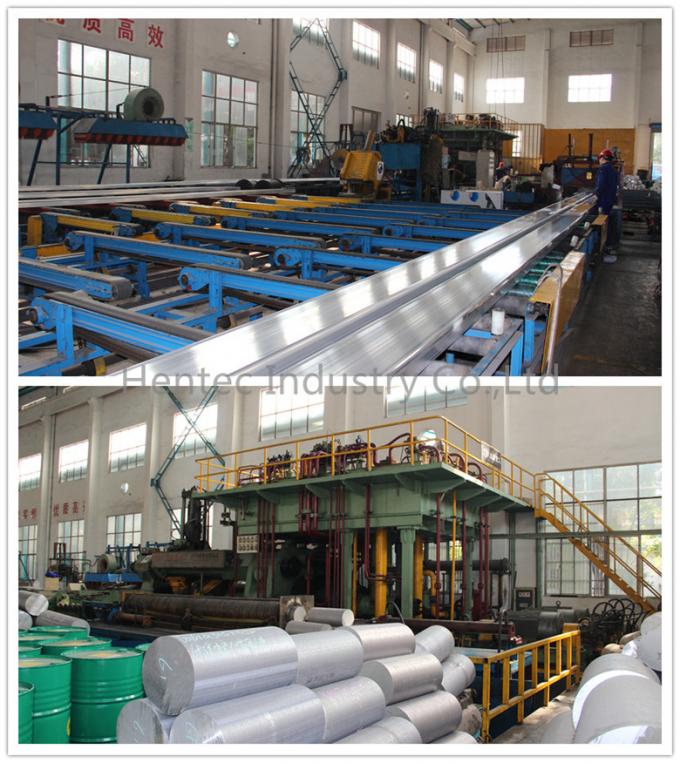

1. 22 years' experiences of manufacturing .
2. STRONG R&D: Help customers finalize the design, strong tool design ability,excellent pressing and surface treament technology.
3.Strict quality management: ISO Administration system.
4. 24 hours on-line communication.Professional, Patient, Flexible.
5. High capacity of manufaturing and wide range of products.
6. Be able to provide secondary fabricating.
7. Small order is accepted.
8. Be able to provide one-stop supply solution.
9. Multiple payment methods: TT, LC. DP,OA.
1) Living house and home building.
2) Commercial building, factory, shopping mall, school, stadium etc.
3) Power station, field operation and some huge engineer construction.
In addition to high quality ,we at Hentec office offer customer complete service .Our aluminum solar frame comes with a 15 year warranty .Maintenance service is also available .
