Product Details:
Payment & Shipping Terms:
|
| Product Name: | Aluminum Heatsink Extrusion Profiles | Alloy: | 6063,6061,6005 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T4, T5, T6 |
| High Light: | extruded aluminium profiles,aluminum extrusion profiles |
||

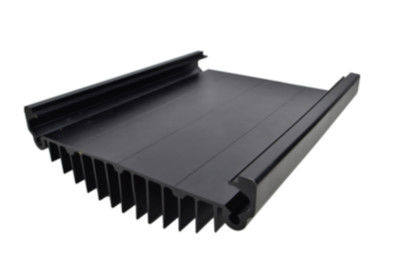

Black Anodized Aluminum Extrusions For Electronics / Electrical Cover / Electronic Enclosure
| Product Name | Aluminum Electrical Shell |
| Material: | Aluminium alloy 6063, 6061, 6082,6060,6005 or according to customer's request |
| Through mechanical processing: | Extruded aluminum, profile cutting, punching, punching, CNC drilling, tapping, CNC milling. |
| Surface treatment: | surface mechanical polishing, sandblasting, anodic oxidation |
| Color Customization: | appearance color can be customized silver, black, gold, gray, And any other custom color |
| Application products: | LED power shell, audio amplifier housing, switching power supply shell, electronic shielding shell, headphone amplifier housing, Aluminum Doors and Windows, doors and windows frame |
| Packing: | Packing 1: plastic bubble bag + carton Packing 2: Blister plastic tray + carton Packaging 3: other packaging methods according to customer requirements packaging |
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1. Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
2. Specifications:
Excellent material for smooth and subtle edges.
Elegant appearance.
Surface treatment: colorful anodized or electrostatic powder coated.
Suitable for constructions and other industrial purposes.
Customized surface finishes are welcome.
Our Advantages:
1. 15+ years experience in providing ONE-STOP customized aluminium extrusion and machining solution; 11+ years of exporting to many countries;
2. ISO: 9001:2008, RoHS, SGS, Reach, D&B
3. 100% new material
4. Competitive prices with short lead-time for both tooling and parts, because we do everything in-house
