Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Fan Blade | Material: | Aluminum |
|---|---|---|---|
| Temper: | T4, T5, T6 | Surface: | Powder Painting |
| Machining: | 1. Milling; 2. Drilling; 3. Bending; 4. Cutting ... | Certificate: | ISO14001:2004, ISO9001:2000 |
| High Light: | exhaust fan blades,palm frond fan blades |
||

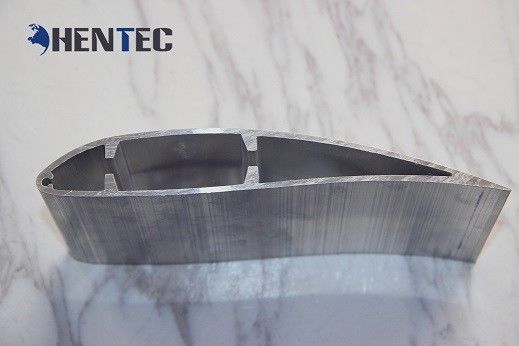

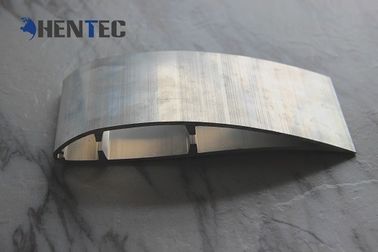

Powder Painting Industrial Fan Blade Aluminum Profile Extrusions High Volume Low Speed
Description:
| Item | Powder Painting Industrial Fan Blade / Industrial Aluminum Profile / High-Volume / Low Speed |
| Material | Aluminium 6000 series alloy: such as 6063 6005 6061 |
| Temper | T4 T5 T6 |
| length | 3-6 Meter per piece, or as your inquire |
| Shape | Round,square,flat,hollow,oval,triangle,U-profile,L-profile,T-profile,customized avaiable |
| Thickness | General profile Thickness: 0.7 - 5.0mm |
| Deep process | CNC ,drilling ,milling ,cutting ,bending ,tapping ,welding ,assembling ,punching |
Specifications:
Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2)Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1)Engineering design and support.
2)Deeply processing of Industrial Fan Blade :cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and whole inspection before package.
4)Good performance, product warranty for 15 years.
Applications:
Industrial Fan Blade used in factory, buildings, trains machinery ,electronics, medical and other industrial filed .
