6005 Anodized Aluminium Extruded Profiles , Assembly Line Extruded Aluminum Profiles

Good quality Aluminum Heatsink Extrusion Profiles for sales
Good quality Aluminum Heatsink Extrusion Profiles for sales
Thanks a lot for your support for more than 8 years ,we are really appreciate for the good quality of the products and the quality service .

—— James Scott

We have received the goods , they look perfect ,thanks for the help of Team Hentc .

—— Ane Unamuno

I'm Online Chat Now

6005 Anodized Aluminium Extruded Profiles , Assembly Line Extruded Aluminum Profiles

China 6005 Anodized Aluminium Extruded Profiles , Assembly Line Extruded Aluminum Profiles supplier

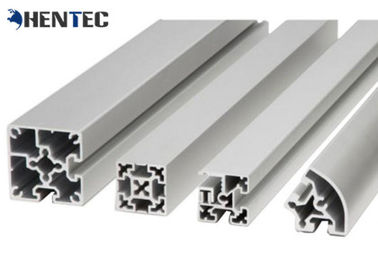

Large Image :  6005 Anodized Aluminium Extruded Profiles , Assembly Line Extruded Aluminum Profiles

Product Details:

Place of Origin: China
Brand Name: HENTEC
Certification: CA ,CE ,ISO14001:2004, ISO9001:2000

Payment & Shipping Terms:

Minimum Order Quantity: 1 ton
Packaging Details: Ep paper ,kraft ,pallet
Delivery Time: 20days
Payment Terms: T/T ,L/C
Supply Ability: 100 000ton each month
Contact Now
Detailed Product Description
Product Name: Industrial Aluminium Profile Alloy: 6063,6061,6005
Material: Aluminum Suface Treatment: Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated,Drawbench,Steel Polished
Deep Process: Milling, Drilling, Bending,Cutting Temper: T3, T4, T5, T6



6005 Anodized Aluminium Extruded Profiles , Assembly Line Extruded Aluminum Profiles



Product Specification

Aolly 6063 6061 6060 6005 6082
Temper T4 T5 T6
Standard DIN AAMA AS CHINAGB
Certification ISO9001: 2008
Surface Finish Mill finish Anodizing Powder Coating Wood Grain Electrophoresis Polished Brushed
Color Anodizing Silver, bronze, champagne, titanium, nickel, golden yellow, etc.
Anodizing thickness is up to 25um
Powder Coating White, black, bronze, grey, green, etc
Powder coating thickness is more than 60um
Electrophoresis Silver, nickel, golden yellow, black, champagne, etc
Polishing Silver, nickel, golden yellow, black, etc
Brushing Silver, nickel, golden yellow, black, bronze, etc
Machining Cutting, punching, drilling, bending, weld, mill, CNC, etc.
OEM customized aluminium profiles are available.


1.Alloy :6063,6061,6005 or according to customer’ s choice
2.Material:Aluminum
3.Suface Treatment: Mill Finished,Anodized ,Electrophoretic coated,Powder spray coated,Fluorocarbon powder spray coated /PVDF Paint, Drawbench,Steel polished,Wood grain coated /Wooden transfer .
4.Deep process:  Milling, Drilling, Bending,Cutting.
5.Application:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.

6.Color:clear, satin, bronze, black, golden, silver, other multicolor
7.Temper: T4, T5, T6 ,T66



 6005 Anodized Aluminium Extruded Profiles , Assembly Line Extruded Aluminum Profiles





Applications:



Mainly used for industrial production , such as automation equipment , enclosure of the skeleton and the companies according to their own customized mold machinery and equipment , such as assembly line conveyor , hoist, dispenser, testing equipment, shelves , etc., electronic machinery industries and clean room with a gain majority.





6005 Anodized Aluminium Extruded Profiles , Assembly Line Extruded Aluminum Profiles



Specifications:



1.Primary Technical Data



1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest



2)Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%





6005 Anodized Aluminium Extruded Profiles , Assembly Line Extruded Aluminum Profiles





Competitive Advantage:



1)Engineering design and support.

2)Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.

3)High Quality system, strictly inspection during production and whole inspection before package.

4)Good performance, product warranty for 15 years.



 6005 Anodized Aluminium Extruded Profiles , Assembly Line Extruded Aluminum Profiles
