6063 / 6061 Standard Aluminum Extrusion Profiles Anodizing / Electrophoresis

China 6063 / 6061 Standard Aluminum Extrusion Profiles Anodizing / Electrophoresis supplier
6063 / 6061 Standard Aluminum Extrusion Profiles Anodizing / Electrophoresis supplier 6063 / 6061 Standard Aluminum Extrusion Profiles Anodizing / Electrophoresis supplier

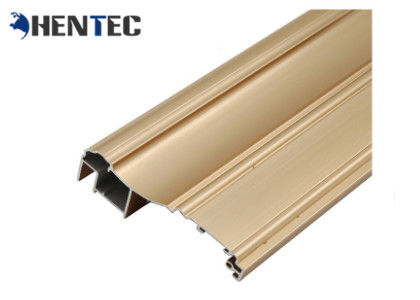

Large Image :  6063 / 6061 Standard Aluminum Extrusion Profiles Anodizing / Electrophoresis

Product Details:

Place of Origin: China
Brand Name: HENTEC
Certification: CA ,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 ton
Packaging Details: Ep paper ,kraft ,pallet
Delivery Time: 20days
Payment Terms: T/T ,L/C
Supply Ability: 100 000ton each month
Contact Now
Detailed Product Description
Product Name: Aluminum Extrusion Rectangular Tube Alloy: 6063,6061,6005
Material: Aluminum Suface Treatment: Mill Finished,Anodized,etc
Temper: T4, T5, T6 ,T66 Application: Buildings,commercial,industrial



6063 / 6061 Standard Aluminum Extrusion Profiles Anodizing / Electrophoresis




Our 4500T grade extrusion machine enable us to produce any section within 400*150mm and φ360.
Your drawings are definitely welcomed.
Price indication: basic aluminium ingot, extrusion cost, surfacing cost and extra.
We also supply fully assembled premium grade window&door systems.



Information:
1. Material: Aluminium alloy 6063, 6061.
2. Temper: T5, T6.
3. Quality standard: DIN; AAMA; AS/NZS; CHINAGB.
4. Surface treatment: Mill finish, anodized, powder coated, wood grain, polished, brushed, electrophoresis, etc.
5. Color avalilable: Anyone is available based on your color samples.
6. Packing details: Shrinking film; Plastic & kraft paper; Wooden pallet
Carton packing; By customer's requirements.





Description:



Item

 Construction Aluminum Profile

Material

Alloy 6063, 6061 or according to customer’ s choice

Temper

T3, T4, T5, T6

Surface

Anodize (clear, satin, bronze, black, golden, silver, other multicolor) , electrophoresis, powder coating, PVDF coating, wood grain painting, etc.

MOQ

1  ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.

Profile type

Industry Aluminum profile used in cars, trains machinery ,trailers ,electronics, medical and other industrial filed .

Machining

1. milling; 2. Drilling; 3. Bending; 4. Cutting ...

Moulding

1. Using our moulds, free; 2. Using customer’ s drawing, opening mould fee need to be paid .

Certificate

ISO14001:2004, ISO9001:2000

FOB Port

Shanghai, etc.







Applications:



Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.





Specifications:



1) Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest



2) Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%







Competitive Advantage:



1) Engineering design and support.

2) Aluminium profiles deeply processing:cutting,punching,drilling,milling,and fabricating.

3) High Quality system, strictly inspection during production and whole inspection before package.

4) Good performance, product warranty for 15 years.

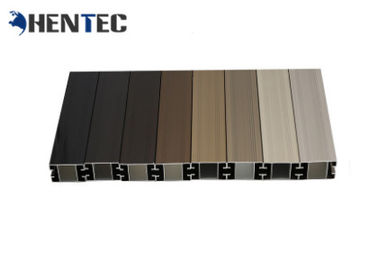

6063 / 6061 Standard Aluminum Extrusion Profiles Anodizing / Electrophoresis

Aluminum profile production process:


It mainly includes three processes of casting, extrusion and coloring (coloring mainly includes: oxidation, electrophoretic coating, fluorocarbon coating, powder coating, wood grain transfer, etc.).
1. Melting and casting is the first process of aluminum production.
The main process is:
(1) Ingredients: Calculate the amount of various alloy components according to the specific alloy grades that need to be produced, and reasonably match various raw materials.
(2) Smelting: The prepared raw materials are added to the melting furnace for melting according to the process requirements, and the impurities and gases in the melt are effectively removed by degassing and slag refining means.
(3) Casting: The molten aluminum liquid is cooled and cast into various round casting rods under a certain casting process condition through a deep well casting system.
2. Extrusion:
Extrusion is the means of profile forming. Firstly, the mold is designed and manufactured according to the section of the profile product, and the heated round cast rod is extruded from the mold by an extruder. The commonly used grade 6063 alloy is also subjected to an air-cooling quenching process and an artificial aging process after extrusion to complete the heat treatment strengthening. Different grades of heat treatable reinforced alloys have different heat treatment regimes.


3. Coloring (here mainly on the oxidation process)
Oxidation: The extruded aluminum alloy profile has a low surface corrosion resistance and must be surface treated by anodizing to increase the corrosion resistance, wear resistance and appearance of the aluminum.
The main process is:


(1) Surface pretreatment: The surface of the profile is cleaned by chemical or physical means to expose a pure substrate to facilitate the obtaining of a complete and dense artificial oxide film. It is also possible to obtain a specular or matt (matte) surface by mechanical means.
(2) Anodizing: After surface pretreatment, under certain process conditions, the surface of the substrate is anodized to form a dense, porous, strong adsorption film.
(3) Sealing: The pores of the pores of the porous oxide film formed by anodization are closed, so that the oxide film is prevented from being contaminated, and the corrosion resistance and wear resistance are enhanced. The oxide film is colorless and transparent. By using the strong adsorption property of the oxide film before sealing, some metal salts are adsorbed and deposited in the pores of the film, so that the appearance of the profile shows many colors other than the natural color (silver white), such as black, bronze, Gold and stainless steel.
