Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fan Blade | Material: | Aluminium |
|---|---|---|---|
| Temper: | T4, T5, T6 | Surface: | Anodizing |
| Machining: | 1. Milling; 2. Drilling; 3. Bending; 4. Cutting ... | Certificate: | ISO14001:2004, ISO9001:2000 |
| High Light: | replacement fan blade,exhaust fan blades |
||

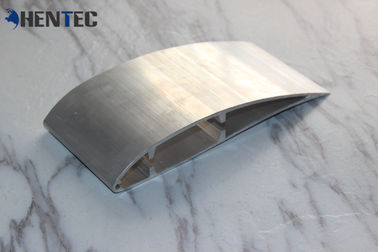

Anodizing Surface Air Coller Metal Fan Blades For Ceiling Fans For Ceiling Fan Profile
Description:
| Aluminum alloy | General alloy:6063,6061,6005,6060,6082 etc. |
| Temper | T4,T5,T6,T66 etc |
| Standard | GB5237-2008 Chinese Standard |
| Surface Finish | Mill finish |
| Sandblasting | |
| Polishing | |
| Brushing | |
| Anodizing:Normal Color , Customized Color | |
| Electrophoresis:Normal Color , Customized Color | |
| Power coating: Normal Color , Customized Color | |
| Fluorocarbon Coating/PVDF Coating: Normal Color, Customized Color | |
| Fabrication Abilities | Precious Cutting,Drilling,Tapping,Milling,Punching,Bending,Welding.etc |
| Payment terms | 30% deposit before starting order,70% Balance before shipping by TT. |
| Packing | EPE,Kraft Paper,Protect film,Shrink film,Wooden case |
| Production time | 15-30days after sample confirmation & payment arrival |
Specifications:
Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2)Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1)Engineering design and support.
2)Deeply processing of Industrial Fan Blade :cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and whole inspection before package.
4)Good performance, product warranty for 15 years.
Applications:
Industrial Fan Blade used in factory, buildings, trains machinery ,electronics, medical and other industrial filed .
