Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Aluminium Profile | Alloy: | 6063,6061,6005 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated，Drawbench,Steel Polished |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T3, T4, T5, T6 |
| High Light: | aluminum extrusion profiles,aluminium extruded profiles |
||

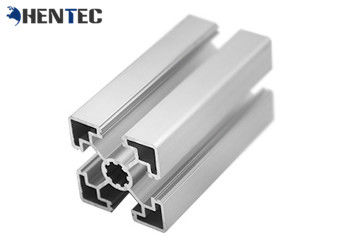

6063 Anodized Aluminium Extruded Profiles , Assembly Line Extruded Aluminum Profiles
| Product Description | |
| Item | 6063 Anodized Aluminium Extruded Profiles , Assembly Line Extruded Aluminum Profiles |
| Material | 6063/6063A/6061 |
| Temper | T4 T5 T6 |
| Size/Thickness | General aluminum profiles thickness from 0.7-4.0mm, length from 3m-6.4m or customized availble; Anodize protection Thickness from 8-18um, powder coating from 40-100um. |
| Shape | Customized, rectangual, round, square |
| Application | Production Line , Machine and so on |
| Suface treatment | Powdering coating |
| Colors | Anodize, powdering coating and customized availble |
| MOQ | 500 kgs for each item |
| Packing Details | Packing with plastic protective film inside; Plastic film or craft paper outside |
| Delivery time | Developing and sample testing: 15-17 days; 2. Production completed: 25-30days after sample is comfirmed by customers |
| FOB Port | SHANGHAI |
| Payment | T/T, L/C |
| Settlement term | FINAL ACTUAL WEIGHT OR THEORY WEIGHT |
1.Alloy :6063,6061,6005 or according to customer’ s choice
2.Material:Aluminum
3.Suface Treatment: Mill Finished,Anodized ,Electrophoretic coated,Powder spray coated,Fluorocarbon powder spray coated /PVDF Paint, Drawbench,Steel polished,Wood grain coated /Wooden transfer .
4.Deep process: Milling, Drilling, Bending,Cutting.
5.Application:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
6.Color:clear, satin, bronze, black, golden, silver, other multicolor
7.Temper: T4, T5, T6 ,T66
Applications:

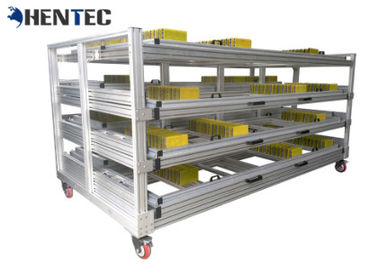

Mainly used for industrial production , such as automation equipment , enclosure of the skeleton and the companies according to their own customized mold machinery and equipment , such as assembly line conveyor , hoist, dispenser, testing equipment, shelves , etc., electronic machinery industries and clean room with a gain majority.
Specifications:
1.Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2)Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1)Engineering design and support.
2)Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and whole inspection before package.
4)Good performance, product warranty for 15 years.
