6063 / 6061 / 6082 Solar Roof Mounting Systems Aluminum Extrusion Shapes Middle Clamp

China 6063 / 6061 / 6082 Solar Roof Mounting Systems Aluminum Extrusion Shapes Middle Clamp supplier

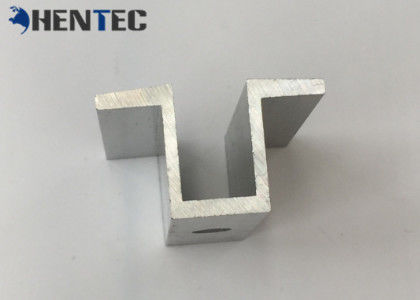

Large Image :  6063 / 6061 / 6082 Solar Roof Mounting Systems Aluminum Extrusion Shapes Middle Clamp

Product Details:

Place of Origin: China
Brand Name: HENTEC
Certification: CA , CE
Model Number: MID CLAMP
Application: buildings,commercial,industrial
Product Name: Mid Clamp

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Packaging Details: Carton and pallet
Delivery Time: 20days
Payment Terms: T/T ,L/C
Supply Ability: 100 000pcs per month
Contact Now
Detailed Product Description
Alloy: 6063,6061,6082,6005 Material: Aluminium
Suface Treatment: Mill Finished,Anodized,etc Temper: T5, T6



6063 / 6061 / 6082 Solar Roof Mounting Systems / Aluminum Middle Clamp




 Advantage :



1.Enables easy,fast and cost-effective installation.
2. Flexible post spacing withstands different wind&snow loads.
3. High quality material in Aluminum and SUS 304.
4. Highly corrosion resistant surface treatment.
5. Screws and nuts go with every componts needed.
6. Fasteners and rail nut fully configured to save extra parts purchasing.
7. Mechanical calculation and reliability tested to ensure highset product quality.
8. 12-25 years system and structural guarantee.

Product Specification



Item Aluminum Middle Clamp
material Aluminium 6000 series alloy: such as 6063 6005 6061
Temper T5 T6
Size 3m - 6m per piece ,or customized
Shape round,square,flat,hollow,oval,triangle,U-profile,L-profile,T-profile,customized avaiable


Surface treatment


Surface truement Mill-finish,anodized,powder,coated,electropheresis,brushed
Anodized Color Silver,black,chanpagne,bronze,gold or customized
Anodized thickness 8 - 25um
Electrpheresis color Silver,black,chanpagne,bronze,gold or customized
Powder coated Color All color by Raul ,or customized
Powder coated thickness 40 - 120um
Wood grain customized
Guarantee surface color can be stable for 10 - 20years indoor using


Packing

Bundles Packing Inside: packed with plastic protective film to protect each piece
Outside: wrap to be bundles by waterproof craft paper or EPE film
Carton packing Inside: each pcs pack in one plastic bag;
Outside: Numbers of quantity put in one carton.
Wood Pallet packing Inside: Bundles or cartons packing
Outside: Numbers of bundles or cartons laden on one wood pallet
Customized requirement Customized packing requirement available


Other service details


MOQ 200kgs for each item ;Usually 13 - 15tons for a 20Gp ;25 - 28tons for a 40HQ
OEM service Drawing , sample or design service offer by customer
Production Capacity 80 000tons annually
Deep process CNC ,drilling ,milling ,cutting ,bending ,tapping ,welding ,assembling ,punching
Brand Name Hentec
Certificatesand Standard ISO9001 - 2000
Delivery time

Die developing and sample testing :12 - 18days ;
Mass production :20 - 30days after confirming sample by buyer

Payment Terms T/T 30% for deposit ,balance before delivery
FOB port Shanghai
Settlement Terms charge by final actual weight or by drawing theoretical weight



6063 / 6061 / 6082 Solar Roof Mounting Systems Aluminum Extrusion Shapes Middle Clamp




Features of mounting system
1.Widely Application
The structure is 100% made of anodized aluminum/galvanized steel,with the quality of corrosion-resistance,light-weight andstrong intensity. It can be used in extremely bad installation condition.

2.Strong Compatibility
The structure can not only fit for different PV kits, but also work with different PV arrangements which can be interchange randomly.

3.Safety and Reliability
Load-bearing,wind resistance and seismic resistance has been given sufficient consideration. All of these functions have beentested extremely, which will ensure the safety of the system.

4.Easy Installation
Most of the parts can be pre-assembled on factory, which not only can to save your install time, but also your cost.

5.Flexibility
Considering the construction error, the structure has been well-design that make it can adjust flexibly.

6.Warranty
10-year warranty for the mounting system and 25 years service time.


6063 / 6061 / 6082 Solar Roof Mounting Systems Aluminum Extrusion Shapes Middle Clamp

Specifications:

Part No .

Description

Package

HT-MC-35

Mid clamp 35mm

100sets/pack

HT-MC-40

Mid clamp 40mm

100sets/pack

HT-MC-45/46

Mid clamp 45/46mm

100sets/pack

HT-MC-50

Mid clamp 50 mm

100sets/pack


      6063 / 6061 / 6082 Solar Roof Mounting Systems Aluminum Extrusion Shapes Middle Clamp
