Product Details:
Payment & Shipping Terms:
|
| Product Name: | Aluminum Extrusion Profile | Alloy: | 6063,6061,6005 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized，etc |
| Temper: | T4, T5, T6 ,T66 | Application: | Buildings,commercial,industrial |
| High Light: | extruded aluminum shapes,aluminium profile extrusion |
||
Customized Sections / Construsion Aluminum Profile , 6063 / 6061 / 6060 / 6082
Our 4500T grade extrusion machine enable us to produce any section within 400*150mm and φ360.
Your drawings are definitely welcomed.
Price indication: basic aluminium ingot, extrusion cost, surfacing cost and extra.

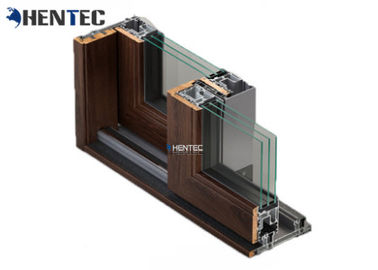

We also supply fully assembled premium grade window&door systems
1. Alloy :6063,6061,6005 or according to customer’ s choice
2. Material:Aluminum

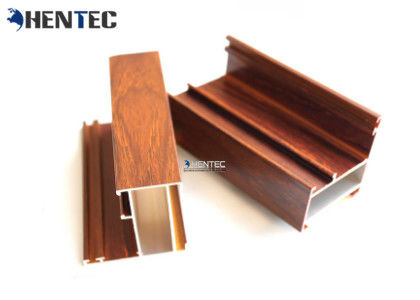

3. Suface Treatment: Mill Finished,Anodized ,Electrophoretic coated,Powder spray coated,Fluorocarbon powder spray coated /PVDF Paint, Drawbench,Steel polished,Wood grain coated /Wooden transfer .
4. Deep process: Milling, Drilling, Bending,Cutting
Description:
| Material | Aluminum alloy 6063,6061,6005,6060,6082 |
| Temper | T4,T5,T6,T66 |
| Surface | Anodized Electrophoresis Powder coating PVDF coating Wood grain painting Brushed |
| Color | Silver White Bronze Gold Black Champagne Or customized |
| Film Thickness | Anodized:12-25 μm Powder coating:40-80 μm |
| Length | ≤ 7.2m, according to customer's request |
| Standard | GB,JIS,AAMA,BS,EN,AS/NZS,AA |
| Certification | ISO9001,ISO14000 |
| Production Capacity | 5000 tons monthly, 300000 annually |
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1. Primary Technical Data
1) Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1) Engineering design and support.
2) Aluminium profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3) High Quality system, strictly inspection during production and whole inspection before package.
4) Good performance, product warranty for 15 years.
