Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Aluminium Profile | Alloy: | 6063 6061 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Anodizing / Powder Painting |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T5, T6 |
| High Light: | modular aluminium profile system,aluminium extrusion frame system |
||

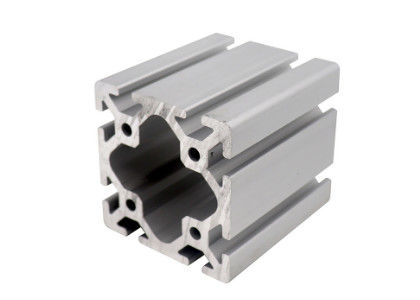

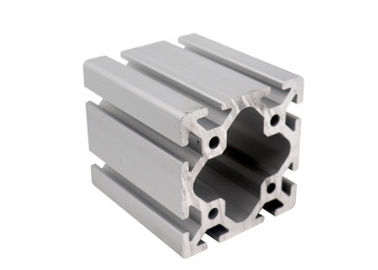

6063 / 6061 Aluminum Assembly Line / Connector / Aluminum T-Slot Bracket
(1).Suitable for industry,architecture,transportation and so on.
(2).20 years warranty.
(3).High corrosion resistance.
(4).5-10 years weather resistance.
(5).Good wear resistance & anti-scratch.
(6).Size customized.
| Product Name | Industrial aluminium profile/ aluminum extrusion |
| Profile Material | 6063 aluminium alloy |
| Temper | T5 T6 |
| Surface treatment | Mill finish, powder coating, anodizing, wooden grain coating, polishing, eletrophoresis, PVDF, sanding blasting, etc. |
| The option of Profile | 15/20/30/40/60/80/90/100 series etc. |
| Slot width | 6MM, 8MM, 10MM |
| Color | Natural silver anodised, can be customised. |
| Surface | Mill finish, Anodizeding, Sand Blasting, Powder coating, etc. |
| Deep processing | Cutting, Drilling, Treading, Bending, etc. |
| Application | Building & Construction, Industry, Machinery, Transportation, Electrical & Energy, Machinery, Radial profiles for LED cooling, Non-standard Automation, Structure Framing, etc |
| Certification | ISO9001 |
| OEM & ODM | Acceptable |
| Shipping Term | EXW, FOB, C&F or others can be discussed. |
Applications:
Mainly used for industrial production , such as automation equipment , enclosure of the skeleton and the companies according to their own customized mold machinery and equipment , such as assembly line conveyor , hoist, dispenser, testing equipment, shelves , etc., electronic machinery industries and clean room with a gain majority.
Specifications:
1.Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2)Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1)Engineering design and support.
2)Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and whole inspection before package.
4)Good performance, product warranty for 15 years.
