Product Details:
Payment & Shipping Terms:
|
| Product Name: | Aluminum Heatsink Extrusion Profiles | Alloy: | 6063,6061,6005 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T4, T5, T6 |
| High Light: | extruded aluminium profiles,aluminum extrusion profiles |
||

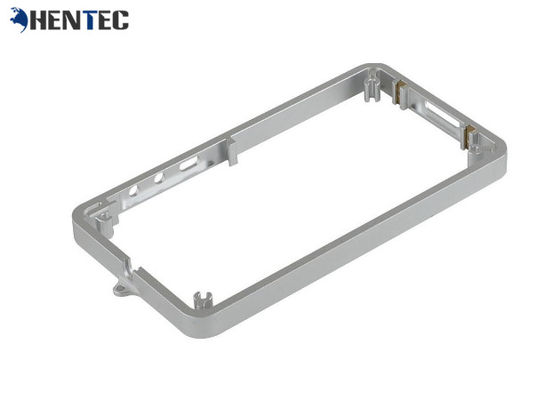

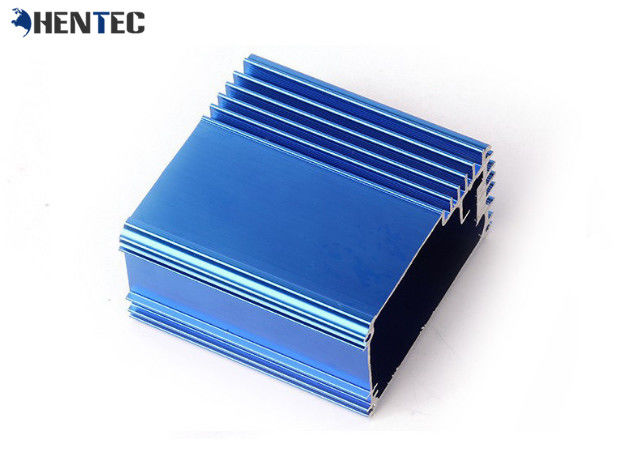

Anodized Aluminum Extrusions For Electronics / Electrical Shell
| Brand Name | Hentec |
| Material | 6063,6005,6061,6060 etc |
| Thickness | General profile thickness:0.8-5.0 mm; Anodized protection thickness:8-25 um; Powder coating color thickness 40-120 um. |
| Diameter | 5-800mm |
| Color | Silver, bronze, black,gold, blue, grey, champagne, bright, as your requests. |
| Templer | T4 T5 T6 T66 |
| Shape | square, flat, round, hollow, oval, triangle, U-profiles, L-profiles, T-profiles, H-profiles, customized available |
| Surface Treatment | Mill finish, anodic oxidation, powder coating, eletrophoresis, PVDF coating etc . |
| Products Classification |
1) General aluminum profiles: various shapes of pipes and tubes, angles, T or U shapes etc. |
| 2) Industrial aluminum profiles: Heat sink, enclosures of chargers closet frame, furniture frames, LED lighting, Guide Rail etc. |
|
| 3) Construction aluminum profiles: Aluminum doors & windows, Sliding Windows, Roller shutter door, Curtain track |
|
| 4) OEM & ODM: accept customers' own designs and drawings of aluminum products |
|
| Deep processing: | Cutting, punching, drilling, tapping, milling, bending, welding etc. |
| Manufacture technological process |
Aluminum ingot → Melting and casting → Extrusion → Surface Treatment → Acceptance test → Packing → Warehouse → Delivery |
| Certification | ISO 9000; ISO 9001; ISO 14000; CQC; RoHS |
| Markets we sold | Germany, North America, Africa, and European countries and area |
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1. Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
2. Specifications:
Excellent material for smooth and subtle edges.
Elegant appearance.
Surface treatment: colorful anodized or electrostatic powder coated.
Suitable for constructions and other industrial purposes.
Customized surface finishes are welcome.
Our Advantages:
1. 15+ years experience in providing ONE-STOP customized aluminium extrusion and machining solution; 11+ years of exporting to many countries;
2. ISO: 9001:2008, RoHS, SGS, Reach, D&B
3. 100% new material
4. Competitive prices with short lead-time for both tooling and parts, because we do everything in-house
