Hentec Industry Co.,Ltd
Home ProductsAluminum Heatsink Extrusion Profiles

Anodized Aluminum Heatsink Extrusion Profiles , Standard Aluminum Extrusion Profiles

China Hentec Industry Co.,Ltd certification
China Hentec Industry Co.,Ltd certification
Thanks a lot for your support for more than 8 years ,we are really appreciate for the good quality of the products and the quality service .

—— James Scott

We have received the goods , they look perfect ,thanks for the help of Team Hentc .

—— Ane Unamuno

Le succès de ce nouveau projet dépend du support de l’équipe HENTEC en termes de technologie de traitement. Merci à HENTEC de nous aider à contrôler les coûts de manière efficace et à répondre à nos exigences en termes de haute qualité. Nous nous réjouissons de notre future collaboration!

—— Yann Pauwels

I'm Online Chat Now

Anodized Aluminum Heatsink Extrusion Profiles , Standard Aluminum Extrusion Profiles

Anodized Aluminum Heatsink Extrusion Profiles , Standard Aluminum Extrusion Profiles
Anodized Aluminum Heatsink Extrusion Profiles , Standard Aluminum Extrusion Profiles Anodized Aluminum Heatsink Extrusion Profiles , Standard Aluminum Extrusion Profiles

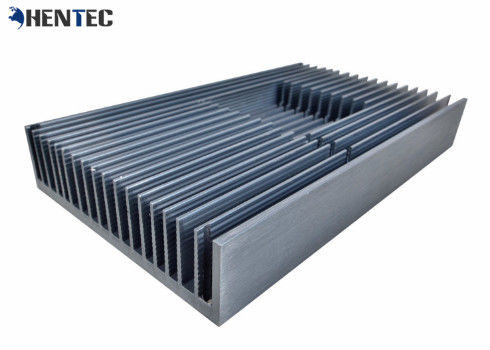

Large Image :  Anodized Aluminum Heatsink Extrusion Profiles , Standard Aluminum Extrusion Profiles

Product Details:
Place of Origin: China
Brand Name: HENTEC
Certification: CA ,CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Packaging Details: Ep paper ,kraft ,pallet
Delivery Time: 20days
Payment Terms: T/T ,L/C
Supply Ability: 100 000ton each month
Detailed Product Description
Product Name: Aluminum Heatsink Extrusion Profiles Alloy: 6063,6061,6005
Material: Aluminum Suface Treatment: Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated
Deep Process: Milling, Drilling, Bending,Cutting Temper: T4, T5, T6 ,T66
High Light:

heatsink extrusion profiles

,

aluminium extrusion heat sink profiles





Anodized Aluminum Heat Sink Extrusion Profiles , Standard Aluminum Extrusion Profiles




 Our Advantages:
1. 17+ years experience in providing ONE-STOP customized aluminium extrusion and machining solution; 11+ years of exporting to 40+ countries;
2. ISO: 9001:2008, RoHS, SGS, Reach, D&B

4. 100% new material
5. Competitive prices with short lead-time for both tooling and parts, because we do everything in-house
6. Effective and strong technical support (30+ engineers) and excellent sales services .
7. Sufficient production capacity (22 extrusion lines; 3+ CNC machines).
8. Efficient communication (48-hour quote lead time).





Production Information




Alloy:
6063 6061 6060 6005 6082
Temper : T5 T6 T4
Standard: DIN AAMA AS CHINAGB
Certification: ISO9001: 2008.
Surface Finish: Mill finish Anodizing Powder Coating Wood Grain Electrophoresis Polished Brushed
Color: Anodizing: Silver, bronze, champagne,  golden , etc.
Anodizing thickness is up to 25um.
Powder Coating: White, black, bronze, grey, green, etc .
Powder coating thickness is more than 60um.
Electrophoresis: Silver, nickel, golden yellow, black, champagne, etc
Polishing Silver, nickel, golden yellow, black, etc
Brushing: Silver, nickel, golden yellow, black, bronze, etc
Machining: Cutting, punching, drilling, bending, weld, mill, CNC, etc.
OEM customized aluminium profiles are available.


Technology Supports

  1. Engineering Design.
  2. Quality Standard: China GB, according to the Drawing and the Customer's Details.
  3. Auto CAD.




Specifications:
1. Primary Technical Data
1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest


2) Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%


6060 6061 extruded aluminum heatsink for Led Light ROHS / SGS
Competitive Advantage:
We can offer professional Manufacturing and exporting service, OEM/ODM for Metal & Plastic parts in China. All the parts manufactured by CNC Lathe & Milling Machine Center.
     Anodized Aluminum Heatsink Extrusion Profiles , Standard Aluminum Extrusion Profiles 1
