Product Details:
Payment & Shipping Terms:
|
| Product Name: | Aluminum Heatsink Extrusion Profiles | Alloy: | 6063,6061,6005 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T4, T5, T6 |
| High Light: | heatsink extrusion profiles,aluminium heatsink extrusion |
||

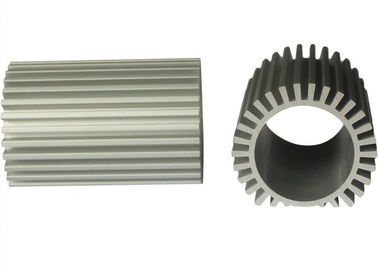

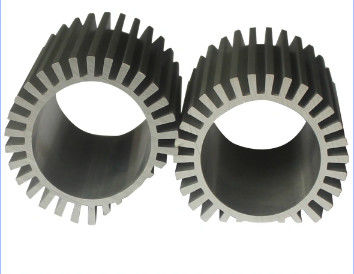

Sunflower Heat Sink / Aluminum Heatsink Extrusion Profiles For Led Light
Our Advantages:
1. 17+ years experience in providing ONE-STOP customized aluminium extrusion and machining solution; 11+ years of exporting to 40+ countries;
2. ISO: 9001:2008, RoHS, SGS, Reach, D&B
3. 100% new material
4. Competitive prices with short lead-time for both tooling and parts, because we do everything in-house
5. Effective and strong technical support (30+ engineers) and excellent sales services .
6. Sufficient production capacity (22 extrusion lines; 3+ CNC machines).
| Material | 6000 series Aluminium |
| Temper | T4, T5, T6 |
| Size / Thickness | General profiles thickness from 0.8 to 5.0mm, length from 3m-6m or customized available; Anodize protection film thickness from 8~25 um, powder coating from 40 ~ 120 um. |
| Shape | square, round, rectangular, special shape customized |
| Application | - for LED lighting Frame - for Motor Shell - for Hook of LED Stage lighting - for Industry assembly lines equipment. - for Heat sinks(such as: LED lighting, Car Audio Shell, High-power LED Street lighting, LED tunnel lighting and so on.) - other by custom design size and dimension |
| Surface treatment | powder coating, electrophoresis, wood grain , anodized Fluorocarbon Spraying, Sand blast, Polished, Brushed and so on |
| Colors | Ref: powder coating color sheet and customized color available |
| Deep process | CNC, drilling, milling, cuttin,punching, bending, assembling |
| MOQ | 1000 kgs for each item, usually 13-15 tons for a 20GP, 25-28 tons for a 40HQ. |
| Packing Details | (1)Inside : packed with EP Foam protective film to protect each piece |
| (2) Outside: Wrap to be bundles by waterproof craft paper | |
| Delivery time | (1)Die Developing and Sample testing: 12-18 days . |
| (2) Mass Production completed: 20-30days after sample is confirmed by Buyer. | |
| FOB Port | Shanghai |
| payment terms | T/T 30% for deposit, balance before shipping. |
| settlement term | Charge by final actual weight or by drawing theoretical weight. |
| Certificate and Standard | SGS, ISO available GB5237-2008 equal to EN12020-1.2 (2001 ) |
Applications:
Aluminum heat sink is widely used on Machines , cars , lighter ...
Specifications:
1. Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
We can offer professional Manufacturing and exporting service, OEM/ODM for Metal & Plastic parts in China. All the parts manufactured by CNC Lathe & Milling Machine Center.
