Customized Aluminium Profile System Assembly Line With 20 Years Warranty

China Customized Aluminium Profile System Assembly Line With 20 Years Warranty supplier
Customized Aluminium Profile System Assembly Line With 20 Years Warranty supplier Customized Aluminium Profile System Assembly Line With 20 Years Warranty supplier

Large Image :  Customized Aluminium Profile System Assembly Line With 20 Years Warranty

Product Details:

Place of Origin: China
Brand Name: Hentec
Certification: ISO14001:2004, ISO9001:2000

Payment & Shipping Terms:

Minimum Order Quantity: 1 ton
Packaging Details: Ep paper ,kraft ,pallet
Delivery Time: 20days
Payment Terms: T/T ,L/C
Supply Ability: 100 000ton each month
Contact Now
Detailed Product Description
Product Name: Aluminum Profile System Alloy: 6063 6061
Material: Aluminum Suface Treatment: Anodized
Deep Process: Milling, Drilling, Bending,Cutting Temper: T5, T6





Customized Aluminium Profile System Assembly / Assembly Line





(1).Suitable for industry,architecture,transportation and so on.
(2).20 years warranty.
(3).High corrosion resistance.
(4).5-10 years weather resistance.
(5).Good wear resistance & anti-scratch.
(6).Size customized.

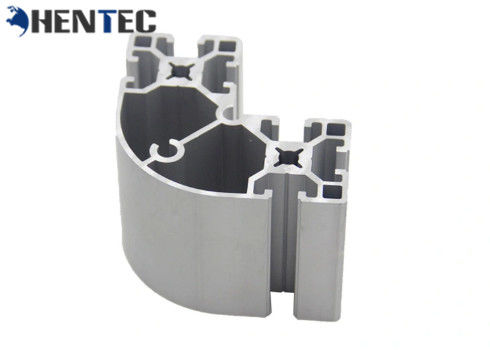

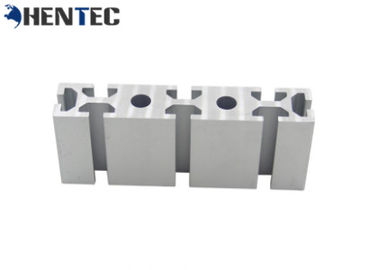

Product Name Industrial aluminium profile
Material 6000series aluminium alloy
Temper T4 T5 T6
Surface treatment Mill finish,powder coating, anodizing, wooden grain coating,polishing,eletrophoresis,PVDF, sanding blasting, etc.
Size 20 30 45 80 90 series
Slot width 6MM,8MM
Length Customized
Appearance Normally square,round and T-shaped,or customized
Color Silver,black,blue,wood color,according to clients' requirements.





 Customized Aluminium Profile System Assembly Line With 20 Years Warranty









Applications:



Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.





Customized Aluminium Profile System Assembly Line With 20 Years Warranty



Specifications:



1.Primary Technical Data



1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest



2)Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%





Customized Aluminium Profile System Assembly Line With 20 Years Warranty





Competitive Advantage:



1)Engineering design and support.

2)Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.

3)High Quality system, strictly inspection during production and whole inspection before package.

4)Good performance, product warranty for 15 years.



Customized Aluminium Profile System Assembly Line With 20 Years Warranty
