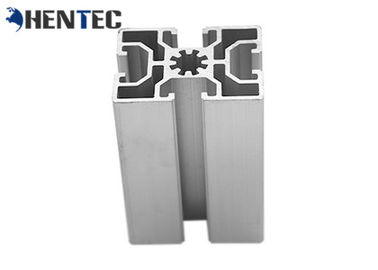

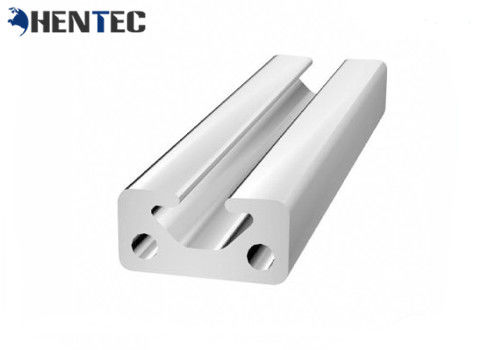

6063 Industrial Aluminium Profile System T Shaped Aluminum Extrusion Profiles

China Hentec Industry Co.,Ltd certification
China Hentec Industry Co.,Ltd certification
Thanks a lot for your support for more than 8 years ,we are really appreciate for the good quality of the products and the quality service .

—— James Scott

We have received the goods , they look perfect ,thanks for the help of Team Hentc .

—— Ane Unamuno

Le succès de ce nouveau projet dépend du support de l’équipe HENTEC en termes de technologie de traitement. Merci à HENTEC de nous aider à contrôler les coûts de manière efficace et à répondre à nos exigences en termes de haute qualité. Nous nous réjouissons de notre future collaboration!

—— Yann Pauwels

I'm Online Chat Now

6063 Industrial Aluminium Profile System T Shaped Aluminum Extrusion Profiles

6063 Industrial Aluminium Profile System T Shaped Aluminum Extrusion Profiles
6063 Industrial Aluminium Profile System T Shaped Aluminum Extrusion Profiles
video play

Large Image :  6063 Industrial Aluminium Profile System T Shaped Aluminum Extrusion Profiles

Product Details:
Place of Origin: China
Brand Name: HENTEC
Certification: CA ,CE ,ISO14001:2004, ISO9001:2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Packaging Details: Ep paper ,kraft ,pallet
Delivery Time: 20days
Payment Terms: T/T ,L/C
Supply Ability: 100 000ton each month
Detailed Product Description
Product Name: Industrial Aluminium Profile Alloy: 6063
Material: Aluminum Suface Treatment: Mill Finished,Anodized Powder Spray Coated
Deep Process: Milling, Drilling, Cutting Temper: T5, T6
High Light:

modular aluminium profile system

,

aluminium extrusion frame system



Anodized Aluminium Profile System T Shaped Aluminium Profile



Product Specification

Item

Aluminum Assembly Line

Material Aluminium 6000 series alloy, such as 6061, 6063, 6082  etc.
Temper T5, T6
Size  customized.
Shape Square, flat, round, hollow, oval, triangle, U-profile, L-profile, T-profile, H-profile, customized available.
Surface Treatment Anodizing , Powder Painting , Mill Finished
Color Silver, champagne, black, bronze, gold, white or customized
Application Window and door with thermal break strips, curtain wall, glass wall, furniture, ceiling, kitchen, LED strip, transportation rail, vehicle, motor housing, machine, tent, solar panel, industrial profile, decoration profile etc.
Deep Process CNC, drilling, milling, cutting, tapping, welding, bending, assembling.
MOQ 500 kgs for each item, usually 13-15 tons for a 20GP, 25-28 tons for a 40HQ.
OEM service Drawing, sample or design service offer by customer.
Production Capacity 2400-3000 Metric tons monthly.
Brand Name HENTEC
Certificatesand Standard 1) ISO9001-2008/ISO 9001:2008; 2) CQM CERTIFICATES; 3) SGS, CE, BV, JIS, AS, NZS, QUALICOAT, QUOLANOD AVAILABLE.
Guarantee Surface color can be stable for 10-20 years indoor using.
Packing Details Inside: pack with EP foam
Outside:  craft paper  ,Pallet , Wooden Case
Delivery time Die developing and sample testing: 12-18 days .
Mass production: 25-30 days after confirming sample by buyer.
FOB Port Shanghai Port
Payment Terms T/T 30% for deposit, balance before delivery.

6063 Industrial Aluminium Profile System T Shaped Aluminum Extrusion Profiles 0








Applications:



Industry Aluminum profile used in assembly production line , electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products.





6063 Industrial Aluminium Profile System T Shaped Aluminum Extrusion Profiles 1





Specifications:



1.Primary Technical Data



1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest



2)Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%





6063 Industrial Aluminium Profile System T Shaped Aluminum Extrusion Profiles 2





Competitive Advantage:



1)Engineering design and support.

2)Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.

3)High Quality system, strictly inspection during production and whole inspection before package.

4)Good performance, product warranty for 15 years.



 6063 Industrial Aluminium Profile System T Shaped Aluminum Extrusion Profiles 3




FAQ For Saving Your Precious Time!

Q1:What's the thickness for anodizing?Can you do 15um?
A:Our normal thickness is about 10 um.Yes, we can do 15um and above.

Q2:What color you can do for powder coating?The thickness for powder coat?
A:We can do any color for powder coat as long as you can provide the color sample.Our normally powder coating thickness is 60-80um.

Q3:What certification do you have?What's your standard?
A:We have ISO certification.Our standard is DIN, AAMA, AS/NZS, China GB.

Q4:What's the delivery time for samples and mass production?
A:(1).2-3 weeks to open the new moulds and make free samples.
(2).3-4 weeks after receipt of deposit and confirmation of the order.
