Product Details:
Payment & Shipping Terms:
|
| Product Name: | Aluminum Profile System | Alloy: | 6063 6061 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Anodized |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T5, T6 |
| High Light: | modular aluminium profile system,aluminium extrusion frame system |
||

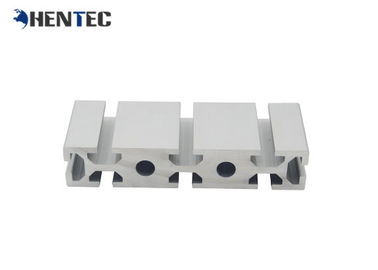

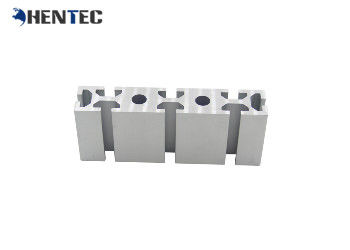

Customized Aluminium Profile System Assembly Line / Silvery Anodized
Hentec Industry Co., Ltd is specialized in Aluminum Extrusion and Aluminum Profile CNC processing.
We has 44 extrusion equipment, from 660T to 4000T. The biggest extrusion section is 350mm. Our precision flatness reaches to super-high accuracy grades. Including extrusion production line, Oxidation production line, aging oven, spraying production line.HENTEC has its own milling machine, grinding machine, laser engraving machine, punching machine, lathe machine, sawing machine, drilling machine, and Sets of big CNC machined Centers
etc, to satisfy a different kind of CNC processing requirements. The Aluminum products are widely used in multi-sectors, such as automobile, rail transit,medical instrument, robot, communication equipment, Municipal Engineering lighting, and so on.
(1).Suitable for industry,architecture,transportation and so on.
(2).20 years warranty.
(3).High corrosion resistance.
(4).5-10 years weather resistance.
(5).Good wear resistance & anti-scratch.
(6).Size customized.
| Product Name | Industrial aluminium profile |
| Material | 6000series aluminium alloy |
| Temper | T4 T5 T6 |
| Surface treatment | Mill finish,powder coating, anodizing, wooden grain coating,polishing,eletrophoresis,PVDF, sanding blasting, etc. |
| Size | 20 30 45 80 90 series |
| Slot width | 6MM,8MM |
| Length | Customized |
| Appearance | Normally square,round and T-shaped,or customized |
| Color | Silver,black,blue,wood color,according to clients' requirements. |
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1.Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2)Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1)Engineering design and support.
2)Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and whole inspection before package.
4)Good performance, product warranty for 15 years.
