Product Details:
Payment & Shipping Terms:
|
| Product Name: | Aluminum Heatsink Extrusion Profiles | Alloy: | 6063,6061,6005,6060 |
|---|---|---|---|
| Material: | Aluminium | Suface Treatment: | Mill Finished,Anodized ,Electrophoretic Coated |
| Deep Process: | Milling, Drilling, Bending,Cutting,Tapping | Temper: | T4, T5, T6 ,T66 |
| High Light: | 6063 aluminium heatsink extrusion,inverter aluminium heatsink extrusion,6063 aluminium extrusion heat sink profiles |
||

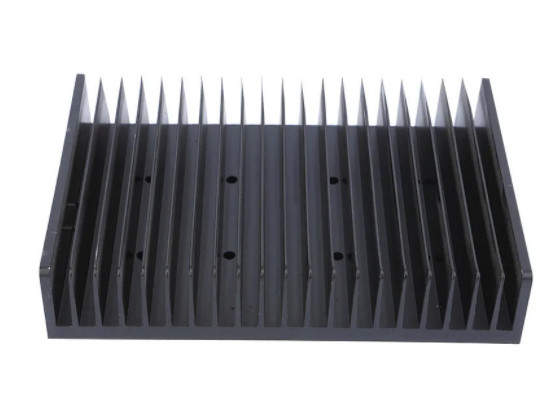

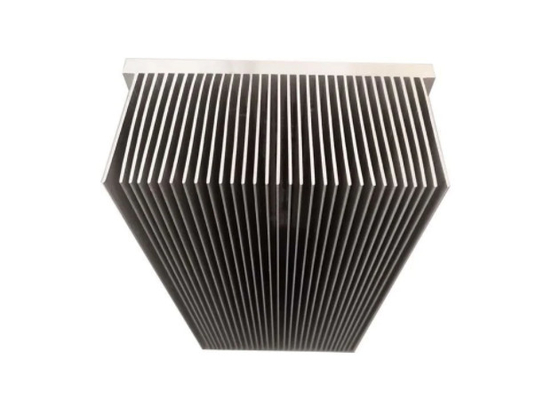

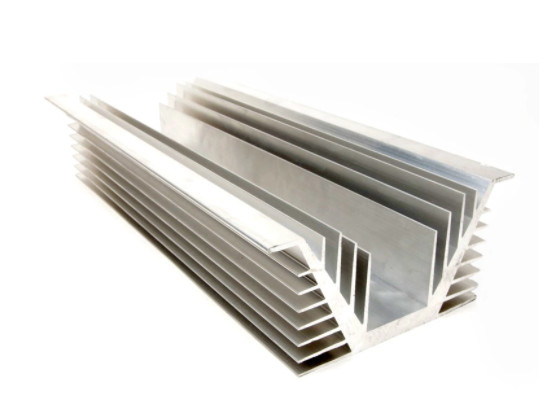

6063 Anodized CNC Machining Aluminium Heatsink Extrusion Profiles For Inverter
Description :
1. Description: Aluminium Heatsink Extrusion Profiles For Inverter
2. Alloy temper: 6060/6063-T6/T5;
3. Standard: EN755, ASTMB221, DIN Standard
4. Surface treatment: Mill finish; silvery /black anodized; Powder coated;alodine;electrophoresis
5. Application: Inverter , Led light , computer , audio equipment ...
6. Advantage:
1) Pure 99.7% aluminum materials without any scrap used
2) OEM welcome, we are able to design and cut die to meet customer's special demand
3) Wonderful surface treatment, we can meet customers required on surface
4) Strictly quality control process assured higher quality.
5) Packing safety and convenient.
Applications:
Aluminum heat sink is widely used on Machines , cars , lighter ...
Specifications:
1. Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1, This aluminum extraction profile for heat sink offers excellent engineering design and technical support .
2, With the deep processing ,it will be cut ,punched ,drilled ,milled and then fabricated into the finished product .
3, It is guaranteed on the excellent performance for as long as 15 years .
