Wear Resistance 6061 T6 Extruded Aluminum Framing Systems

China Hentec Industry Co.,Ltd certification
China Hentec Industry Co.,Ltd certification
Thanks a lot for your support for more than 8 years ,we are really appreciate for the good quality of the products and the quality service .

—— James Scott

We have received the goods , they look perfect ,thanks for the help of Team Hentc .

—— Ane Unamuno

Le succès de ce nouveau projet dépend du support de l’équipe HENTEC en termes de technologie de traitement. Merci à HENTEC de nous aider à contrôler les coûts de manière efficace et à répondre à nos exigences en termes de haute qualité. Nous nous réjouissons de notre future collaboration!

—— Yann Pauwels

I'm Online Chat Now

Wear Resistance 6061 T6 Extruded Aluminum Framing Systems

Wear Resistance 6061 T6 Extruded Aluminum Framing Systems
Wear Resistance 6061 T6 Extruded Aluminum Framing Systems
video play

Large Image :  Wear Resistance 6061 T6 Extruded Aluminum Framing Systems

Product Details:
Place of Origin: China
Brand Name: HENTEC
Certification: CA ,CE ,ISO14001:2004, ISO9001:2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Packaging Details: Ep paper ,kraft ,pallet
Delivery Time: 20days
Payment Terms: T/T ,L/C
Supply Ability: 100 000ton each month
Detailed Product Description
Product Name: Industrial Aluminium Profile Alloy: 6063
Material: Aluminum Suface Treatment: Fluorocarbon Powder Spray Coated /PVDF Paint, Drawbench,Steel Polished
Deep Process: Milling, Drilling, Bending,Cutting Temper: T4, T5, T6
High Light:

6061 t6 extruded aluminum framing systems

,

6061 t6 aluminum extrusion framing systems

,

wear resistance extruded aluminum framing systems



Wear Resistance 6061- T6 Aluminum Profilsystem Assembly Production Line For Industry



Item Aluminium extrusion profile for Industrial assembly production line
Material Aluminium 6000 series alloy, such as 6061, 6063, 6082 etc.
Temper T4, T5, T6 ,T66
Thickness General profile thickness:0.8-5.0mm; Anodized protection thickness: 8-25um; Powder coating color thickness: 40-120um.
Size 3m-6m per piece, or customized.
Shape Square, flat, round, hollow, oval, triangle, U-profile, L-profile, T-profile, H-profile, customized available.
Surface Treatment Mill-finish, anodized, powder coated, electrophoresis, wood grain, timber, PVDF paint, polishing, brushed.
Color Silver, champagne, black, bronze, gold, white or customized
Application Window and door with thermal break strips, curtain wall, glass wall, furniture, ceiling, kitchen, LED strip, transportation rail, vehicle, motor housing, machine, tent, solar panel, industrial profile, decoration profile etc.
Deep Process CNC, drilling, milling, cutting, tapping, welding, bending, assembling.
MOQ 500 kgs for each item, usually 13-15 tons for a 20GP, 25-28 tons for a 40HQ.
OEM service Drawing, sample or design service offer by customer.
Production Capacity 2400-3000 Metric tons monthly.
Brand Name Hentec
Certificatesand Standard ISO9001-2008/ISO 9001:2008
Guarantee Surface color can be stable for 10-20 years indoor using.
Packing Details Inside: pack with plastic protective film to protect each piece.
Outside: wrap to bundle by waterproof craft paper or EPE film, or customized
Delivery time Die developing and sample testing: 12-18 days .
Mass production: 25-30 days after confirming sample by buyer.
FOB Port Shanghai
Payment Terms T/T 30% for deposit, balance before delivery.
Settlement Terms Charge by final actual weight or by drawing theoretical weight.

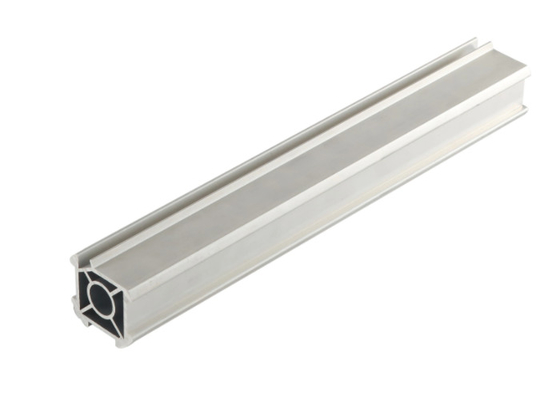

 Wear Resistance 6061 T6 Extruded Aluminum Framing Systems 0



Introduction Of Constmart Profile:

1. Description:6061-T6 Industrial Aluminium Profile System Assembly Production Line for Industry
2. Alloy temper: 6060/6063-T6/T5;
3. Standard: EN755, ASTMB221, DIN Standard
4. Surface treatment: Mill finishes; Anodized; Powder coated, wooden grain, polished, brushed.
5. Application: Assembly Production Line
6. Advantage:
1) Pure 99.7% aluminum materials without any scrap used
2) OEM welcome, we can design and cut die to meet customer's special demand
3) Wonderful surface treatment, we can meet customers required on surface
4) Strictly quality control process assured higher quality.
5) Packing safety and convenient.





Applications:



Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.

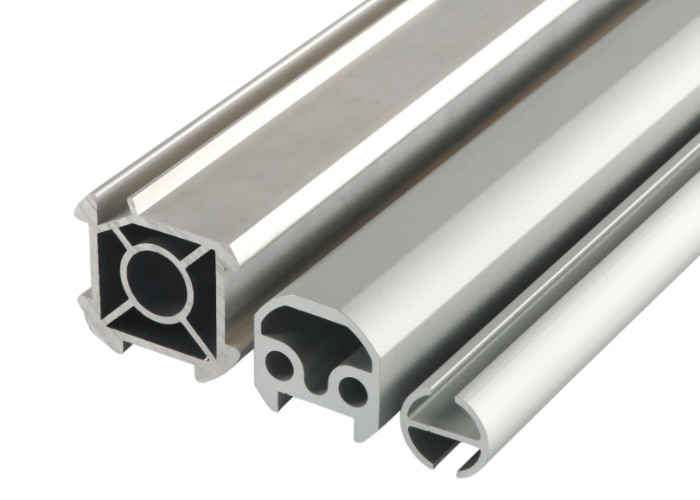

Wear Resistance 6061 T6 Extruded Aluminum Framing Systems 1



Specifications:



1.Primary Technical Data



1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest



2)Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%





Advantages:


1),To facilitate the construction : a modular and multi-functional, without complex design and processing , you can quickly frame the ideal machinery coat.

2),Beautiful and practical : light and high rigidity, simple and beautiful appearance .
3),Strong scalability : The unique T-type, groove design , the installation of components without demolition profiles can be installed anywhere in the nut screws , modified equipment is simple and quick.



Wear Resistance 6061 T6 Extruded Aluminum Framing Systems 2







Wear Resistance 6061 T6 Extruded Aluminum Framing Systems 3
