Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum | Temper: | 6063-T5 |
|---|---|---|---|
| Surface: | Powder Painting | Usage: | Electrical Shell |
| OEM/ODM: | Acceptable | Factory Location: | WUXI China |
| High Light: | aluminum electrical enclosures,extruded aluminum housing |
||

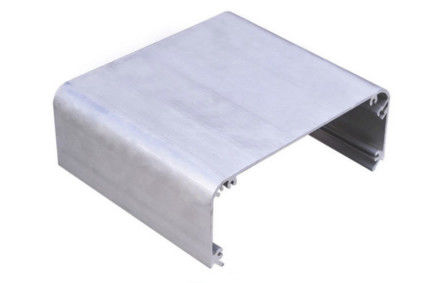

OutDoor Aluminum Electrical Shell , With Cutting , Drilling , Bending
Hentec Industry Co., Ltd. focus on producing and manufacturing aluminum profile, aluminum shell /cover , aluminium extrusion, aluminium tube , aluminum window door and curtain wall profiles and aluminum frame for LED lighting with the largest extruder as 5,000 tonnage. We produce more than 100,000 tons aluminum products annually
Description:
1. Material: 6063,6061,6060,6005,etc.
2. Temper: T5 or T6
3. Finish: Mill finish, anodizing, powder coating, electrophoresis, wooden transfer or pvdf/carbon-flouride coated, polishing, brushing, sand blasting
4. Various colors: Silver, bronze, black, gold, blue,grey, champagne, bright, etc.
5. Machining: Cutting, punching, drilling, tapping, milling, bending, welding, CNC etc.
6. Various in styles and sizes:
A) Aluminum alloy bars:6000 series , normal material such as 6063,6005,6061,6060, special materials such as 6082 etc.
B) Aluminum profiles:
---General aluminum profiles (various shapes of pipes/tubes, angles, T or U shapes etc.)
--- Industrial aluminum profiles (Aluinum Electrical Shell , Heat sink profiles, Furniture, Ladder, Guide Rail, Leisure materials, Shower Room, Solar Module Frame, Motor Shell, Pipeline Integration etc.)
--- Construction aluminum profiles.
7. Certification: ISO9001,SGS,ROHS,TUV
8. Strong technical development ability, can provide high intensity and high ductility aluminum profiles, to meet customers' different requirements.
9. OEM service available, customized design available
| Item |
6061 Aluminum Extrusions For Electronics , Anodized / Powder Painted
|
| Material | Alloy 6063, 6061,6060,6005,6082 or according to customer’ s choice |
| Temper | T4, T5, T6 ,T66 |
| Surface | Anodize (clear, satin, bronze, black, golden, silver, other multicolor) , electrophoresis, powder coating, PVDF coating, wood grain painting, etc. |
| MOQ | 1 ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container. |
| Profile type | Industry Aluminum profile used in cars, trains machinery ,trailers ,electronics, medical and other industrial filed . |
| Processing | Aluminium profile extruding ,Precise cutting,Straight rectification,Bending,Drilling,Tapping,Stamping,Pulling,CNC mill, CNC lathe. For precious machining and cutting, length tolerance can be 0.2mm, hole tolerance can be 0.05mm . |
| Moulding |
1. Using our moulds, free; 2. Using customer’ s drawing, opening mould fee need to be paid . |
| Certificate | ISO14001:2004, ISO9001:2000 |
| Standard | Meet the China national standard GB/T6892-2006 and Europe standard EN12020-1,2(2001) and American standard AAMA611-98. |
| FOB Port | Shanghai, etc. |
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1. Primary Technical Data
1)Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
| 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
| 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
2) Mechanical property
| Alloy | Temper | Tensile strength | Yield strength | Elongation |
| 6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
| T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% | |
| 6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
2.Specifications:
Excellent material for smooth and subtle edges.
Elegant appearance.
Surface treatment: colorful anodized or electrostatic powder coated.
Suitable for constructions and other industrial purposes.
Customized surface finishes are welcome.
Competitive Advantage:
1) Engineering design and support.
2) Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3) High Quality system, strictly inspection during production and whole inspection before package.
4) Good performance, product warranty for 15 years.
