Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum | Temper: | 6063 |
|---|---|---|---|
| Surface: | Anodizing | Color: | Black , Silvery |
| Usage: | Electrical | Waterproof: | Waterproof |
| High Light: | extruded aluminum enclosure boxes,extruded aluminum housing |
||

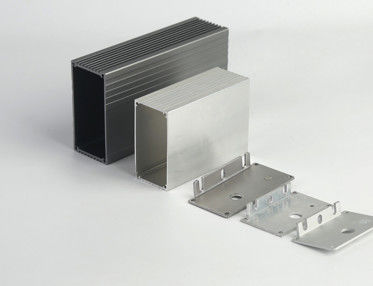

6063 Aluminum Electrical Shell , Aluminium Alloy Power Cover with Optional Surface Treatment
Established in 2006 and located in Wuxi , which is called as a paradise on the earth, Hentec Industry Co.,Ltd has been continuously growing by offering quality products and excellent services. The plant occupies an area of 100,000 square meters. We have aluminium extrusion equipment whose capability ranges from600 ton to 4500 ton and CNC processing equipment whose operation size ranges from 10mm to 6000mm. Currently, the core business covers aluminium extrusion, further processing, surface treatment and assembling. We are now specialized in manufacturing various aluminium profile products used in construction(frames for partitions, glass curtain walls, mobile homes), lighting(radiators for LED wall washers, LED linear lights, street lights, spot lights and outdoor lights), and display(frames for teaching device, televisions, commercial advertisement displays).
Description:
| Item |
6061 Aluminum Extrusions For Electronics , Anodized / Powder Painted
|
| Material | Alloy 6063, 6061,6060,6005,6082 or according to customer’ s choice |
| Temper | T4, T5, T6 ,T66 |
| Surface | Anodize (clear, satin, bronze, black, golden, silver, other multicolor) , electrophoresis, powder coating, PVDF coating, wood grain painting, etc. |
| MOQ | 1 ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container. |
| Profile type | Industry Aluminum profile used in cars, trains machinery ,trailers ,electronics, medical and other industrial filed . |
| Processing | Aluminium profile extruding ,Precise cutting,Straight rectification,Bending,Drilling,Tapping,Stamping,Pulling,CNC mill, CNC lathe. For precious machining and cutting, length tolerance can be 0.2mm, hole tolerance can be 0.05mm . |
| Moulding |
1. Using our moulds, free; 2. Using customer’ s drawing, opening mould fee need to be paid . |
| Certificate | ISO14001:2004, ISO9001:2000 |
| Standard | Meet the China national standard GB/T6892-2006 and Europe standard EN12020-1,2(2001) and American standard AAMA611-98. |
| FOB Port | Shanghai, etc. |
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1. Primary Technical Data
1)Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
| 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
| 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
2) Mechanical property
| Alloy | Temper | Tensile strength | Yield strength | Elongation |
| 6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
| T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% | |
| 6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
2.Specifications:
Excellent material for smooth and subtle edges.
Elegant appearance.
Surface treatment: colorful anodized or electrostatic powder coated.
Suitable for constructions and other industrial purposes.
Customized surface finishes are welcome.
Competitive Advantage:
1) Engineering design and support.
2) Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3) High Quality system, strictly inspection during production and whole inspection before package.
4) Good performance, product warranty for 15 years.
Contact Person: Mr. Chris Gong
Tel: +86 510 86061388 / 86215836
Fax: 86-0510-86215835
