Customized 6061 / 6063 / T5 / T6 Extruded Aluminum Enclosure Powder Painting / Anodizing

Good quality Aluminum Heatsink Extrusion Profiles for sales
Good quality Aluminum Heatsink Extrusion Profiles for sales
Thanks a lot for your support for more than 8 years ,we are really appreciate for the good quality of the products and the quality service .

—— James Scott

We have received the goods , they look perfect ,thanks for the help of Team Hentc .

—— Ane Unamuno

I'm Online Chat Now

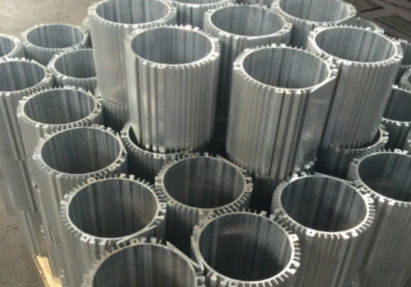

Customized 6061 / 6063 / T5 / T6 Extruded Aluminum Enclosure Powder Painting / Anodizing

China Customized 6061 / 6063 / T5 / T6 Extruded Aluminum Enclosure Powder Painting / Anodizing supplier

Large Image :  Customized 6061 / 6063 / T5 / T6 Extruded Aluminum Enclosure Powder Painting / Anodizing

Product Details:

Place of Origin: China
Brand Name: Hentec

Payment & Shipping Terms:

Minimum Order Quantity: 500KG
Packaging Details: Wooden Case
Contact Now
Detailed Product Description
Material: Aluminum Surface: Powder Painting
Logo: Silk Screen Application: Electrical
Warranty: 15 Years



Customized Aluminm Electrical Shell , 6061 / 6063 / T5 / T6 , Powder Painting / Anodizing







Hentec Industry Co.,Ltd was established in 2007. After 10years' rapid development, Hentec has become the largest profile manufacturer in the Southeast of China, as well as the top sales construction profile for 8 successive years.




Description:





Item Machines 6063-T5 Aluminium Heatsink Extrusions with alodine surface treatment
Material Alloy 6063, 6061,6005,6060 or according to customer’ s choice
Temper T4, T5, T6
Surface Anodize (clear, satin, bronze, black, golden, silver, other multicolor) , electrophoresis, powder coating, PVDF coating, wood grain painting, etc.
MOQ 1 ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.
Profile type Aluminum Extrusion Heatsink which is used in medical equipment ,LED Heat sink ,CPU Cooler , Led Lamp ,Led light , notebook cooler ,and some other filed .
Processing Aluminum profile extruding ,Precise cutting,Straight rectification,Bending,Drilling,Tapping,Stamping,Pulling,CNC mill, CNC lathe. For precious machining and cutting, length tolerance can be 0.2mm, hole tolerance can be 0.05mm .
Moulding 1. Using our mould, free; 2. Using customer’ s drawing, opening mould fee need to be paid .
Certificate ISO14001:2004, ISO9001:2000
Standard Meet the China national standard GB/T6892-2006 and Europe standard EN12020-1,2(2001) and American standard AAMA611-98.
FOB Port Shanghai, etc.




Applications:



Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.





Specifications:



1.Primary Technical Data



1)Chemical composition

Alloy Si Fe Cu Mn Mg Cr Zn Ti Impurity Al
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 0.1 0.1 0.15 Rest
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 0.25 0.15 0.15 Rest
6060 0.3-0.6 0.1-0.3 0.1 0.1 0.35-0.6 - 0.15 0.1 0.15 Rest
6005 0.6-0.9 0.35 0.1 0.1 0.40-0.6 0.1 0.1 0.1 0.15 Rest



2)Mechanical property

Alloy Temper Tensile strength Yield strength Elongation
6063 T5 ≥ 160Mpa ≥ 110Mpa ≥ 8%
T6 ≥ 205Mpa ≥ 180Mpa ≥ 8%
6061 T6 ≥ 265Mpa ≥ 245Mpa ≥ 8%



2.Specifications:



Excellent material for smooth and subtle edges

Elegant appearance

Surface treatment: colorful anodized or electrostatic powder coated

Suitable for constructions and other industrial purposes

Customized surface finishes are welcome





Competitive Advantage:



1. Profession production workshop for extrusion and colored profile manufacturing, including we own 7000 tons extrusion machine, automatic vertical electrophoresis production lines.
2. Strict quality control and inspection before good delivery.
3. Production standards: GB5237-2008 or other International standards
4. With 25 years' experience, our factory is well recognized by clients and enjoys a good reputation, among overseas markets.
5. Provincial-level R&D team and over 100 national patents.



Casting Workshorp :

Customized 6061 / 6063 / T5 / T6 Extruded Aluminum Enclosure Powder Painting / Anodizing
