Alloy 6061 Solar Panel Rail Mounting System With Electrophoresis Surface

China Alloy 6061 Solar Panel Rail Mounting System With Electrophoresis Surface supplier

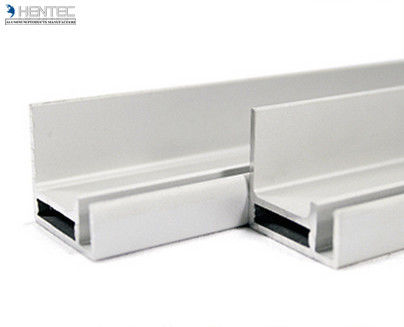

Large Image :  Alloy 6061 Solar Panel Rail Mounting System With Electrophoresis Surface

Product Details:

Place of Origin: China
Brand Name: HT
Certification: CA ,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 ton
Packaging Details: Packed with EP ,Carton ,Pallet or wooden case
Delivery Time: 20days
Payment Terms: T/T ,L/C
Supply Ability: 3000tons each month
Contact Now
Detailed Product Description
Product Name: Aluminum Solar Panel Frame Alloy: 6063,6061,6005
Material: Aluminum Suface Treatment: Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated
Deep Process: Milling, Drilling, Bending,Cutting Temper: T4, T5, T6

Sand Blast / Anodized Aluminum Solar Panel Frame / Solar Laminate Panels Profiles

Description:

1, the company production of solar aluminum frame, natural beauty, excellent quality, the surface without any defects, precise tolerances.
2, our border can be oxidized to a different color, such as silver, black, etc., but also can make the surface coating.
3, our processing methods are cutting, punching, stamping, milling, etc., in the machining process to maintain the exact dimensions.
4, Packing: Carton and pallet can also be packaged according to customer requirements.
5 different sizes and specifications of products according to customer's drawings or samples to produce.
6, the company's current production capacity of 150, 000 to 300, 000 units per month.

.


Solar panels (photovoltaic modules) aluminum frame
A. Solar module aluminum frame Size Description:
1) 17 * 17, 20 * 20, 23 * 17, 25 * 25, 28 * 25mm, etc., suitable for solar street lamps and other small solar power generation equipment;
2) 30 * 25, 35 * 30mm, suitable for 30-100W solar modules;
3) 35 * 35mm, suitable for 80-180W solar modules, length is generally 1580 * 808mm (the most common frame size);
4) 40 * 35mm, suitable for 120-200W solar modules, length is generally 1580 * 808mm;
5) 45 * 35mm, suitable for 180-250W solar modules, length is generally 1580 * 808 and 1650 * 992mm;
6) 50 * 35mm, suitable for 200-300W solar modules, length is generally 1650 * 992 and 1960 * 992mm;
7) Many other customized according to customer's special sizes, such as 40 * 28mm, 40 * 30mm, 42 * 35mm, 46 * 30mm, 46 * 35mm, 46 * 40mm, 46 * 48mm, 46 * 50mm, 46 * 60mm, 60 * 35mm and so on.

B. Two types:
1) 90 Angle (screw border)
2) 45 corner (Corner Borders)

C. Surface treatment:
1) Anodized (silver, bronze, black, gold, silver, other colors)
2) Electrophoresis
3) powder coating, PVDF, polishing, sand blasting

Standard: GB/T5237 - 2004, Q/320281PDW01-2008



Alloy 6061 Solar Panel Rail Mounting System With Electrophoresis Surface
Specifications :

Item

Aluminum Extrusion Solar Panel Frame

Material

Alloy 6063, 6061 or according to customer’ s choice

Temper

T3, T4, T5, T6

Surface

Anodize (clear, satin, bronze, black, golden, silver, other multicolor) , electrophoresis, powder coating, PVDF coating, wood grain painting, etc.

Color

Any color based on Standard Germany RAL Mark

MOQ

1  ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.

Profile type

used as the frame of solar panel

Fabrication

1. Milling; 2. Drilling; 3. Bending; 4. Cutting.

Moulding

1. Using our moulds, free; 2. Using customer’ s drawing, opening mould fee need to be paid.

Mould size

25*25, 35*35,30*46, 46*50, 30*25, 40*40 ,50*35,etc.We can provide customized aluminum solar frames upon to customers' request.

FOB Port

Shanghai, etc.




Our Advantages!
1. 22 years' experiences of manufacturing .
2. STRONG R&D: Help customers finalize the design, strong tool design ability,excellent pressing and surface treament technology.
3.Strict quality management: ISO Administration system.
4. 24 hours on-line communication.Professional, Patient, Flexible.
5. High capacity of manufaturing and wide range of products.
6. Be able to provide secondary fabricating.
7. Small order is accepted.
8. Be able to provide one-stop supply solution.
9. Multiple payment methods: TT, LC. DP,OA.


Alloy 6061 Solar Panel Rail Mounting System With Electrophoresis Surface

Alloy 6061 Solar Panel Rail Mounting System With Electrophoresis Surface

Alloy 6061 Solar Panel Rail Mounting System With Electrophoresis Surface

Alloy 6061 Solar Panel Rail Mounting System With Electrophoresis Surface

Alloy 6061 Solar Panel Rail Mounting System With Electrophoresis Surface

Alloy 6061 Solar Panel Rail Mounting System With Electrophoresis Surface


Applications:


Competitive Advantage:

In addition to high quality ,we at Hentec office offer customer complete service .Our aluminum solar frame comes with a 15 year warranty .Maintenance service is also available .


Alloy 6061 Solar Panel Rail Mounting System With Electrophoresis Surface
