Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum Alloy | Temper: | T5 |
|---|---|---|---|
| Color: | Silvery | Application: | Roof |
| Size: | 40*40mm | Surface: | Anodized |
| High Light: | aluminium solar panel frame,solar panel aluminum frame |
||
Affordable 6063 Aluminium Solar Panel Frame And Fabrication CA CE
| Type: | Ground solar mounting |
| Installation site: | Open field ground |
| Material: | Aluminum6063 T3-T5;Steel |
| Fasten material: | Aluminum |
| Anticorrosive: | Hot-dip galvanized |
| Survival Wind Speed: | < 60m/s |
| Design Snow load: | Up to 1.4KN/ Square meters |
| Solar panel type: | Framed or Frameless |
| Panel Orientation: | Transverse or vertical |
| Design Standard: | CE;IOS9001 |
| Quality warranty: | 12-25 years |
| Duration: | More than 20 years |
| Delivery time: | 7-15 days |
| Package: | Standard Packing |
Specifications :
Item | Aluminum Extrusion Solar Panel Frame |
Material | Alloy 6063, 6061 or according to customer’ s choice |
Temper | T3, T4, T5, T6 |
Surface | Anodize (clear, satin, bronze, black, golden, silver, other multicolor) , electrophoresis, powder coating, PVDF coating, wood grain painting, etc. |
Color | Any color based on Standard Germany RAL Mark |
MOQ | 1 ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container. |
Profile type | used as the frame of solar panel |
Fabrication | 1. Milling; 2. Drilling; 3. Bending; 4. Cutting. |
Moulding | 1. Using our moulds, free; 2. Using customer’ s drawing, opening mould fee need to be paid. |
Mould size | 25*25, 35*35,30*46, 46*50, 30*25, 40*40 ,50*35,etc.We can provide customized aluminum solar frames upon to customers' request. |
FOB Port | Shanghai, etc. |
1.Alloy :6063,6061,6005 or according to customer’ s choice
2.Material:Aluminum
3.Suface Treatment: Mill Finished,Anodized ,Electrophoretic coated,Powder spray coated,Fluorocarbon powder spray coated /PVDF Paint, Drawbench,Steel polished,Wood grain coated /Wooden transfer .
4.Deep process: Milling, Drilling, Bending,Cutting.

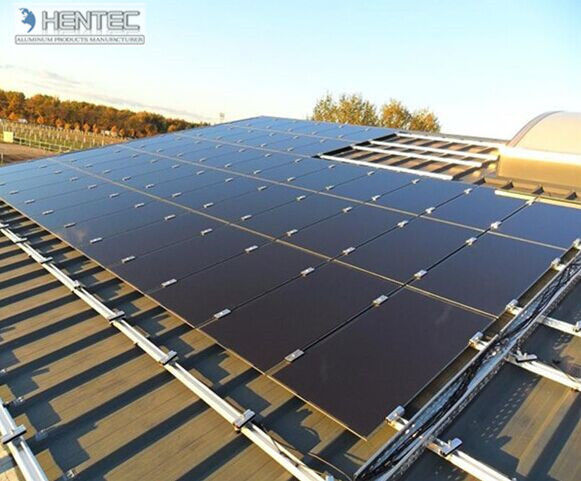

5.Application: Aluminum solar frame is widely used as the frame of solar panel.
6.Color:clear, satin, bronze, black, golden, silver, other multicolor
7.Temper: T4, T5, T6 ,T66
Applications:
Competitive Advantage:
In addition to high quality ,we at Hentec office offer customer complete service .Our aluminum solar frame comes with a 15 year warranty .Maintenance service is also available .
