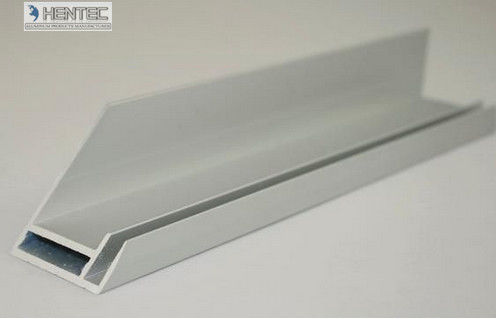

Customerized Aluminum Solar Panel Frame 6063 T5 Aluminum Extrusion Profiles

China Customerized Aluminum Solar Panel Frame 6063 T5 Aluminum Extrusion Profiles supplier

Large Image :  Customerized Aluminum Solar Panel Frame 6063 T5 Aluminum Extrusion Profiles

Product Details:

Place of Origin: China
Brand Name: HT
Certification: CA ,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 ton
Packaging Details: Packed with EP ,Carton ,Pallet or wooden case
Delivery Time: 20days
Payment Terms: T/T ,L/C
Supply Ability: 3000tons each month
Contact Now
Detailed Product Description
Product Name: Aluminum Solar Panel Frame Alloy: 6063,6061,6005
Material: Aluminum Suface Treatment: Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated
Deep Process: Milling, Drilling, Bending,Cutting Temper: T4, T5, T6 ,T66



Customerized Aluminum Solar Panel Frame 6063 T5 Aluminum Extrusion Profiles


Solar panels (photovoltaic modules) aluminum frame
A. Solar module aluminum frame Size Description:
1) 17 * 17, 20 * 20, 23 * 17, 25 * 25, 28 * 25mm, etc., suitable for solar street lamps and other small solar power generation equipment;
2) 30 * 25, 35 * 30mm, suitable for 30-100W solar modules;
3) 35 * 35mm, suitable for 80-180W solar modules, length is generally 1580 * 808mm (the most common frame size);
4) 40 * 35mm, suitable for 120-200W solar modules, length is generally 1580 * 808mm;
5) 45 * 35mm, suitable for 180-250W solar modules, length is generally 1580 * 808 and 1650 * 992mm;
6) 50 * 35mm, suitable for 200-300W solar modules, length is generally 1650 * 992 and 1960 * 992mm;
7) Many other customized according to customer's special sizes, such as 40 * 28mm, 40 * 30mm, 42 * 35mm, 46 * 30mm, 46 * 35mm, 46 * 40mm, 46 * 48mm, 46 * 50mm, 46 * 60mm, 60 * 35mm and so on.
B. Two types:
1) 90 Angle (screw border)
2) 45 corner (Corner Borders)
C. Surface treatment:
1) Anodized (silver, bronze, black, gold, silver, other colors)
2) Electrophoresis
3) powder coating, PVDF, polishing, sand blasting
Standard: GB/T5237 - 2004, Q/320281PDW01-2008
Size: According to your design drawings, model
Note: 1. Various sizes for our existing solar frame, without open new mold.
2 aluminum frame is very popular in Europe.
3. We can follow your design drawings requirements. If you are interested in our products, please contact us, thank you.

Specifications :

Item

Aluminum solar panel frame joint with" Corner Key"

Material

Alloy 6063, 6061 or according to customer’ s choice

Temper

T3, T4, T5, T6

Surface

Anodize (clear, satin, bronze, black, golden, silver, other multicolor) , electrophoresis, powder coating, PVDF coating, wood grain painting, etc.

Color

Any color based on Standard Germany RAL Mark

MOQ

1  ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.

Profile type

used as the frame of solar panel

Fabrication

1. Milling; 2. Drilling; 3. Bending; 4. Cutting.

Moulding

1. Using our moulds, free; 2. Using customer’ s drawing, opening mould fee need to be paid.

Mould size

25*25, 35*35,30*46, 46*50, 30*25, 40*40 ,50*35,etc.We can provide customized aluminum solar frames upon to customers' request.

FOB Port

Shanghai, etc.




Customerized Aluminum Solar Panel Frame 6063 T5 Aluminum Extrusion Profiles

Customerized Aluminum Solar Panel Frame 6063 T5 Aluminum Extrusion Profiles
Customerized Aluminum Solar Panel Frame 6063 T5 Aluminum Extrusion Profiles

Customerized Aluminum Solar Panel Frame 6063 T5 Aluminum Extrusion Profiles

Customerized Aluminum Solar Panel Frame 6063 T5 Aluminum Extrusion Profiles

Customerized Aluminum Solar Panel Frame 6063 T5 Aluminum Extrusion Profiles


Applications:


Competitive Advantage:

In addition to high quality ,we at Hentec office offer customer complete service .Our aluminum solar frame comes with a 15 year warranty .Maintenance service is also available .
