Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum Alloy | Temper: | T5 / T6 |
|---|---|---|---|
| Alloy: | 6063 / 6061 / 6060 | Surface: | Powder Painted |
| Color: | Customerized | ||
| High Light: | aluminum extrusion profiles,profile aluminum extrusions |
||
Product Description

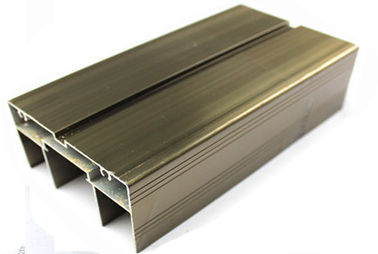

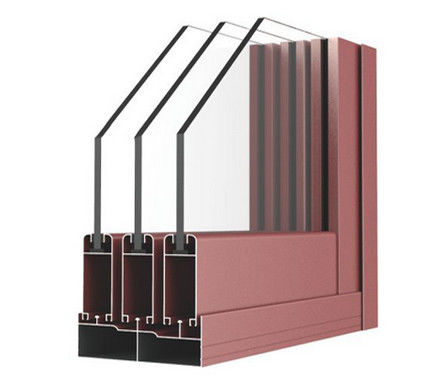

Europe Quality Aluminum Window Extrusion Profils / Aluminium Alloy Horizontal Sliding Window
1. Aluminum Frame:
A .Material: Aluminum alloy 6061,6063
B. Temper: T5
C. Profile thickness: 1.2mm--2.0mm. Or as customer's demand.
D. Surface treatment: Powder coating, Anodizing, Electrophoresis, Wood grain with any color
E. Color of Frame: White/champagne/grey/green/natural/wood grain .Or according to customer's needs
F. Function: Security, Heatproof, Waterproof, Decoration, and Airproof.
Color Chart for Sliding Window:
More color for window, you also can provide your color.
Applications:
Aluminum profile used for making aluminum door .There are many colors can be selected for surface treatment .The strength can be increased by higher wall thickness . It is possible to produce according to customized design .
Specifications:
1. Primary Technical Data
1) Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1. Top Aluminium profile manufacturer for more than 10 years in China.
2. Diverse Products used in the fields of construction, industry and deep-processing.
3. Quality Control is put in the core position of our production.
4. Customized Production shows our capability in product design and process control.
5. Perfect Customer Services include careful packaging, quick delivery and good
after-sale service.
