CA ,CE Aluminium Window Extrusion Profiles / Aluminum Tharmal Break Casement Window

China CA ,CE Aluminium Window Extrusion Profiles / Aluminum Tharmal Break Casement Window supplier

Large Image :  CA ,CE Aluminium Window Extrusion Profiles / Aluminum Tharmal Break Casement Window

Product Details:

Place of Origin: China
Brand Name: HT
Certification: CA ,CE
Model Number: HD50

Payment & Shipping Terms:

Minimum Order Quantity: 1 ton
Packaging Details: EP Paper ,kraft and pallet
Delivery Time: 20days
Payment Terms: T/T or L/C
Supply Ability: 100 000 ton each month
Contact Now
Detailed Product Description
Material: Aluminum Alloy Temper: T5 / T6
Alloy: 6063 / 6061 / 6060 Surface: Powder Painted
Standard: GB/75237-2004, Q/320281/PDWD-2008

Description:

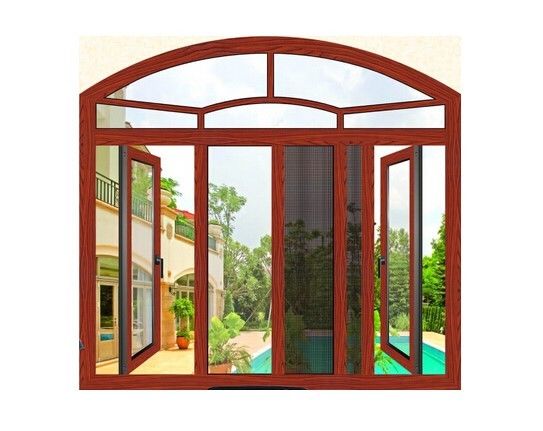

High Quality Aluminium Window Extrusion Profiles / Aluminum Tharmal Break Casement Window With Gold Wooden Color



Features 1. Water-proof & Air-proof
2. Anti-aging
3. Space Saving
4. Sound Insulation & Heat Insulation
5. Opening Smoothly
6. Dust resistance
7. Easy maintenance
8.Good Combustion-retarding Performance
Material series:45mm
Thickness: 1.4mm
Surface Treatment: Powdercoated/Anodized/Electrophoresis/PVDF, etc.
Color: Customized (Silver/Champagne/White/Black, etc.)
Glass Type: LOW-E/Reflective/Tempered/Heat-strengthened/Floated
Glazed: Single Glazing Double / Triple Glazing: Insulated Glass, Laminated Glass
Color: Customizable(Clear/Grey/Blue/Brown/Green, etc.)





Technical requirements



1) Standard: GB/75237-2004, Q/320281/PDWD-2008
2) Certification: ISO9001
3) OEM service offered

4) Material: Alloy 6063, 6061 or according to customer’ s choice

    Temper: T3, T4, T5, T6

5) Fabrication: 1. Milling; 2. Drilling; 3. Bending; 4. Cutting...

6) Window Accessories:  Using ECO friendly EPDM leather strap that would not age for a long time with a long service life.
7) MOQ: 1 ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.

8) FOB Port: Shanghai Port





Applications



Used in casement doors and windows  for living room, dinner room, bathroom, office room, meeting room, restaurant, hotel,etc.





Specifications:



1.Primary Technical Data



1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest



2)Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%



2. Specifications :

CA ,CE Aluminium Window Extrusion Profiles / Aluminum Tharmal Break Casement Window

window and door P17-18.pdf

window and door P19-20.pdf

window and door P21-22.pdf

window and door P23-24.pdf

window and door P25-26.pdf

window and door P27-28.pdf





Competitive Advantage:



1)Engineering design and support.

2)Aluminium profiles deeply processing:cutting,punching,drilling,milling,and fabricating.

3)High Quality system, strictly inspection during production and whole inspection before package.

4)Good performance, product warranty for 15 years.

CA ,CE Aluminium Window Extrusion Profiles / Aluminum Tharmal Break Casement Window
