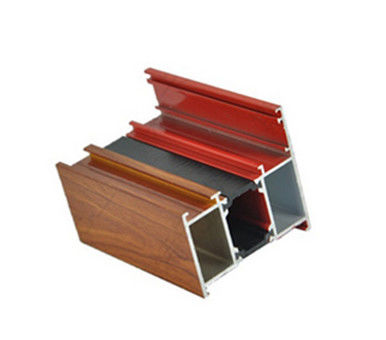

Extruded Aluminium Profiles / Aluminum Tharmal Break Casement Window

China Extruded Aluminium Profiles / Aluminum Tharmal Break Casement Window supplier

Large Image :  Extruded Aluminium Profiles / Aluminum Tharmal Break Casement Window

Product Details:

Place of Origin: China
Brand Name: HT
Certification: CA ,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 ton
Packaging Details: EP Paper ,kraft and pallet
Delivery Time: 20days
Payment Terms: T/T or L/C
Supply Ability: 100 000 ton each month
Contact Now
Detailed Product Description
Material: Aluminum Alloy Temper: T5
Alloy: 6063 / 6061 / 6060 Surface: Powder Painted
Standard: GB/75237-2004, Q/320281/PDWD-2008

We are the professional manufacturer for good quality competitive price







Hentec Industry Co.,Ltd focus on design, producing and manufacturing aluminium extrusion, extrude aluminum profiles, aluminium tube, aluminum window door and curtain wall profiles and PV solar module aluminum frame for solar panel with the largest extruder as 4000 tonnage. We produce more than 100, 000 tons aluminum products annually.



Top Quality Decorat Aluminium Window Extrusion Profiles / Aluminum Tharmal Break Casement Window With Competitive Price

Type Option: Sliding, Casement, Fixed, Arch, Tilt & Turn, Awning, Folding, Louver, Circle and etc
Color: As your request
Size: As your request
Frame Material: China brand Aluminum profile with more than 1.4mm thickness for window and 2.0mm thickness for door
Aluminum Option: Normal aluminum profile, Thermal-Break aluminum profile
Glass Option: Clear glass, Laminated glass, Tinted glass, Low-E glass, Frosted glass, all tempered glass
Single layer glass: 4mm, 5mm, 6mm, 8mm, 10mm, 12mm and etc
Double layer glass: 5+9A+5mm, 5+12A+5mm, 6+12A+6mm and etc
Triple glass: 6+9A+6+9A+6mm and etc
Opening Method: Inwards or Outwards, right or left hand opening as your request
Mosquito Screen: Metal and Nylon material for option
Roller shutter: Optional
Surface Treatment: Powder coating, anodizing, electrophoresis coating







Applications



Used in casement doors and windows  for living room, dinner room, bathroom, office room, meeting room, restaurant, hotel,etc.





Specifications:



1.Primary Technical Data



1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest



2)Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%



2. Specifications :

Extruded Aluminium Profiles / Aluminum Tharmal Break Casement Window

window and door P17-18.pdf

window and door P19-20.pdf

window and door P21-22.pdf

window and door P23-24.pdf

window and door P25-26.pdf

window and door P27-28.pdf





Competitive Advantage:



1)Engineering design and support.

2)Aluminium profiles deeply processing:cutting,punching,drilling,milling,and fabricating.

3)High Quality system, strictly inspection during production and whole inspection before package.

4)Good performance, product warranty for 15 years.
