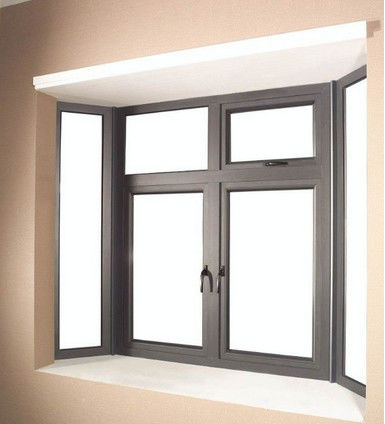

6060 Aluminum Window Extrusion Profiles For Side Hung Opening Casement Window

China 6060 Aluminum Window Extrusion Profiles For Side Hung Opening Casement Window supplier
6060 Aluminum Window Extrusion Profiles For Side Hung Opening Casement Window supplier 6060 Aluminum Window Extrusion Profiles For Side Hung Opening Casement Window supplier

Large Image :  6060 Aluminum Window Extrusion Profiles For Side Hung Opening Casement Window

Product Details:

Place of Origin: China
Brand Name: HT
Certification: CA ,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 ton
Packaging Details: EP Paper ,kraft and pallet
Delivery Time: 20days
Payment Terms: T/T or L/C
Supply Ability: 100 000 ton each month
Contact Now
Detailed Product Description
Material: Aluminum Alloy Temper: T5 / T6
Alloy: 6063 / 6061 / 6060 Surface: Powder Painted
Color: Customerized



6060 Aluminum Window Extrusion Profiles For Side Hung Opening Casement Window

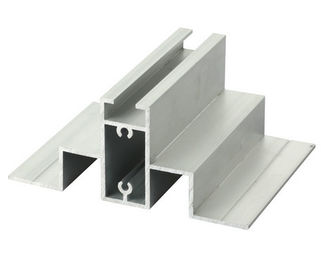

1) Aluminium Extrusion Profile
2) Thermal Break Window / Door Profile
3) Surface Treatment: Based on customers' requirement (i. e. Bright DIP, Anodizing, Powder Coating)
4) OEM items are based on customer request, customers' designs are welcome
5) Product export to Europe, South America, Middle East, Africa, Asia, Russia , Ukraine



Description :
1. Aluminum Frame:
A .Material: Aluminum alloy 6061,6063
B. Temper: T5
C. Profile thickness: 1.2mm--2.0mm. Or as customer's demand.
D. Surface treatment: Powder coating, Anodizing, Electrophoresis, Wood grain with any color
E. Color of Frame: White/champagne/grey/green/natural/wood grain .Or according to customer's needs
F. Function: Security, Heatproof, Waterproof, Decoration, and Airproof.
G.International brand is available as per customer's request

Window and Door's Design
We can DIY any type of aluminium windows and doors as your request, and our popular types are as below:
Aluminium Alloy Horizontal Sliding Sash Glass Window with As2047 Certificate Pnoc0006slw





Applications:

Aluminum profile used for making aluminum door .There are many colors can be selected for surface treatment .The strength can be increased by higher wall thickness . It is possible to produce according to customized design .



Powder painted / Anodized Aluminium Window Profiles , aluminium extrusion sections

Specifications:

1. Primary Technical Data

1) Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest





2) Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%







Competitive Advantage:



1. Top Aluminium profile manufacturer for more than 10 years in China.
2. Diverse Products used in the fields of construction, industry and deep-processing.
3. Quality Control is put in the core position of our production.
4.  Customized Production shows our capability in product design and process control.
5. Perfect Customer Services include careful packaging, quick delivery and good
     after-sale service.



Powder painted / Anodized Aluminium Window Profiles , aluminium extrusion sections
