PVDF Painting Aluminum Extruded Profiles , GB75237-2004 Silding Aluminium Window Extrusions

China PVDF Painting Aluminum Extruded Profiles , GB75237-2004 Silding Aluminium Window Extrusions supplier

Large Image :  PVDF Painting Aluminum Extruded Profiles , GB75237-2004 Silding Aluminium Window Extrusions

Product Details:

Place of Origin: China
Brand Name: Hentec
Certification: CA ,CE
Model Number: H548

Payment & Shipping Terms:

Minimum Order Quantity: 1 ton
Packaging Details: EP Paper ,kraft and pallet
Delivery Time: 20days
Payment Terms: T/T or L/C
Supply Ability: 100 000 ton each month
Contact Now
Detailed Product Description
Material: Aluminum Alloy Temper: T5 / T6
Alloy: 6063 / 6061 / 6060 Surface: Powder Painted
Standard: GB/75237-2004, Q/320281/PDWD-2008



PVDF Painting Aluminum Extruded Profiles , GB75237-2004 Silding Aluminium Window Extrusions



1.Safety,fastness,don't occupy space,cheap.

2.A sliding window is a type of window which opens horizontally by Sliding,whereby the window is mounted on a track.

3.No lifting!No crank!No sudden closed by wind!No way to let outside in.

4.High performance rollers at the bottom of the sliding window ensure that up to 150kg heavy double glazed window panel glide effortlessly.







Description:





The surface treatment :



1) Mill Finished

2) Anodized: Silver, champagne, light bronze, dark bronze, black, light titanium, dark titanium. Usually the thickness of the film is 10 um.

3) Electrophoretic coated: Silver, champagne, bronze, black, light bronze, dark bronze.

4) Powder spray coated: Normal color, special color. Thicknes: 60 to 80 um.

5) Fluorocarbon powder spray coated /PVDF Pain: Normal color, special color.

6) Drawbench

7) Steel polished

8) Wood grain coated /Wooden transfer: Imported paper, domestic paper.





Technical requirements



1) Standard: GB/75237-2004, Q/320281/PDWD-2008
2) Certification: ISO9001
3) OEM service offered

4) Material: Alloy 6063, 6061 or according to customer’ s choice

    Temper: T3, T4, T5, T6

5) Fabrication: 1. Milling; 2. Drilling; 3. Bending; 4. Cutting...

6) Window Accessories:  Using ECO friendly EPDM leather strap that would not age for a long time with a long service life.
7) MOQ: 1 ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.

8) FOB Port: Shanghai Port





Applications



Used in casement doors and windows  for living room, dinner room, bathroom, office room, meeting room, restaurant, hotel,etc.





Specifications:



1.Primary Technical Data



1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest



2)Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%



2. Specifications :

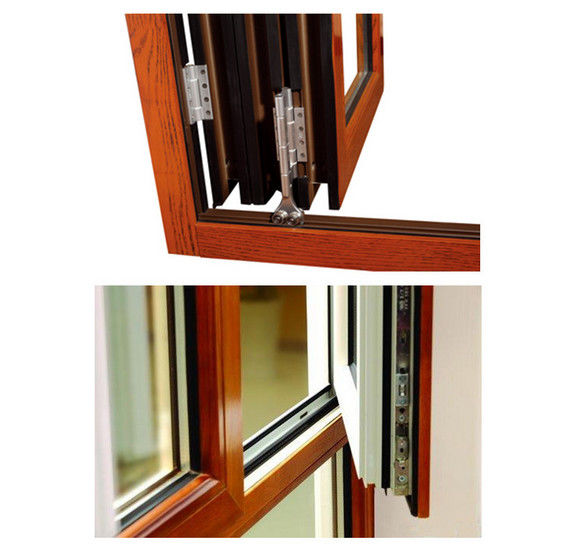

PVDF Painting Aluminum Extruded Profiles , GB75237-2004 Silding Aluminium Window Extrusions





Competitive Advantage:



1)Engineering design and support.

2)Aluminium profiles deeply processing:cutting,punching,drilling,milling,and fabricating.

3)High Quality system, strictly inspection during production and whole inspection before package.

4)Good performance, product warranty for 15 years.

PVDF Painting Aluminum Extruded Profiles , GB75237-2004 Silding Aluminium Window Extrusions
