Product Details:
Payment & Shipping Terms:
|
| Product Name: | Aluminum Extrusion Bar | Alloy: | 6063,6061,6005 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized，etc |
| Temper: | T4, T5, T6 ,T66 | Application: | Buildings,commercial,industrial |
| High Light: | construction aluminium profile,aluminium profile extrusion |
||

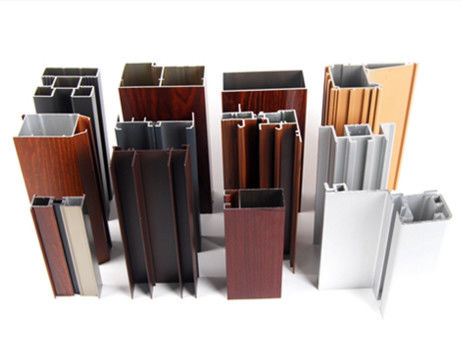

Powder Spray Coated Construction Aluminum Profile / Customized Sections
Our 4500T grade extrusion machine enable us to produce any section within 400*150mm and φ360.
Your drawings are definitely welcomed.
Price indication: basic aluminium ingot, extrusion cost, surfacing cost and extra.
We also supply fully assembled premium grade window&door systems
Product Specification
| Item | High quality extruded industrial aluminium profiles |
| material | Aluminium 6000 series alloy: such as 6063 6005 6061 |
| Temper | T4 T5 T6 |
| Size | 3m - 6m per piece ,or customized |
| Shape | round,square,flat,hollow,oval,triangle,U-profile,L-profile,T-profile,customized avaiable |
| Thickness | General profile thickness:0.8 - 5.0mm |
| Application | Construction |
Surface treatment
| Surface truement | Mill-finish,anodized,powder,coated,electropheresis,wood grain,brushed |
| Anodized Color | Silver,black,chanpagne,bronze,gold or customized |
| Anodized thickness | 8 - 25um |
| Electrpheresis color | Silver,black,chanpagne,bronze,gold or customized |
| Powder coated Color | All color by Raul ,or customized |
| Powder coated thickness | 40 - 120um |
| Wood grain | customized |
| Guarantee | surface color can be stable for 15- 20years indoor using |
Packing
| Bundles Packing | Inside: packed with plastic protective film to protect each piece Outside: wrap to be bundles by waterproof craft paper or EPE film |
| Carton packing | Inside: each pcs pack in one plastic bag; Outside: Numbers of quantity put in wooden case |
| Wood Pallet packing | Inside: Bundles or cartons packing Outside: Numbers of bundles or cartons laden on one wood pallet |
| Customized requirement | Customized packing requirement available |
Other service details
| MOQ | 500kgs for each item ;Usually 13 - 15tons for a 20Gp ;24 - 25tons for a 40HQ |
| OEM service | Drawing , sample or design service offer by customer |
| Production Capacity | 1000 - 1500 metric monthly |
| Deep process | CNC ,drilling ,milling ,cutting ,bending ,tapping ,welding ,assembling ,punching |
| Brand Name | HENTEC ,KUNTAI |
| Certificatesand Standard | ISO9001 - 2008. ISO14001 . SGS |
| Delivery time | Die developing and sample testing :12 - 18days ; Mass production :20 - 30days after confirming sample by buyer |
| Payment Terms | T/T 30% for deposit ,balance before delivery |
| FOB port | Shanghai |
| Settlement Terms | charge by final actual weight or by drawing theoretical weight |
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1. Primary Technical Data
1) Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1) Engineering design and support.
2) Aluminium profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3) High Quality system, strictly inspection during production and whole inspection before package.
4) Good performance, product warranty for 15 years.
