Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum Alloy | Temper: | T5 / T6 |
|---|---|---|---|
| Alloy: | 6063 / 6061 | Surface: | Anodized |
| Colour: | Customized | Application: | Window |
| High Light: | aluminum extrusion profiles,extruded aluminium profiles |
||

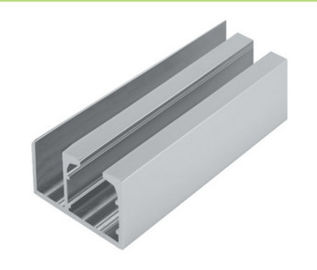

T Track Aluminum Window Extrusion Profiles ,Sliding Glass Door Channel Door Bottom Twin Track
Description :
1.Suitable for industry,architecture,transportation and so on.
2.20 years warranty.
3.High corrosion resistance.
4.5-10 years weather resistance.
5.Good wear resistance & anti-scratch.
6.Size customized.
Alloy: |
6063 | 6061 | 6060 | 6005 | 6082 | ||
| Temper : | T5 | T6 | T4 | ||||
| Standard: | DIN | AAMA | AS | CHINAGB | |||
| Certification: | ISO9001:2008. | ||||||
| Surface Finish: | Mill finish | Anodizing | Powder Coating | Wood Grain | Electrophoresis | Polished | Brushed |
| Color: | Anodizing: | Silver, bronze, champagne, titanium, nickel, golden yellow, etc. | |||||
| Anodizing thickness is up to 25um. | |||||||
| Powder Coating: | White, black, bronze, grey, green, etc . | ||||||
| Powder coating thickness is more than 60um. | |||||||
| Wood Grain: | 1.Italian MENPHIS transfer printing paper. | ||||||
| 2.AKZO NOBEL INTERPON D1010(10 years warranty):Australia ceder, Bush cherry, Chest nut, Jarrah I, Jarrah II, Western red ceder, etc. | |||||||
| 3.AKZO NOBEL INTERPON D34(5 years warranty):Bush wood, Western red, Jarrah, Snow gum, etc. | |||||||
| Electrophoresis: | Silver, nickel, golden yellow, black, champagne, etc | ||||||
| Polishing | Silver, nickel, golden yellow, black, etc | ||||||
| Brushing: | Silver, nickel, golden yellow, black, bronze, etc | ||||||
| Machining: | Cutting, punching, drilling, bending, weld, mill, CNC, etc. | ||||||
| OEM customized aluminium profiles are available. |
|||||||
Applications:
Aluminum profile used for making aluminum door .There are many colors can be selected for surface treatment .The strength can be increased by higher wall thickness . It is possible to produce according to customized design .
Specifications:
1. Primary Technical Data
1) Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1. Top Aluminium profile manufacturer for more than 10 years in China.
2. Diverse Products used in the fields of construction, industry and deep-processing.
3. Quality Control is put in the core position of our production.
4. Customized Production shows our capability in product design and process control.
5. Perfect Customer Services include careful packaging, quick delivery and good
after-sale service.
