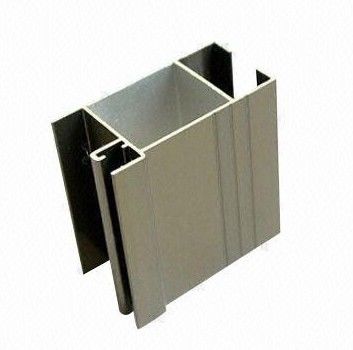

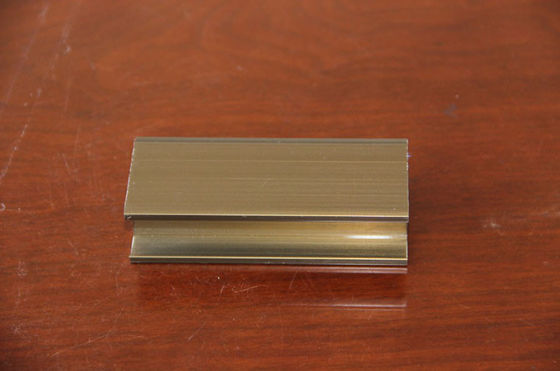

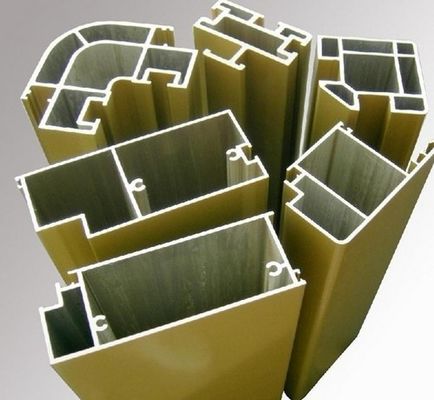

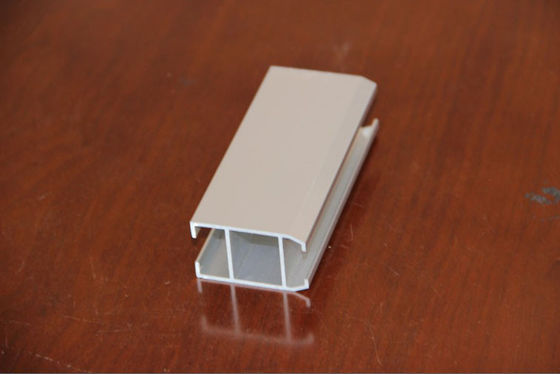

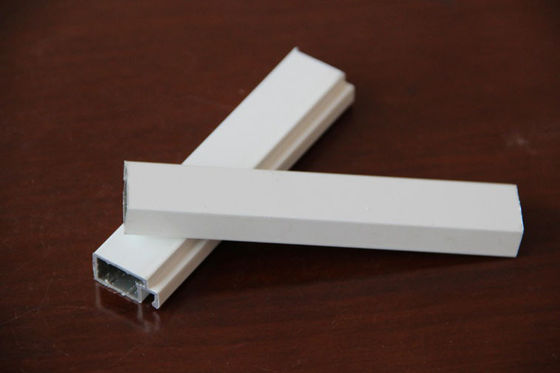

Electrophoresis Aluminum Door Extrusions

Electrophoresis Aluminum Door Extrusions
Electrophoresis Aluminum Door Extrusions
video play

Large Image :  Electrophoresis Aluminum Door Extrusions

Product Details:
Place of Origin: China
Brand Name: HT
Certification: CA ,CE
Model Number: HD50
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Packaging Details: Ep paper ,kraft and pallet
Delivery Time: 20days
Payment Terms: T/T or L/C
Supply Ability: 100 000ton each month
Detailed Product Description
Product Name: Aluminum Door Extrusions Alloy: 6063,6061,6005
Material: Aluminum Suface Treatment: Mill Finished,Anodized,etc
Temper: T4, T5, T6 ,T66 Application: Buildings,commercial,industrial
High Light:

extruded aluminium profiles

,

aluminum door frames



Electrophoresis Aluminum Door Extrusions



1.Alloy :6063,6061,6005 or according to customer’ s choice
2.Material:Aluminum
3.Suface Treatment: Mill Finished,Anodized ,Electrophoretic coated,Powder spray coated,Fluorocarbon powder spray coated /PVDF Paint, Drawbench,Steel polished,Wood grain coated /Wooden transfer .
4.Deep process:  Milling, Drilling, Bending,Cutting.
5.Application:
Used in casement doors and windows  for living room, dinner room, bathroom, office room, meeting room, restaurant, hotel, etc.
6.Color:clear, satin, bronze, black, golden, silver, other multicolor
7.Temper: T4, T5, T6 ,T66



Description



The surface treatment :

1) Mill Finished

2) Anodized : Silver ,champagne ,light bronze ,dark bronze, black, light titanium, dark titanium. Usually the thickness of the film is 10 um.

3) Electrophoretic coated : Silver , champagne ,bronze ,black ,light bronze ,dark bronze .

4) Powder spray coated :Normal color ,special color. Thickness : 60 to 80 um .

5) Fluorocarbon powder spray coated /PVDF Paint : Normal color ,special color .

6) Drawbench

7) Steel polished

8) Wood grain coated /Wooden transfer : Imported paper, domestic paper .





Technical requirements

1) Standard: GB/75237-2004, Q/320281/PDWD-2008
2) Certification: ISO9001
3) OEM service offered

4)  Material: Alloy 6063, 6061 or according to customer’ s choice

    Temper: T3, T4, T5, T6

5) Fabrication : 1. Milling; 2. Drilling; 3. Bending; 4. Cutting...

6) Window Accessories:  Using ECO friendly EPDM leather strap that would not age for a long time with a long service life.

7) MOQ : 1 ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.

8) FOB Port: Shanghai Port





Applications:

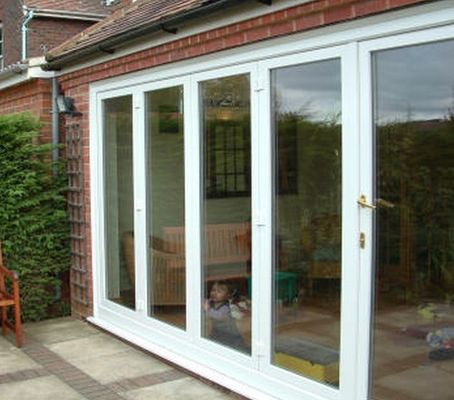

Used in casement doors and windows for living room, dinner room, bathroom, office room, meeting room, restaurant, hotel, etc.





Specifications:



1.Primary Technical Data

1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest



2)Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%




2.Specifications :

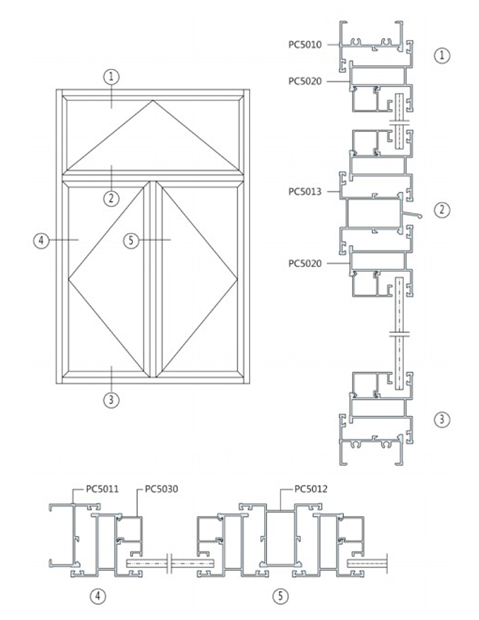

Electrophoresis Aluminum Door Extrusions 0





Competitive Advantage:



1)Engineering design and support.

2)Aluminium profiles deeply processing:cutting,punching, drilling, milling, and fabricating.

3)High Quality system, strictly inspection during production and whole inspection before package.

4)Good performance, product warranty for 15 years.

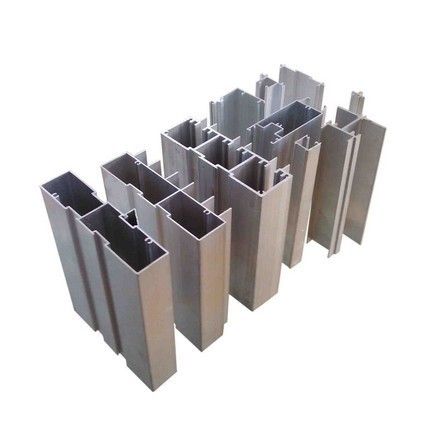

Electrophoresis Aluminum Door Extrusions 1
