Powder Painted 6061 Aluminum Window Extrusion Profiles

large.img.alt
large.img.alt
video play

Large Image :  Powder Painted 6061 Aluminum Window Extrusion Profiles

Product Details:
Place of Origin: China
Brand Name: HT
Certification: CA ,CE
Model Number: HD828
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Packaging Details: EP Paper ,kraft and pallet
Delivery Time: 20days
Payment Terms: T/T or L/C
Supply Ability: 100 000 ton each month
Detailed Product Description
Product Name: Aluminum Window Extrusion Profiles Alloy: 6063,6061,6005
Material: Aluminum Suface Treatment: Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated
Deep Process: Milling, Drilling, Bending,Cutting. Temper: T3, T4, T5, T6
High Light:

aluminum extrusion profiles

,

profile aluminum extrusions

Powder Painted 6061 Aluminum Window Extrusion Profiles



1.Alloy :6063,6061,6005 or according to customer’ s choice
2. Material:Aluminum
3.Suface Treatment: Mill Finished,Anodized ,Electrophoretic coated,Powder spray coated,Fluorocarbon powder spray coated /PVDF Paint, Drawbench,Steel polished,Wood grain coated /Wooden transfer .
4.Deep process:  Milling, Drilling, Bending,Cutting.






Description:



The surface treatment :



1) Mill Finished

2) Anodized: Silver, champagne, light bronze, dark bronze, black, light titanium, dark titanium. Usually the thickness of the film is 10 um.

3) Electrophoretic coated: Silver, champagne, bronze, black, light bronze, dark bronze.

4) Powder spray coated  Normal color, special color. Thickness: 60 to 80 um.

5) Fluorocarbon powder spray coated /PVDF Paint: Normal color, special color.

6) Drawbench

7) Steel polished

8) Wood grain coated /Wooden transfer: Imported paper, domestic paper.





Technical requirements



1) Standard: GB/75237-2004, Q/320281/PDWD-2008
2) Certification: ISO9001
3) OEM service offered

4) Material: Alloy 6063, 6061 or according to customer’ s choice

    Temper: T3, T4, T5, T6

5) Fabrication: 1. Milling; 2. Drilling; 3. Bending; 4. Cutting...

6) Window Accessories:  Using ECO friendly EPDM leather strap that would not age for a long time with a long service life.

7)MOQ: 1 ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.

8)FOB Port: Shanghai Port

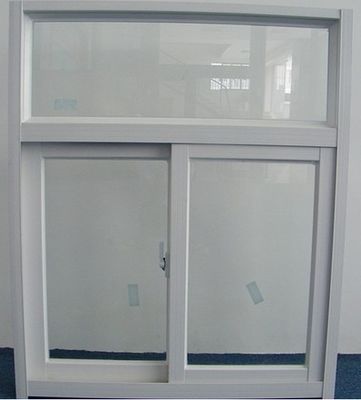

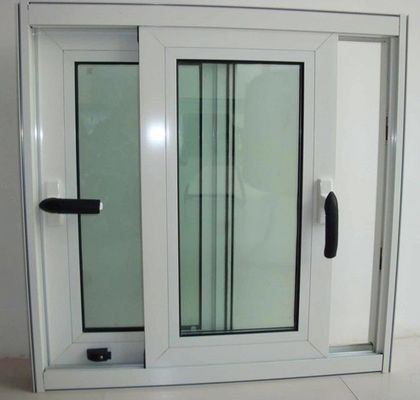

Applications:



Sliding aluminum windows, also called aluminum sliding windows, are widely used as sliding closet windows, sliding cabinet windows, sliding bathroom windows, exterior sliding windows and sliding aluminum folding windows, and so on. They have beautiful appearance and smooth surface, and are wind proofing, water proofing, and anti-erosion.





Specifications:



1.Primary Technical Data



1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest



2)Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%



2. Specifications :

Powder Painted 6061 Aluminum Window Extrusion Profiles 0





Competitive Advantage:



1)Engineering design and support.

2)Aluminium profiles deeply processing:cutting,punching,drilling,milling,and fabricating.

3)High Quality system, strictly inspection during production and whole inspection before package.

4)Good performance, product warranty for 15 years.



Powder Painted 6061 Aluminum Window Extrusion Profiles 1
