Product Details:
Payment & Shipping Terms:
|

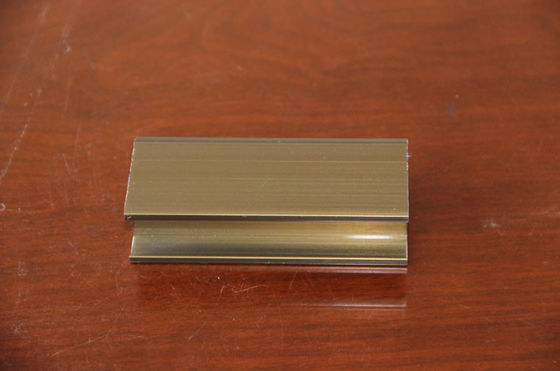

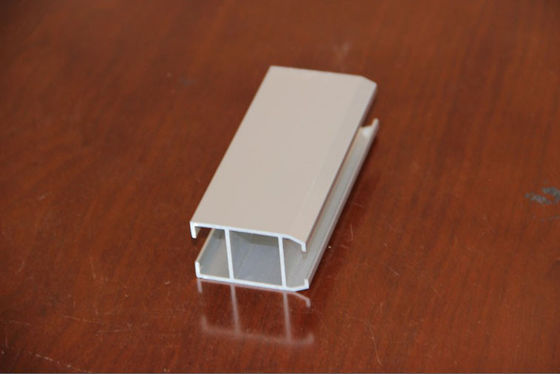

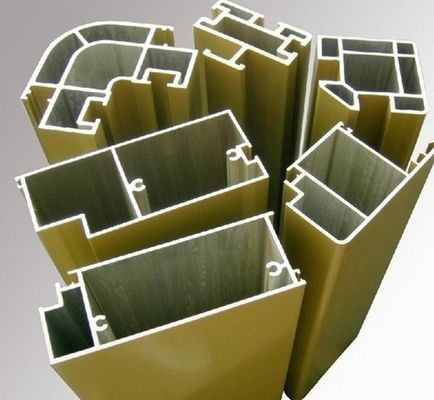

| Product Name: | Aluminum Door Extrusions | Alloy: | 6063,6061,6005 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized，etc |
| Temper: | T4, T5, T6 ,T66 | Application: | Buildings,commercial,industrial |
| High Light: | extruded aluminium profiles,aluminum extrusion profiles |
||
1. Alloy :6063,6061,6005 or according to customer’ s choice
2. Material:Aluminum
3. Suface Treatment: Mill Finished,Anodized ,Electrophoretic coated,Powder spray coated,Fluorocarbon powder spray coated /PVDF Paint
Description
The surface treatment :
1) Mill Finished
2) Anodized : Silver ,champagne ,light bronze ,dark bronze, black, light titanium, dark titanium. Usually the thickness of the film is 10 um.
3) Electrophoretic coated : Silver , champagne ,bronze ,black ,light bronze ,dark bronze .

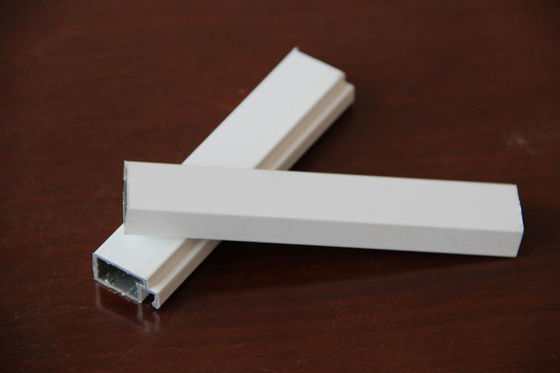

4) Powder spray coated :Normal color ,special color. Thickness : 60 to 80 um .
5) Fluorocarbon powder spray coated /PVDF Paint : Normal color ,special color .
6) Drawbench
7) Steel polished
8) Wood grain coated /Wooden transfer : Imported paper, domestic paper .
Technical requirements
1) Standard: GB/75237-2004, Q/320281/PDWD-2008
2) Certification: ISO9001
3) OEM service offered
4) Material: Alloy 6063, 6061 or according to customer’ s choice
Temper: T3, T4, T5, T6
5) Fabrication : 1. Milling; 2. Drilling; 3. Bending; 4. Cutting...
6) Window Accessories: Using ECO friendly EPDM leather strap that would not age for a long time with a long service life.
7) MOQ : 1 ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.
8) FOB Port: Shanghai Port
Applications:

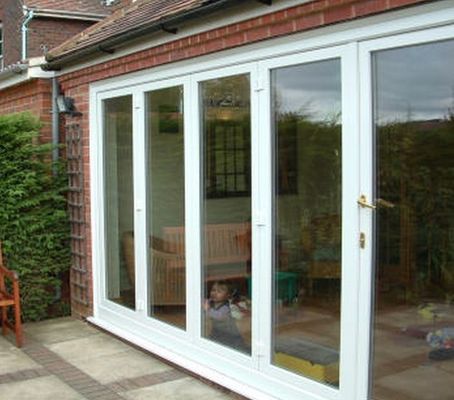

Used in casement doors and windows for living room, dinner room, bathroom, office room, meeting room, restaurant, hotel, etc.
Specifications:
1. Primary Technical Data
1) Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
2. Specifications :
Competitive Advantage:
1) Engineering design and support.
2) Aluminium profiles deeply processing:cutting,punching, drilling, milling, and fabricating.
3) High Quality system, strictly inspection during production and whole inspection before package.
4) Good performance, product warranty for 15 years.
