Product Details:
Payment & Shipping Terms:
|
Product Name: | Aluminum Solar Panel Frame | Alloy: | 6063,6061,6005 |
---|---|---|---|
Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated |
Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T4, T5, T6 |
Highlight: | aluminium solar panel frame,solar panel aluminum frame |

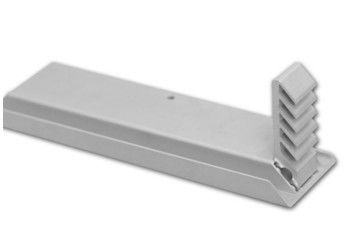

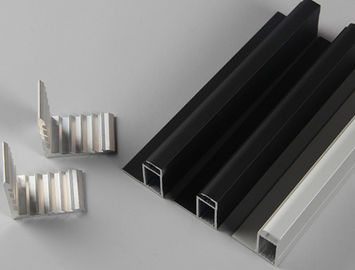

Oxidized Aluminum Solar Panel Frame / Silvery / Black Anodized / Powder Painted
Company Information:
Hentec Industy Co.,Ltd is the leading solar solution provider for solar mounting systems. We design, manufacture solar mounting systems for solar energy projects. As a specialist in ground mount, roof mount, and custom designed specialty solar structures, we focus on providing best-in-class solar racking systems and project management capabilities to serve owners and integrators.
Leveraging more than15years of experience in the commercial design-build specialty structures market, Our services include complete design, signed and sealed engineering drawings, high-tech manufacturing, and end-to-end technical support to help you solve the toughest challenges in the industry.
Solar panels (photovoltaic modules) aluminum frame
A. Solar module aluminum frame Size Description:
1) 17 * 17, 20 * 20, 23 * 17, 25 * 25, 28 * 25mm, etc., suitable for solar street lamps and other small solar power generation equipment;
2) 30 * 25, 35 * 30mm, suitable for 30-100W solar modules;
3) 35 * 35mm, suitable for 80-180W solar modules, length is generally 1580 * 808mm (the most common frame size);
4) 40 * 35mm, suitable for 120-200W solar modules, length is generally 1580 * 808mm;
5) 45 * 35mm, suitable for 180-250W solar modules, length is generally 1580 * 808 and 1650 * 992mm;
6) 50 * 35mm, suitable for 200-300W solar modules, length is generally 1650 * 992 and 1960 * 992mm;
7) Many other customized according to customer's special sizes, such as 40 * 28mm, 40 * 30mm, 42 * 35mm, 46 * 30mm, 46 * 35mm, 46 * 40mm, 46 * 48mm, 46 * 50mm, 46 * 60mm, 60 * 35mm and so on.
B. Two types:
1) 90 Angle (screw border)
2) 45 corner (Corner Borders)
C. Surface treatment:
1) Anodized (silver, bronze, black, gold, silver, other colors)
2) Electrophoresis
3) powder coating, PVDF, polishing, sand blasting
Standard: GB/T5237 - 2004, Q/320281PDW01-2008
Specifications :
Item |
Aluminum Extrusion Solar Panel Frame |
Material |
Alloy 6063, 6061 or according to customer’ s choice |
Temper |
T3, T4, T5, T6 |
Surface |
Anodize (clear, satin, bronze, black, golden, silver, other multicolor) , electrophoresis, powder coating, PVDF coating, wood grain painting, etc. |
Color |
Any color based on Standard Germany RAL Mark |
MOQ |
1 ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container. |
Profile type |
used as the frame of solar panel |
Fabrication |
1. Milling; 2. Drilling; 3. Bending; 4. Cutting. |
Moulding |
1. Using our moulds, free; 2. Using customer’ s drawing, opening mould fee need to be paid. |
Mould size |
25*25, 35*35,30*46, 46*50, 30*25, 40*40 ,50*35,etc.We can provide customized aluminum solar frames upon to customers' request. |
FOB Port |
Shanghai, etc. |
Our Advantages!
1. 22 years' experiences of manufacturing .
2. STRONG R&D: Help customers finalize the design, strong tool design ability,excellent pressing and surface treament technology.
3.Strict quality management: ISO Administration system.
4. 24 hours on-line communication.Professional, Patient, Flexible.
5. High capacity of manufaturing and wide range of products.
6. Be able to provide secondary fabricating.
7. Small order is accepted.
8. Be able to provide one-stop supply solution.
9. Multiple payment methods: TT, LC. DP,OA.
Applications:
Competitive Advantage:
In addition to high quality ,we at Hentec office offer customer complete service .Our aluminum solar frame comes with a 15 year warranty .Maintenance service is also available .
