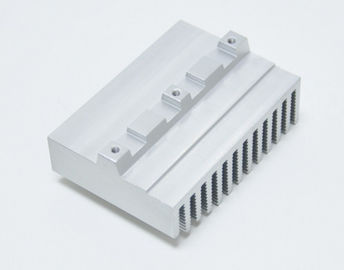

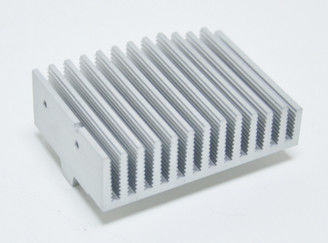

Extruded Aluminum Heatsink Extrusion Profiles With Anodizing / CNC Machining

China Hentec Industry Co.,Ltd certification
China Hentec Industry Co.,Ltd certification
Thanks a lot for your support for more than 8 years ,we are really appreciate for the good quality of the products and the quality service .

—— James Scott

We have received the goods , they look perfect ,thanks for the help of Team Hentc .

—— Ane Unamuno

Le succès de ce nouveau projet dépend du support de l’équipe HENTEC en termes de technologie de traitement. Merci à HENTEC de nous aider à contrôler les coûts de manière efficace et à répondre à nos exigences en termes de haute qualité. Nous nous réjouissons de notre future collaboration!

—— Yann Pauwels

I'm Online Chat Now

Extruded Aluminum Heatsink Extrusion Profiles With Anodizing / CNC Machining

Extruded Aluminum Heatsink Extrusion Profiles With Anodizing /  CNC Machining
Extruded Aluminum Heatsink Extrusion Profiles With Anodizing /  CNC Machining Extruded Aluminum Heatsink Extrusion Profiles With Anodizing /  CNC Machining

Large Image :  Extruded Aluminum Heatsink Extrusion Profiles With Anodizing / CNC Machining

Product Details:
Place of Origin: China
Brand Name: HT
Certification: CA ,CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Packaging Details: Ep paper ,kraft ,pallet
Delivery Time: 20days
Payment Terms: T/T ,L/C
Supply Ability: 100 000ton each month
Detailed Product Description
Product Name: Aluminum Heatsink Extrusion Profiles Alloy: 6063,6061,6005
Material: Aluminum Suface Treatment: Electrophoretic Coated,Powder Spray Coated
Deep Process: Milling, Drilling, Bending,Cutting Temper: T5, T6 ,T66
High Light:

aluminium heatsink extrusion

,

aluminium extrusion heat sink profiles

Descrition:

Extruded Aluminum Heatsink Extrusion Profiles With Anodizing / CNC Machining

Our Advantages:
1. 15+ years experience in providing ONE-STOP customized aluminium extrusion and machining solution; 11+ years of exporting to 40+ countries;
2. ISO: 9001:2008, RoHS, SGS, Reach.
4. 100% new material
5. Competitive prices with short lead-time for both tooling and parts, because we do everything in-house
6. Effective and strong technical support (30+ engineers) and excellent sales services (20+ sales representatives).

Our products:

TypeRelated ProductsApplication
Custom design extrusions and value-added extruded componentsenclosure, panel, motor frames, automotive parts, heat sink/radiator, container supports, pneumatic cylinder, aluminium tubes/bar/angle, etc.automotive, electronics, green energy (solar, EDLC, LED, etc.), security, audio video, lighting, furniture, hardware, sanitary ware, equipment, etc.
ODM productsaluminium pickup tray body, aluminium structural tents, aluminium railing system and automatic partition system



Item

Anodized Aluminum Heatsink Extrusion Profiles , 6063 / 6061 / 6005

Alloy

6061,6060,6063,6005 etc

Temper

 T4, T5, T6,T66

Finishing

Mill finished, Anodized, Electrophoresis, Powder coated, Painted, Sliver matt, Sand blasted, PVDF, Silkscreened etc.

Shape

Round, Square, Triangle, Rectangle etc...and Customized shapes are welcomed.

Technology Supports

1,Engineering design
2,AutoCAD, pro/e ,UG drawing

Standard for Extrusion

GB /T5237-2008 .EN-755-2/3/6/8, BS-1474, BS 1161 (British Standards),JIS  H4100 (Japanese Standard),AS/NZS1866-1997 (Australian New Zealand Standard)

Machining & Fabrication

Cutting, Shearing, Deburring, Tumbling, Punching, Drilling, Tapping, Chamfering, Cold-drawing, Honing, Bending, Stamping, Forming, Polishing, Grinding, Brushing, Sandblasting, Welding Numerical Control Lathing, Milling, Sophisticated CNC Precision Machining

Packing method

1. Standard packing: Eachprofile will be  wrapped in the EPE sheet  in order to protect the profiles' surfaces, kraft paper wrapped in bundles.
2. Special packing: wooden cases
3. pallet
4. EPE+carton box+pallet or wooden case
5. Customized packing methods are welcomed.
6.13 tons to a 20 feet container, 20 tons to a 40 feet container




Order,payment,terms,shipment
1, Minimum order: 500 kg per trial order 1 piece of sample free of charge provided by approval and kept for future mass production.
2, Sample Lead Time: 25 working days(15 days for making the tool and 10 days making the samples. Before sending the samples to customer, samples should pass strict test in our lab. )Production Lead time: it depends on customers' order quantity ( 30 working days after deposit).
3, Payment :30% T/T in advance the balance after the copy of BOL .


Specifications:
1. Primary Technical Data
1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest


2) Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%



Competitive Advantage:
1, This aluminum extraction profile for heat sink offers excellent engineering design and technical support .
2, With the deep processing ,it will be cut ,punched ,drilled ,milled and then fabricated into the finished product .
3, It is guaranteed on the excellent performance for as long as 15 years .




Tag

extruded aluminum heat sink

aluminum heatsink extrusion profiles
