Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Aluminium Profile | Alloy: | 6063，6061 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized Powder Coated，Drawbench,Steel Polished |
| Deep Process: | Milling, Drilling, Cutting | Temper: | T5, T6 |
| High Light: | aluminium extrusion frame system,custom aluminum extrusions |
||

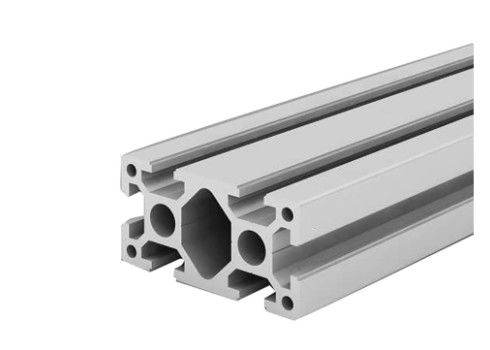

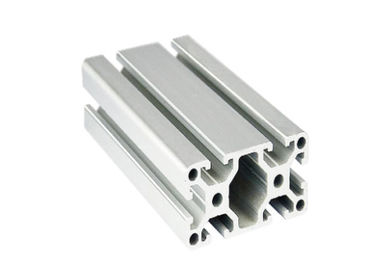

OEM Industrial Aluminum Extrusion Profiles For Assembly Line
We have Germany imported machines and professional engineers.In this case,we can do high technics customized aluminium alloy extrusion and profile as per your drawings or samples.
Product Specification
| Material | T4 - T6 6063 aluminium alloy etc. |
| Surface treatment | Can be customized, such as Mill finished, Anodized, Electroplating, Powder coated, Painted, Silver matt, Sand blasted, PVDF etc. |
| Aluminium Profile Size | 15/20/30/40/45/50/60/80/90/100/160 series etc. |
| V Slot, T Slot size | 6mm,8mm,10mm |
| Color | Standard: black, silver and grey. Can be customized (RAL color numbers) |
| Surface | Mill finish, Anodizeding, Sand Blasting, Powder coating, etc. |
| Deep processing | Cutting Size, Drilling holes, Adding mounting bracket, Flanged side panels, etc. |
| Application of Aluminium Profile | Building, Industrial, Machinery, Automation parts, CNC |
| Certification | ISO9001 |
| Shipping Term | EXW, FOB, C&F or others can be discussed. |
Chemical Composition of aluminum ally:
| TABLE OF CHEMICAL COMPOSITION OF ALUMINUM ALLOY | |||||||||
Alloy |
Si |
Mg |
Fe |
Cu |
Mn |
Zn |
Cr |
Ti |
Al |
6063 |
0.2-0.6 |
0.45-0.9 |
< 0.35 |
< 0.1 |
< 0.1 |
< 0.1 |
< 0.1 |
< 0.1 |
Surplus |
6061 |
0.4-0.8 |
0.8-1.2 |
< 0.7 |
0.15-0.4 |
< 0.15 |
< 0.25 |
0.04-0.35 |
< 0.15 |
Surplus |
| 6005 | 0.5-0.9 | 0.4-0.7 | 0.35 | 0.3 | 0.50 | 0.2 | 0.3 | 0.1 | Surplus |
6082 |
0.7-1.3 | 0.6-1.2 | 0.5 |
≤0.1 |
0.4-1.0 | ≤0.2 |
≤0.25 |
< 0.1 |
Surplus |
ADODIZINMG QUALITY |
||||
Grade |
corrosion resistance |
abrasive resistance |
||
CASS test |
alkaline dropping test |
sandtrial Abrasion coefficient f,g/um |
||
hours |
grade |
|||
AA10 |
16 |
≥ 9 |
≥ 50 |
≥ 300 |
AA15 |
32 |
≥ 9 |
≥ 75 |
≥ 300 |
AA20 |
56 |
≥ 9 |
≥ 100 |
≥ 300 |
AA25 |
72 |
≥ 9 |
≥ 125 |
≥ 300 |
Introduction Of Constmart Profile:
1. Material: 6063,6061,6060,etc.
2. Temper: T5 or T6
3. Finish: Mill finish, anodizing, powder coating, electrophoresis, wooden transfer or pvdf/carbon-flouride coated, polishing, brushing, sand blasting
4. Various colors: Silver, bronze, black, gold, blue,grey, champagne, bright, etc.
5. Machining: Cutting, punching, drilling, tapping, milling, bending, welding, CNC etc.
6. Various in styles and sizes:
A) Aluminum alloy bars: 6000 series, normal material such as 6063,6005,6061,6060, special materials such as 6082 etc.
B) Aluminum profiles:
---General aluminum profiles (various shapes of pipes/tubes, angles, T or U shapes etc.)
--- Industrial aluminum profiles ( TV frames, Rim for bicycles and motorcycles, Heat sink profiles, Furniture, Ladder, Guide Rail, Leisure materials, Shower Room, Solar Module Frame, Motor Shell, Pipeline Integration etc.)
--- Construction aluminum profiles
7. Certification: ISO9001,SGS,ROHS,TUV
8. Strong technical development ability, can provide high intensity and high ductility aluminum profiles, to meet customers' different requirements.
9. OEM service available, customized design available
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1. Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2)Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1) Engineering design and support.
2) Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3) High Quality system, strictly inspection during production and whole inspection before package.
4) Good performance, product warranty for 15 years.
