Product Details:
Payment & Shipping Terms:
|
| Product Name: | Aluminum Profile | Alloy: | 6063,6061,6005 |
|---|---|---|---|
| Suface Treatment: | Fluorocarbon Powder Spray Coated /PVDF Paint, Drawbench,Steel Polished | Material: | Aluminum |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T3, T4, T5, T6 |
| Highlight: | aluminium structural sections,structural aluminium extrusions |
||

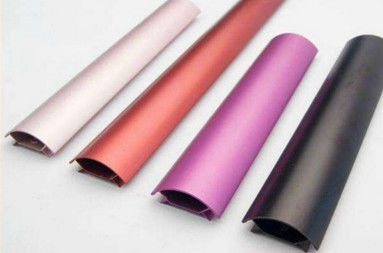

Colored Anodizing 6061 Aluminum Profile , Customized Shape , With Finished Machining
Description:
| Description | Aluminum archeticture extrusion profile | |
| Alloy/Temper | 6063-T5/6060-T5; 6063-T6/6060-T6 | |
| Surface treatment | Mill finishes; Anodized; Powder coated; Wooden grain, Machine/Acid polished and etc | SGS TEST APPROVAL |
| Standard apply | EN755; DIN; ASTMB221; GB5237-2008 and etc | SGS TEST APPROVAL |
| Price | SMM/LME Primary aluminum price + the most competitive conversion cost | |
| Delivery timetable | sample: within 15 days; order: within 15 -20 days | SGS TEST APPROVAL |
| Payment term | 20% deposit, the balance pay against B/L copy within 7 days | SGS TEST APPROVAL |
| Packing standard | Protected film and pearl cotton inside and shrink film outside | SGS TEST APPROVAL |
| Guarantee term | If the shipped products can not meet required, the total order amount will be refund back without delay, or arrange new replacement cargoes instead | SGS TEST APPROVAL |
The surface treatment :
1) Mill Finished
2) Anodized: Silver, champagne, light bronze, dark bronze, black, light titanium, dark titanium. Usually the thickness of the film is 10 um.
3) Electrophoretic coated: Silver, champagne, bronze, black, light bronze, dark bronze.
4) Powder spray coated Normal color, special color. Thickness: 60 to 80 um.
5) Fluorocarbon powder spray coated /PVDF Paint: Normal color, special color.
6) Drawbench
7) Steel polished
8) Wood grain coated /Wooden transfer: Imported paper, domestic paper.
Technical requirements
1) Standard: GB/75237-2004, Q/320281/PDWD-2008
2) Certification: ISO9001
3) OEM service offered
4) Material: Alloy 6063, 6061 or according to customer’ s choice
Temper: T4, T5, T6 , T66
5) Fabrication: 1. Milling; 2. Drilling; 3. Bending; 4. Cutting...
6) Window Accessories: Using ECO friendly EPDM leather strap that would not age for a long time with a long service life.
7)MOQ: 1 ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.
8)FOB Port: Shanghai Port
Applications:
Sliding aluminum windows, also called aluminum sliding windows, are widely used as sliding closet windows, sliding cabinet windows, sliding bathroom windows, exterior sliding windows and sliding aluminum folding windows, and so on. They have beautiful appearance and smooth surface, and are wind proofing, water proofing, and anti-erosion.
Specifications:
1.Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2)Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1)Engineering design and support.
2)Aluminium profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and whole inspection before package.
4)Good performance, product warranty for 15 years.
