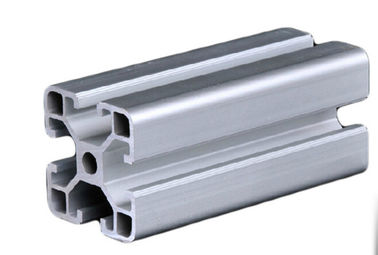

Anodized Industrial Aluminium Profile For Assembly Stage / Assembly Line

China Hentec Industry Co.,Ltd certification
China Hentec Industry Co.,Ltd certification
Thanks a lot for your support for more than 8 years ,we are really appreciate for the good quality of the products and the quality service .

—— James Scott

We have received the goods , they look perfect ,thanks for the help of Team Hentc .

—— Ane Unamuno

Le succès de ce nouveau projet dépend du support de l’équipe HENTEC en termes de technologie de traitement. Merci à HENTEC de nous aider à contrôler les coûts de manière efficace et à répondre à nos exigences en termes de haute qualité. Nous nous réjouissons de notre future collaboration!

—— Yann Pauwels

I'm Online Chat Now

Anodized Industrial Aluminium Profile For Assembly Stage / Assembly Line

Anodized Industrial Aluminium Profile For Assembly Stage / Assembly Line
Anodized Industrial Aluminium Profile For Assembly Stage / Assembly Line

Large Image :  Anodized Industrial Aluminium Profile For Assembly Stage / Assembly Line

Product Details:
Place of Origin: China
Brand Name: Hentec
Certification: ISO14001:2004, ISO9001:2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Packaging Details: Ep paper ,kraft ,pallet
Delivery Time: 20days
Payment Terms: T/T ,L/C
Supply Ability: 100 000ton each month
Detailed Product Description
Product Name: Industrial Aluminium Profile Alloy: 6063
Material: Aluminum Suface Treatment: Fluorocarbon Powder Spray Coated /PVDF Paint, Drawbench,Steel Polished
Deep Process: Milling, Drilling, Bending,Cutting Temper: T4, T5, T6
High Light:

modular aluminium profile system

,

aluminium extrusion frame system

6063 - T6 Industrial Aluminium Profile For Assembly Stage / Assembly Line



(1).Suitable for industry,architecture,transportation and so on.
(2).20 years warranty.
(3).High corrosion resistance.
(4).5-10 years weather resistance.
(5).Good wear resistance & anti-scratch.
(6).Size customized.



Aolly 6063 6061 6060 6005 6082
Temper T4 T5 T6
Standard DIN AAMA AS CHINAGB
Certification ISO9001: 2008
Surface Finish Mill finish Anodizing Powder Coating Wood Grain Electrophoresis Polished Brushed
Color Anodizing Silver, bronze, champagne, titanium, nickel, golden yellow, etc.
Anodizing thickness is up to 25um
Powder Coating White, black, bronze, grey, green, etc
Powder coating thickness is more than 60um
Electrophoresis Silver, nickel, golden yellow, black, champagne, etc
Polishing Silver, nickel, golden yellow, black, etc
Brushing Silver, nickel, golden yellow, black, bronze, etc
Machining Cutting, punching, drilling, bending, weld, mill, CNC, etc.
OEM customized aluminium profiles are available.

 Anodized Industrial Aluminium Profile For Assembly Stage / Assembly Line 0



Introduction Of Constmart Profile:


1. Material: 6063,6061,6060,6005,6005A,etc.
2. Temper: T5 or T6
3. Finish: Mill finish, anodizing, powder coating, electrophoresis, wooden transfer or pvdf/carbon-flouride coated, polishing, brushing, sand blasting
4. Various colors: Silver, bronze, black, gold, blue,grey, champagne, bright, etc.
5. Machining: Cutting, punching, drilling, tapping, milling, bending, welding, CNC etc.
6. Various in styles and sizes:
A) Aluminum alloy bars: 6000 series, normal material such as 6063,6005,6061,6060, special materials such as 6082 etc.
B) Aluminum profiles:
---General aluminum profiles (various shapes of pipes/tubes, angles, T or U shapes etc.)
--- Industrial aluminum profiles ( TV frames, Rim for bicycles and motorcycles, Heat sink profiles, Furniture, Ladder, Guide Rail, Leisure materials, Shower Room, Solar Module Frame, Motor Shell, Pipeline Integration etc.)
--- Construction aluminum profiles ( Aluminum doors& windows, Sliding Windows, JB50A Door Window, Curtain Wall Frame etc.)
7. Certification: ISO9001,SGS,ROHS,TUV
8. Strong technical development ability, can provide high intensity and high ductility aluminum profiles, to meet customers' different requirements.
9. OEM service available, customized design available
10. Surface available: Mill finish, Anodized, Powder Coating, Wooden transfering, electrophoresis, heat insulation, PVDF, and deep processing
11. Certificate: ISO9001, ISO14001





Applications:



Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.





Anodized Industrial Aluminium Profile For Assembly Stage / Assembly Line 1



Specifications:



1.Primary Technical Data



1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest



2)Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%





Anodized Industrial Aluminium Profile For Assembly Stage / Assembly Line 2





Competitive Advantage:



1)Engineering design and support.

2)Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.

3)High Quality system, strictly inspection during production and whole inspection before package.

4)Good performance, product warranty for 15 years.



Anodized Industrial Aluminium Profile For Assembly Stage / Assembly Line 3
