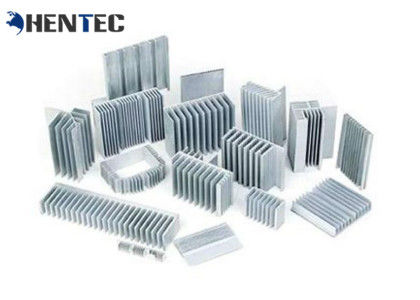

Led Light Extruded Aluminum Heatsink , 6061 Alloy Aluminium Heatsink Extrusion

Led Light Extruded Aluminum Heatsink , 6061 Alloy Aluminium Heatsink Extrusion
Led Light Extruded Aluminum Heatsink , 6061 Alloy Aluminium Heatsink Extrusion

Large Image :  Led Light Extruded Aluminum Heatsink , 6061 Alloy Aluminium Heatsink Extrusion

Product Details:
Place of Origin: China
Brand Name: HENTEC
Certification: CA ,CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Packaging Details: Ep paper ,kraft ,pallet
Delivery Time: 20days
Payment Terms: T/T ,L/C
Supply Ability: 100 000ton each month
Detailed Product Description
Product Name: Aluminum Heatsink Extrusion Profiles Alloy: 6063,6061
Material: Aluminum Suface Treatment: Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated
Deep Process: Milling, Drilling, Bending,Cutting Temper: T4, T5, T6 ,T66
High Light:

aluminium heatsink extrusion

,

aluminium extrusion heat sink profiles

Silvery Anodized Aluminum Heatsink Extrusion Profiles For Led Light





Production Information

Material: aluminum alloy
Description extruded aluminum profile
Size: 6000mm / 3000mm, also custom available
Surface Treatment mill finish, polished, anodizing, power coating, wood grain painting, sand blasting,electrophoresis etc.
Color silver, black, glossy, bronze, gold, champagne, SS and so on
Packing Kraft paper, carton box, protection foam heat contracted plastic film, poly-bag, etc.
Application ambry ,kitchen cabinet,cabinet door
Delivery Detail 15-30 work days / depend on quantity and drawings
New Molding 3-10days / depend on design and drawings
Quality Quality complies with international standard.
Design OEM or ODM is available, pls send us your drawing



Technology Supports

Engineering Design.

Quality Standard: China GB, according to the Drawing and the Customer's Details.



Order & Payment & Shipment

Opening Time of the new Die: 5-10 days.

Sample: 10-15days.

Delivery: 10-30 Days.

MOQ: 3 Tons.

Payment Term: 40% T/T in advance and balance 60% against the copy of original B/L.

Price: $2500/T - $3500/T, the most competitive price.

Port: Shanghai

Trade Terms: FOB, CIF, EXW, etc.


Specifications:
1. Primary Technical Data
1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest


2) Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%




Our Advantages:
1. 20 years experience in providing ONE-STOP customized aluminium extrusion and machining solution; 11+ years of exporting experience ;
2. ISO: 9001:2008,  RoHS, SGS, Reach, D&B
3. 100% new material
4. Competitive prices with short lead-time for both tooling and parts, because we do everything in-house
5. Effective and strong technical support (30+ engineers) and excellent sales services (20+ sales representatives).
6. Sufficient production capacity (25 extrusion lines; 5+ CNC machines ).
7. Efficient communication (48-hour quote lead time).

Led Light Extruded Aluminum Heatsink , 6061 Alloy Aluminium Heatsink Extrusion 0
