Product Details:
Payment & Shipping Terms:
|
| Product Name: | Aluminum Extrusion Bar | Alloy: | 6063,6061,6005 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized , Etc |
| Temper: | T4, T5, T6 ,T66 | Application: | Buildings,commercial,industrial |
| High Light: | construction aluminium profile,extruded aluminum shapes |
||

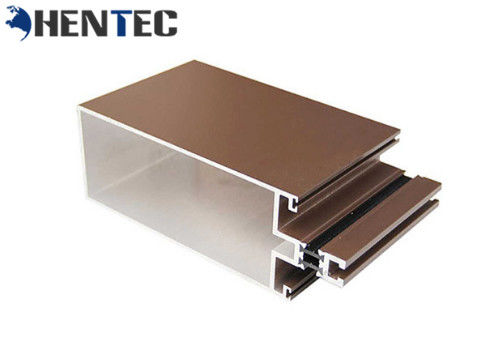

Customized Sections / Construction Aluminum Profile For Building / 6063-T5 / 6063-T6
Hentec Industry Co.,Ltd , owning the most species-wide of construction aluminum profiles in China . Build a complete production chain from extrusion to end products like aluminium profiles and windows and doors and curtain wall. Deep Processing Ability for aluminum and CNC: Fabrication, Drill hole, milling, de-burr, chamfer, stretch bending, welding and so on.
1. Alloy :6063,6061,6005 or according to customer’ s choice
2. Material:Aluminum
3. Suface Treatment: Mill Finished,Anodized ,Electrophoretic coated,Powder spray coated,Fluorocarbon powder spray coated /PVDF Paint, Drawbench,Steel polished,Wood grain coated /Wooden transfer .
4. Deep process: Milling, Drilling, Bending,Cutting
Description:
| 1 | Business type: | Manufacturer |
| 2 | Standard: | GB 5237-2008 |
| 3 | Product series: | Aluminium profile for building Material and industrial materail |
| 4 | Price: | Based on the aluminum Ingot + processing Fee |
| 5 | Payment term: | T/T, L/C at sight |
| 6 | Surface treatment: | Anodizing, Powder coating, electrophoresis, wooden finish |
| 7 | Specification: | A. Alloy: 6063, 6060, 6061, 6005 |
| B. State: T5/T6 | ||
| C. Length: 1m-7m | ||
| D. Normal Anodizing thickness: 8-12 micro | ||
| E. Normal powder coating thickness: 60-100 micro | ||
| F. Tensile strength: ≥ 16 mpa | ||
| G. Yield strength: ≥ 110 mpa | ||
| H. Extensibility: ≥ 8% | ||
| I. Hardness(HW): ≥ 8 | ||
| 8 | Packing: | ordinary PE film or according to customer's requirements |
| 9 | MOQ: | 1*20' FCL |
| 10 | Delivery time: | 15-30 days if the mould is ready |
| 11 | Normal order sequence: | 1. Confirm the drawings, colors and price; |
| 2. If without the mould should pay for the mould charge | ||
| 3. confirm the mould pictures | ||
| 4. Make the payment of 30% deposit, start production; |
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1. Primary Technical Data
1) Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1) Engineering design and support.
2) Aluminium profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3) High Quality system, strictly inspection during production and whole inspection before package.
4) Good performance, product warranty for 15 years.
