Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Aluminium Profile | Alloy: | 6063 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Fluorocarbon Powder Spray Coated /PVDF Paint, Drawbench,Steel Polished |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T4, T5, T6 |
| High Light: | modular aluminium profile system,aluminium extrusion frame system |
||

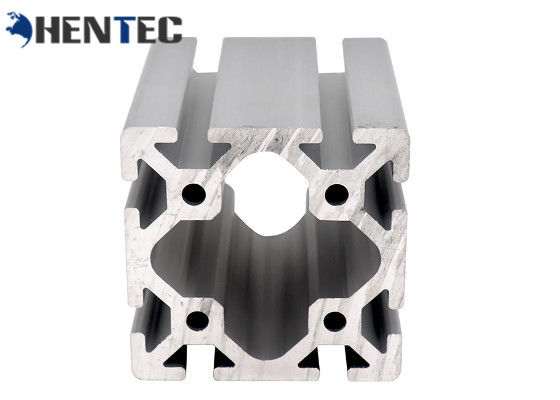

Silvery Anodized Aluminium Profile System T Slot Aluminium Extrusion
| Aluminum alloy | General alloy : 6063 , 6061 etc. |
| Special alloy:6005 , 6060 , 6082 etc | |
| Temper | T4,T5,T6,T66 etc |
| Standard | GB5237-2008 Chinese Standard |
| Surface Finish | Mill finish |
| Sandblasting | |
| Polishing | |
| Brushing | |
| Anodizing | |
| Electrophoresis | |
| Power coating | |
| Fluorocarbon Coating/PVDF Coating | |
| Wood Imitation: Normal Color, Special Color,3D wooden grain | |
| Fabrication Abilities | Precious Cutting,Drilling,Tapping,Milling,Punching,Bending,Welding.etc |
| Payment terms | 30% deposit before starting order,70% Balance before shipping by TT. |
| Packing | EPE,Kraft Paper,Protect film,Shrink film,Wooden frame |
| Production time | 15-30days after sample confirmation & payment arrival |
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1.Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2)Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1)Engineering design and support.
2)Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and whole inspection before package.
4)Good performance, product warranty for 15 years.
