Champagne / Light Bronze Aluminium Extruded Profiles Elevator Frame 6063 6061 Mill Finished

China Hentec Industry Co.,Ltd certification
China Hentec Industry Co.,Ltd certification
Thanks a lot for your support for more than 8 years ,we are really appreciate for the good quality of the products and the quality service .

—— James Scott

We have received the goods , they look perfect ,thanks for the help of Team Hentc .

—— Ane Unamuno

Le succès de ce nouveau projet dépend du support de l’équipe HENTEC en termes de technologie de traitement. Merci à HENTEC de nous aider à contrôler les coûts de manière efficace et à répondre à nos exigences en termes de haute qualité. Nous nous réjouissons de notre future collaboration!

—— Yann Pauwels

I'm Online Chat Now

Champagne / Light Bronze Aluminium Extruded Profiles Elevator Frame 6063 6061 Mill Finished

Champagne / Light Bronze Aluminium Extruded Profiles Elevator Frame 6063 6061 Mill Finished
Champagne / Light Bronze Aluminium Extruded Profiles Elevator Frame 6063 6061 Mill Finished Champagne / Light Bronze Aluminium Extruded Profiles Elevator Frame 6063 6061 Mill Finished

Large Image :  Champagne / Light Bronze Aluminium Extruded Profiles Elevator Frame 6063 6061 Mill Finished

Product Details:
Place of Origin: China
Brand Name: HENTEC
Certification: CA ,CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Packaging Details: EP Paper ,kraft and pallet
Delivery Time: 20days
Payment Terms: T/T or L/C
Supply Ability: 100 000 ton each month
Detailed Product Description
Product Name: Aluminum Window Extrusion Profiles Alloy: 6063,6061,6005
Material: Aluminum Suface Treatment: Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated
Deep Process: Milling, Drilling, Bending,Cutting. Temper: T3, T4, T5, T6
High Light:

aluminum extrusion profiles

,

profile aluminum extrusions



Champagne / Light Bronze Aluminum Window Extrusion Profiles , Elevator Frame Profile


Hentec Industrial Co.,Ltd is professional serves for Building doors and windows profiles, Railway, Cars with aluminum, IT computer and Mobile phone aluminum, Communications, Electrical, Mechanical, High-speed rail transportation, Refrigerated containers etc., special aluminum profiles for 15 years .

Description:



1.Adopt 99.7% aluminum ingots as raw material.

2.Resonable price and good quality.

3.Payment terms:T/T,L/C

4.Terms for Delivery:Ex-work,FOB,CIF

5.Samples of aluminum profile sent within 10 days

6.Lead time is 15-20 days.



The surface treatment :

1) Mill Finished
2) Anodized: Silver, champagne, light bronze, dark bronze, black, light titanium, dark titanium. Usually the thickness of the film is 10 um.
3) Electrophoretic coated: Silver, champagne, bronze, black, light bronze, dark bronze.
4) Powder spray coated  Normal color, special color. Thickness: 60 to 80 um.
5) Fluorocarbon powder spray coated /PVDF Paint: Normal color, special color.
6) Drawbench
7) Steel polished
8) Wood grain coated /Wooden transfer: Imported paper, domestic paper.


Technical requirements


1) Standard: GB/75237-2004, Q/320281/PDWD-2008
2) Certification: ISO9001
3) OEM service offered
4) Material: Alloy 6063, 6061 or according to customer’ s choice
    Temper: T3, T4, T5, T6
5) Fabrication: 1. Milling; 2. Drilling; 3. Bending; 4. Cutting...
6) Window Accessories:  Using ECO friendly EPDM leather strap that would not age for a long time with a long service life.
7)MOQ: 1 ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.
8)FOB Port: Shanghai Port


Applications:

Sliding aluminum windows, also called aluminum sliding windows, are widely used as sliding closet windows, sliding cabinet windows, sliding bathroom windows, exterior sliding windows and sliding aluminum folding windows, and so on. They have beautiful appearance and smooth surface, and are wind proofing, water proofing, and anti-erosion.



Specifications:

1.Primary Technical Data

1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest


2)Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%


2. Specifications :

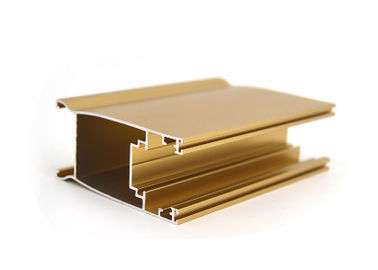

Champagne / Light Bronze Aluminium Extruded Profiles Elevator Frame 6063 6061 Mill Finished 0


Competitive Advantage:

1)Engineering design and support.
2)Aluminium profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and whole inspection before package.
4)Good performance, product warranty for 15 years.

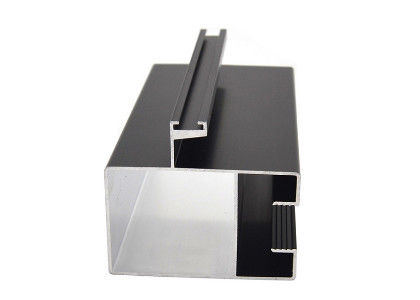

 Champagne / Light Bronze Aluminium Extruded Profiles Elevator Frame 6063 6061 Mill Finished 1
