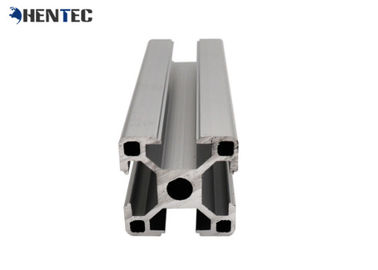

T Solt Industrial Aluminium Profile System Assembly Production Line For Industry

T Solt Industrial Aluminium Profile System Assembly Production Line For Industry
T Solt Industrial Aluminium Profile System Assembly Production Line For Industry T Solt Industrial Aluminium Profile System Assembly Production Line For Industry

Large Image :  T Solt Industrial Aluminium Profile System Assembly Production Line For Industry

Product Details:
Place of Origin: China
Brand Name: HT
Certification: CA ,CE ,ISO14001:2004, ISO9001:2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Packaging Details: Ep paper ,kraft ,pallet
Delivery Time: 20days
Payment Terms: T/T ,L/C
Supply Ability: 100 000ton each month
Detailed Product Description
Product Name: Industrial Aluminium Profile Alloy: 6063
Material: Aluminum Suface Treatment: Fluorocarbon Powder Spray Coated /PVDF Paint, Drawbench,Steel Polished
Deep Process: Milling, Drilling, Bending,Cutting Temper: T4, T5, T6
High Light:

modular aluminium profile system

,

aluminium extrusion frame system



T Solt Industrial Aluminium Profile System Assembly Production Line for Industry



Item Aluminium extrusion profile for Industrial assembly production line
Material Aluminium 6000 series alloy, such as 6061, 6063, 6082 etc.
Temper T4, T5, T6 ,T66
Thickness General profile thickness:0.8-5.0mm; Anodized protection thickness: 8-25um; Powder coating color thickness: 40-120um.
Size 3m-6m per piece, or customized.
Shape Square, flat, round, hollow, oval, triangle, U-profile, L-profile, T-profile, H-profile, customized available.
Surface Treatment Mill-finish, anodized, powder coated, electrophoresis, wood grain, timber, PVDF paint, polishing, brushed.
Color Silver, champagne, black, bronze, gold, white or customized
Application Window and door with thermal break strips, curtain wall, glass wall, furniture, ceiling, kitchen, LED strip, transportation rail, vehicle, motor housing, machine, tent, solar panel, industrial profile, decoration profile etc.
Deep Process CNC, drilling, milling, cutting, tapping, welding, bending, assembling.
MOQ 500 kgs for each item, usually 13-15 tons for a 20GP, 25-28 tons for a 40HQ.
OEM service Drawing, sample or design service offer by customer.
Production Capacity 2400-3000 Metric tons monthly.
Brand Name Hentec
Certificatesand Standard ISO9001-2008
Guarantee Surface color can be stable for 10-20 years indoor using.
Packing Details Inside: pack with plastic protective film to protect each piece.
Outside: wrap to bundle by waterproof craft paper or EPE film, or customized
Delivery time Die developing and sample testing: 12-18 days .
Mass production: 25-30 days after confirming sample by buyer.
FOB Port Shanghai
Payment Terms T/T 30% for deposit, balance after the copy of BOL .
Settlement Terms Charge by final actual weight or by drawing theoretical weight.

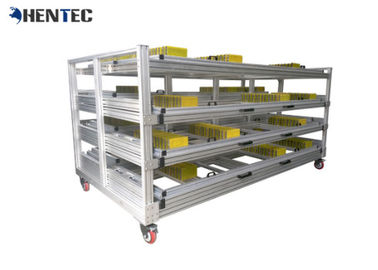

 T Solt Industrial Aluminium Profile System Assembly Production Line For Industry 0



Introduction Of Constmart Profile:


1. Material: 6063,6061,6060,6005,6005A,etc.
2. Temper: T5 or T6
3. Finish: Mill finish, anodizing, powder coating, electrophoresis, wooden transfer or pvdf/carbon-flouride coated, polishing, brushing, sand blasting
4. Various colors: Silver, bronze, black, gold, blue,grey, champagne, bright, etc.
5. Machining: Cutting, punching, drilling, tapping, milling, bending, welding, CNC etc.
6. Various in styles and sizes:
A) Aluminum alloy bars: 6000 series, normal material such as 6063,6005,6061,6060, special materials such as 6082 etc.
B) Aluminum profiles:
---General aluminum profiles (various shapes of pipes/tubes, angles, T or U shapes etc.)
--- Industrial aluminum profiles ( TV frames, Rim for bicycles and motorcycles, Heat sink profiles, Furniture, Ladder, Guide Rail, Leisure materials, Shower Room, Solar Module Frame, Motor Shell, Pipeline Integration etc.)
--- Construction aluminum profiles ( Aluminum doors& windows, Sliding Windows, JB50A Door Window, Curtain Wall Frame etc.)
7. Certification: ISO9001,SGS,ROHS,TUV
8. Strong technical development ability, can provide high intensity and high ductility aluminum profiles, to meet customers' different requirements.
9. OEM service available, customized design available
10. Surface available: Mill finish, Anodized, Powder Coating, Wooden transfering, electrophoresis, heat insulation, PVDF, and deep processing
11. Certificate: ISO9001, ISO14001





Applications:



Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.





T Solt Industrial Aluminium Profile System Assembly Production Line For Industry 1



Specifications:



1.Primary Technical Data



1)Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest



2)Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%





T Solt Industrial Aluminium Profile System Assembly Production Line For Industry 2





Competitive Advantage:



1)Engineering design and support.

2)Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.

3)High Quality system, strictly inspection during production and whole inspection before package.

4)Good performance, product warranty for 15 years.



T Solt Industrial Aluminium Profile System Assembly Production Line For Industry 3







FAQ For Saving Your Precious Time!



Q1: What's the thickness for anodizing? Can you do 15um?

A: Our normal thickness is about 10 um. Yes, we can do 15um and above.



Q2: What color you can do for powder coating? The thickness for powder coat?

A: We can do any color for powder coat as long as you can provide the color sample. Our normally powder coating thickness is 60-80um.



Q3: What's the delivery time for samples and mass production?

A: (1). 2-3 weeks to open the new moulds and make free samples.

(2). 3-4 weeks after receipt of deposit and confirmation of the order.



Q4: What's your MOQ?

A: Normally speaking, it's 1 ton .



Q5: What's payment terms?

A: Usually by T/T, 30% deposit and the balance paid before shipment.



Q6: What's the packing way?

A: Commonly we use plastic film and kraft paper, also we can make as per customers' requirements.
