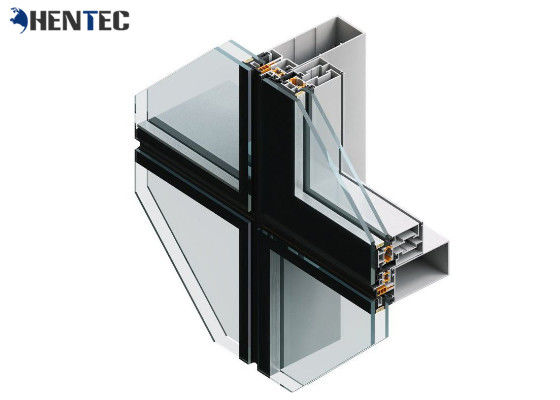

Powder Painted Aluminum Curtain Wall Profile , Aluminum Extrusion Profile

China Hentec Industry Co.,Ltd certification
China Hentec Industry Co.,Ltd certification
Thanks a lot for your support for more than 8 years ,we are really appreciate for the good quality of the products and the quality service .

—— James Scott

We have received the goods , they look perfect ,thanks for the help of Team Hentc .

—— Ane Unamuno

Le succès de ce nouveau projet dépend du support de l’équipe HENTEC en termes de technologie de traitement. Merci à HENTEC de nous aider à contrôler les coûts de manière efficace et à répondre à nos exigences en termes de haute qualité. Nous nous réjouissons de notre future collaboration!

—— Yann Pauwels

I'm Online Chat Now

Powder Painted Aluminum Curtain Wall Profile , Aluminum Extrusion Profile

Powder Painted Aluminum Curtain Wall Profile , Aluminum Extrusion Profile
Powder Painted Aluminum Curtain Wall Profile , Aluminum Extrusion Profile Powder Painted Aluminum Curtain Wall Profile , Aluminum Extrusion Profile

Large Image :  Powder Painted Aluminum Curtain Wall Profile , Aluminum Extrusion Profile

Product Details:
Place of Origin: China
Brand Name: HENTEC
Certification: CA ,CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Packaging Details: Packed with EP paper ,kraft and pallet
Delivery Time: 20days
Payment Terms: T/T or L/C
Supply Ability: 100 000 ton each month
Detailed Product Description
Product Name: Aluminum Curtain Wall Profile Alloy: 6063,6061,6005
Material: Aluminum Suface Treatment: Mill Finished,Anodized,etc
Temper: T4, T5, T6 ,T66 Application: Buildings,commercial,industrial
High Light:

profile aluminum extrusions

,

extruded aluminium profiles



Powder Painted Aluminum Curtain Wall Profile , Aluminum Extrusion Profile





Anodizing / Powder Painted Aluminum Curtain Wall Profile , With Finished Machining



Glass Curtain Walls for Building, Office, Shop Front/Aluminum Curtain Wall

Glass Curtain Walls
Light-weight, easy to install, in fashionable design, heat-insulation, noise-insulation

Aluminum Curtain Walls, Aluminum Curtain Walls, glass walls, Glass Curtain Wall
We are a professional manufacturer and experienced in processing and engineering. We can

Provide the curtain wall with high quality according to the customer's different design.



1. Alloy :6063,6061,6005 or according to customer’ s choice
2. Material:Aluminum
3. Suface Treatment: Powder Painted , Anodized ,Wood Transfer  , Electrophoresis
4. Deep process:  Milling, Drilling, Bending,Cutting.
5. Application:
The  aluminum curtain wall is quite popular as a cladding and exterior wall on all types of commercial, industrial, institutional and residential buildings.
6. Color:clear, satin, bronze, black, golden, silver, other multicolor
7. Temper:  T5, T6

8.Specification: Customizing is available as the customer offer us the section drawings.



Powder Painted Aluminum Curtain Wall Profile , Aluminum Extrusion Profile 0



Description:

Aluminum curtain wall profiles for construction application is visible.









Feature



Curtain wall systems with the function of energy-saving are available, including frame curtain walls, and hidden frame curtain wall. Curtain wall used for exterior decoration industrial buildings and villas, and more easy cleaning, energy-saving, and good air-tightness, simple structure, easy installation, good quality procession with high technological machines, beautiful and fashion design.





Applications



The glass and aluminum curtain wall is found in city centers on many new buildings and it is quite popular as a cladding and exterior wall on all types of commercial, industrial, institutional and residential buildings. The curtain wall is characterized with coloured vision and spandrel glass areas, a grid of aluminum caps and most recently with metal or stone spandrel covers (see Fig. 1 above). It is also combined with other types of cladding systems such as precast, brick or stone to create attractive and durable building facades.

The curtain wall comprises a complete cladding and exterior wall system with the exception of the indoor finishes. It is generally assembled from aluminum frames, vision glass and spandrel glass (or metal or stone) panels to enclose a building from grade to the roof. It is available in three system types to include the stick built system, the unitized (or panel) system and the structural glazing system (capless vertical joints). The glass and aluminum curtain wall is designed to resist wind and earthquake loads, to limit air leakage, control vapour diffusion, prevent rain penetration, prevent surface and cavity condensation and limit excessive heat loss (or heat gain). It is further designed to resist noise and fire.





Powder Painted Aluminum Curtain Wall Profile , Aluminum Extrusion Profile 1





The stick built system



The oldest curtain wall type is the stick built system. It is a cladding and exterior wall system which is hung on the building structure from floor to floor. It is assembled from various components to include steel or aluminum anchors, mullions (vertical tubes), rails (horizontal mullions), vision glass, spandrel glass, insulation and metal back pans. In addition, there are various hardware components to include anchors, aluminum connectors, setting blocks, corner blocks, pressure plates, caps, gaskets and sealants.





The unitized curtain wall



A glass and aluminum curtain wall fabricated and installed as a panel system is referred to as a unitized curtain wall system. A unitized curtain wall will have the same components as a stick built curtain wall system. It will comprise aluminum mullions, an IGU and a spandrel panel mounted in a prefabricated aluminum frame. However, instead of assembling the glass and aluminum curtain wall in the field, most of the system components are assembled in a plant under controlled working conditions. This promotes quality assembly and allows for fabrication lead-time and rapid closure of the building.





Specifications:



1. Primary Technical Data



1) Chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Impurity

Al

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

0.15

Rest

6061

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.15

Rest

6060

0.3-0.6

0.1-0.3

0.1

0.1

0.35-0.6

-

0.15

0.1

0.15

Rest

6005

0.6-0.9

0.35

0.1

0.1

0.40-0.6

0.1

0.1

0.1

0.15

Rest



2) Mechanical property

  Alloy

Temper

Tensile strength

Yield strength

Elongation

6063

T5

≥ 160Mpa

≥ 110Mpa

≥ 8%

T6

≥ 205Mpa

≥ 180Mpa

≥ 8%

6061

T6

≥ 265Mpa

≥ 245Mpa

≥ 8%



2. Specifications :

HD120 series visible frame/hidden frame mi-hidden

Powder Painted Aluminum Curtain Wall Profile , Aluminum Extrusion Profile 2





Competitive Advantage:



1) Engineering design and support.

2) Aluminium profiles deeply processing:cutting,punching,drilling,milling,and fabricating.

3) High Quality system, strictly inspection during production and whole inspection before package.

4) Good performance, product warranty for 15 years.





Powder Painted Aluminum Curtain Wall Profile , Aluminum Extrusion Profile 3
