Product Details:
Payment & Shipping Terms:
|
| Product Name: | Aluminum Heatsink Extrusion Profiles | Alloy: | 6063,6061,6005 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized ,Electrophoretic Coated,Powder Spray Coated |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T4, T5, T6 ,T66 |
| High Light: | extruded aluminium profiles,aluminum extrusion profiles |
||

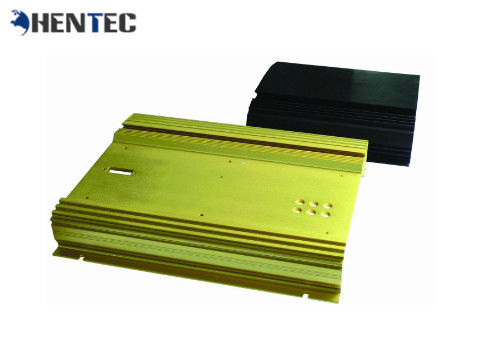

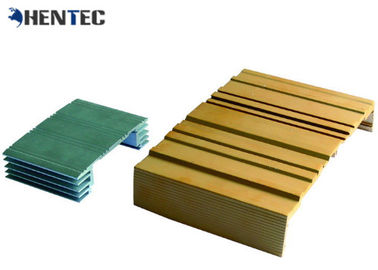

Electrical Cover / Enclosure Extruded Aluminum Extrusions For Electronics
1. Reliable quality (ISO9001:2008 certified).
2. Competitive prices with short lead-time for both tooling and parts, because we do everything in-house.
3. Effective and strong technical support and excellent sales services.
4. Sufficient production capacity (only 65% occupied).
5. Efficient communication (48-hour quote lead time).
6. Compliant with RoHS Test.
Products discription:
| Product Name | Electrical Cover / Enclosure Extruded Aluminum Extrusions For Electronics |
| Material | Aluminum Alloy |
| Type | Window & Door Aluminium Profile,Decoration Aluminium Profile,Heat Sink Aluminium Profile, Glass Wall Aluminium Profile,Transport Aluminium Profile,Industrial Aluminium Profile |
| Shape | Square,Flat,Angle,Round,T-Profile |
| Temper | T4,T5,T6 etc. |
| Specification | A. Alloy: 6063, 6060, 6061, 6005 B. State: T5/T6 C. Length: 1m-7m D. Normal Anodizing thickness: 8-20 micro E. Normal powder coating thickness: 60-100 micro F. Tensile strength: ≥ 16 mpa G. Yield strength: ≥ 110 mpa H. Extensibility: ≥ 8% I. Hardness(HW): ≥ 8 |
| Surface | Drawing, Polishing, Anodizing,Coating,Mirror etc... |
| Inspection | ISO,SGS and so on. |
| Application | 1. Architectural aluminium profiles (divided into doors and windows and curtain walls). 2. Radiator Aluminum Profile. 3. General industrial aluminium profiles: mainly used for industrial production and manufacturing, such as automation machinery and equipment, the framework of the cover, and companies according to their own mechanical equipment requirements custom-made die opening. 4. Aluminum Alloy Profile for Railway Vehicle Structure: Mainly used in the manufacture of Railway Vehicle Body. 5. Mounting aluminium profiles, making aluminium alloy picture frames, mounting various exhibitions and decorative paintings. |
| Packaging | 1. cases packed in wooden cases 2. paper packaging 3. plastic packing 4. foam packaging Packaging according to customer requirements or products |
| Delivery | 7-25days or According to the product |
| Payment | L/C,T/T |
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1. Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
2. Specifications:
Excellent material for smooth and subtle edges.
Elegant appearance.
Surface treatment: colorful anodized or electrostatic powder coated.
Suitable for constructions and other industrial purposes.
Customized surface finishes are welcome.
Competitive Advantage:
1.OEM and ODM are welcome
2.Strict inspection process
