Product Details:
Payment & Shipping Terms:
|
| Product Name: | Aluminum Profile System | Alloy: | 6063 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Fluorocarbon Powder Spray Coated /PVDF Paint, Drawbench,Steel Polished |
| Deep Process: | Milling, Drilling, Bending,Cutting | Temper: | T4, T5, T6 |
| High Light: | modular aluminium profile system,aluminium extrusion frame system |
||

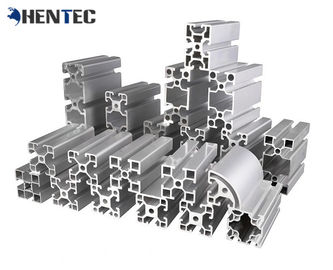

Size Customized Aluminium Profile System Assembly Stage / Aluminum Extrusion

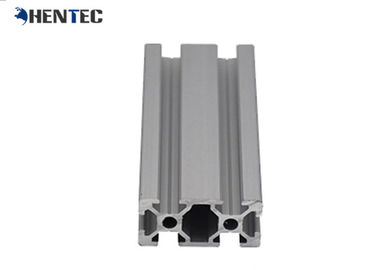

| Product Name | 40x40mm Industrial aluminium profile/ aluminum extrusion |
| Profile Material | 6063 aluminium alloy |
| Temper | T5 |
| Surface treatment | Mill finish, powder coating, anodizing, wooden grain coating, polishing, eletrophoresis, PVDF, sanding blasting, etc. |
| The option of Profile | 30/40/60/80/90/100 series etc. |
| Slot width | 6MM,8MM,10MM |
| Color | Natural silver anodised, can be customised. |
| Surface | Mill finish, Anodizeding, Sand Blasting, Powder coating, etc. |
| Deep processing | Cutting, Drilling, Treading, Bending, etc. |
| Application | Building, Industry, Machinery |
| Certification | ISO9001 |
| OEM & ODM | Acceptable |
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1.Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2)Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
1)Engineering design and support.
2)Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and whole inspection before package.
4)Good performance, product warranty for 15 years.
